HBL20403 - Hubbell Locking Single Receptacle 30A 600V AC 20A 250V DC 3-Pole 4-Wire Grounding Flush Mount Black

HBL20403

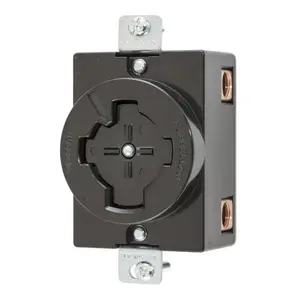

HBL20403 is a Hubbell Locking Single Receptacle designed for heavy-duty industrial use with multi-phase grounding.

This industrial-grade receptacle features a 3-pole, 4-wire grounding configuration rated for 30A at 600V AC and 20A at 250V DC. It is a flush mount device made of black thermoplastic with screw terminal connections. The device is Non-NEMA rated and certified UL 498 for current interrupting at full rated current, with a dielectric strength of 2000V minimum. It operates in temperatures from -40°C to 75°C and offers IP30 moisture resistance suitable for indoor dry environments.

Key Specifications
• Amperage Rating: 30A AC / 20A DC
• Voltage Rating: 600V AC / 250V DC
• Number of Poles: 3
• Number of Wires: 4-Wire Grounding
• Mounting Type: Flush Mount, Screw
• Material: Thermoplastic (Black)
• Terminal Connection: Screw Terminals
• Interrupt Rating: Certified for full rated current interrupting
• Dielectric Strength: 2000V minimum
• Standards: UL 498
• Environmental Rating: IP30
• Operating Temperature: -40°C to 75°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

For receptacles/inlets; model specific

Specifications

• Part Number: HBL20403
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Industrial device cover / plate
• Family : HBL
• Voltage : 600 /250 DC

Product Data

• UPC : 783585017280
• GTIN : 00783585017280
• Dimensions : 3.28 in H x 1.94 in W x 1.75 in D 3.28 x 1.94 x 1.75 in
• Weight : 5.19
