Product Info
- Manufacturer:Hubbell
- Sub-Category:Industrial wiring device
Description
HBL1381I

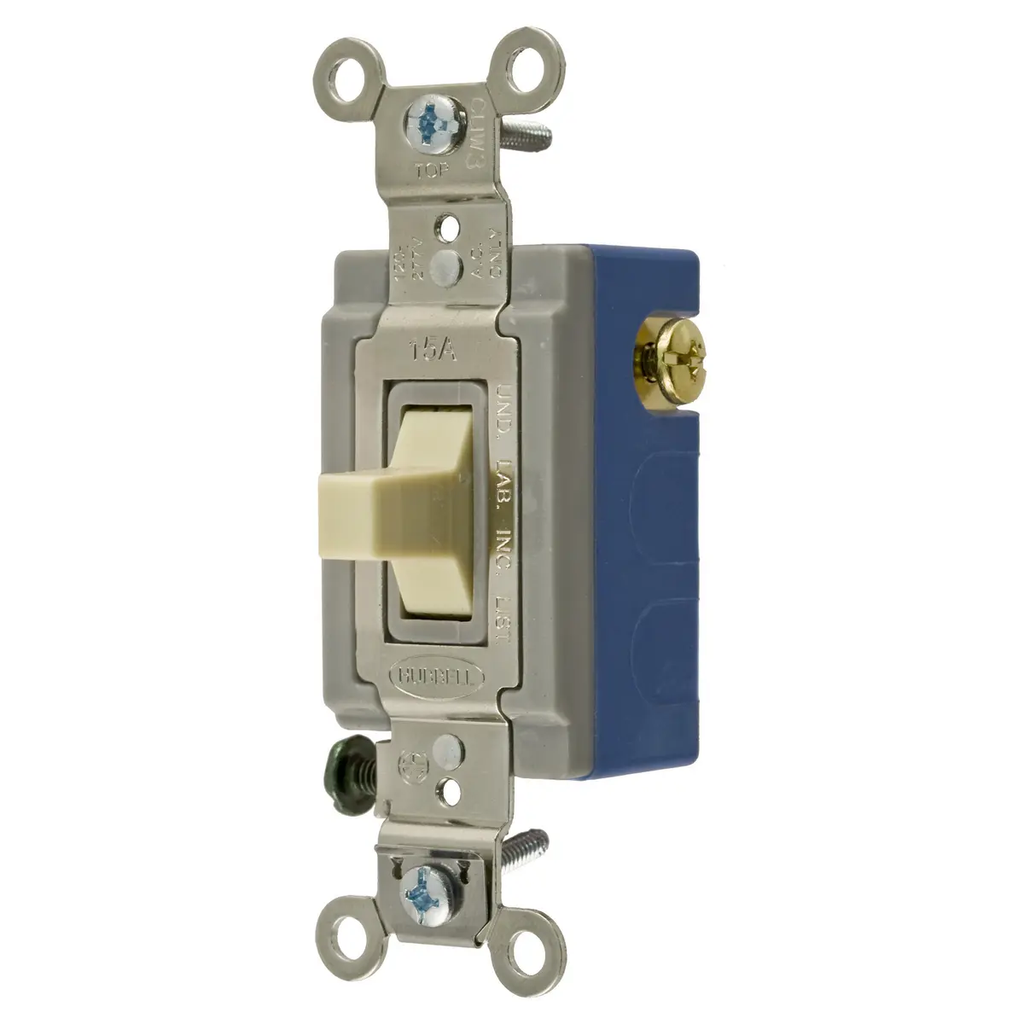

HBL1381I is an extra heavy duty industrial grade toggle switch by Hubbell designed for general purpose AC applications.
This 3-position, single pole double throw (SPDT) toggle switch features a nylon toggle and silver alloy contacts, rated for 15 amps and 120-277 volts AC. It supports back and side wiring with #14 to #10 AWG wire sizes and is screw mountable. The switch is UL listed, withstands 1500V AC dielectric strength, and operates reliably between -40°C to 75°C. It offers a positive snap action with a center off position and is built for durability in industrial environments.
- Key Specifications
- Amperage Rating: 15 A
- Voltage Rating: 120-277 VAC
- Number of Poles: Single Pole
- Contact Configuration: SPDT (Single Pole Double Throw)
- Mounting Type: Screw Mount
- Toggle Material: Nylon
- Terminal Screws: Brass
- Wire Size: #14 AWG to #10 AWG
- Operating Temperature: -40°C to 75°C
- Dielectric Strength: 1500V AC minimum for 1 minute
- Standards: UL Listed, NEMA WD1
- Action: Positive Snap, Center Off
- Part Number: HBL1381I
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Industrial wiring device
- Voltage : 120 to 277
- UPC : 783585432526
- GTIN : 00783585432526
- Country of Origin : China
- Dimensions : 4.06 x 1.31 x 1.89 in
- Weight : 5.19
- Certification : UL20/CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
General purpose; see datasheet for specifics
