Product Info
- Manufacturer:Hubbell
- Sub-Category:Industrial toggle switch
Description

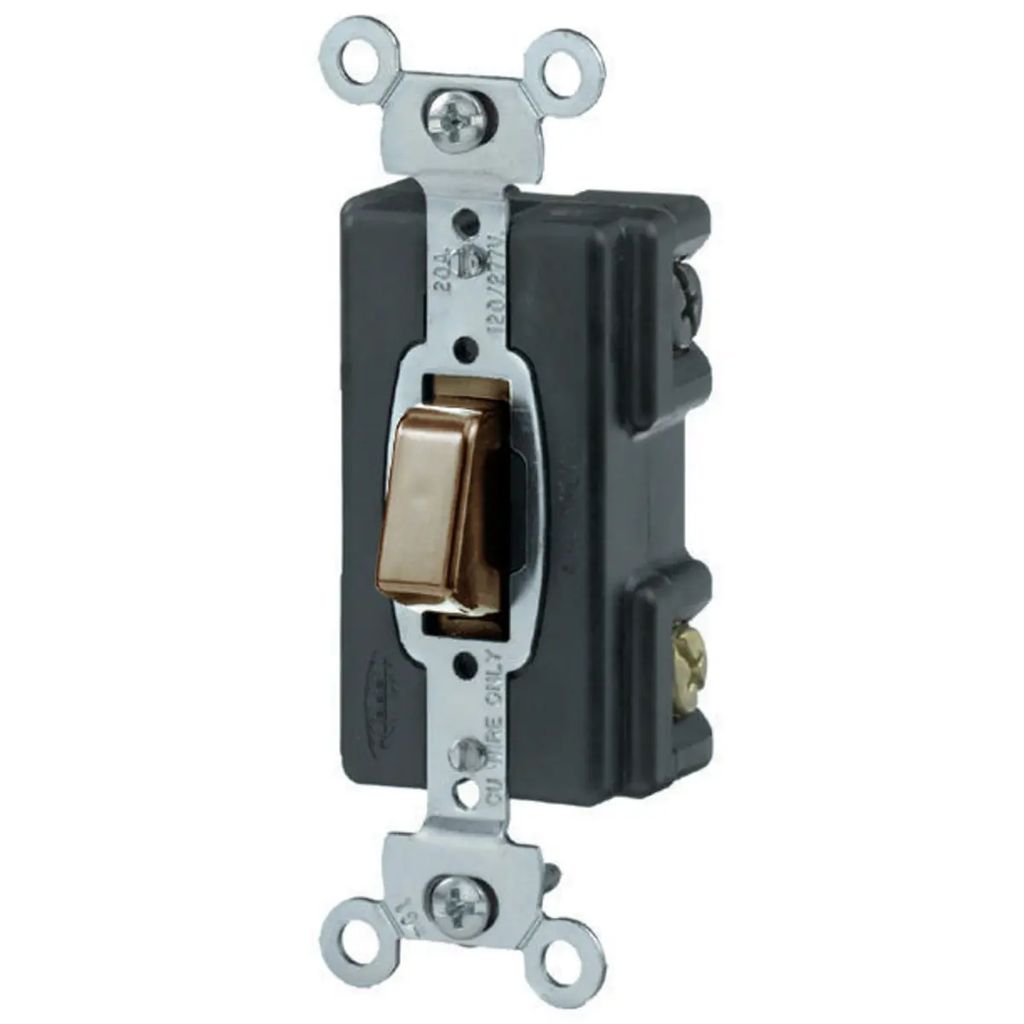

HBL1281
HBL1281 is a Hubbell industrial grade single pole AC toggle press switch rated for 20 amps and 120-277 volts AC. It features a durable thermoplastic body and side wired screw terminals.This general purpose, standard 2-position toggle switch is designed for heavy duty industrial applications. It supports 1-pole operation with a momentary center off push button actuator. The switch is screw mountable and UL 20 Listed with Federal Specification WS896 compliance. It accommodates #14 to #10 AWG solid and stranded copper wire.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 120-277 VAC
- Number of Poles: 1
- Mounting Type: Screw Mount
- Terminal Connection: Side Wired Screw Terminals
- Material: Thermoplastic
- Actuator: Push Button, Momentary Center Off
- Standards: UL 20 Listed, Federal Specification WS896
- Operating Temperature: -40 to 167 °F
- Wire Range: #14 to #10 AWG Copper
- Color: Brown
- Weight: 0.19 lbs
Additional Information
Single/3-way/4-way options; ratings per model
Specifications
- Part Number: HBL1281
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Industrial toggle switch
- Section : Push button switch
- Voltage : 120 to 277
Product Data
- UPC : 783585016818
- GTIN : 00783585016818
- Dimensions : 3.28 x 1.5 x 1.45 in
- Weight : 0.3
