HBL1221PL - Hubbell 20A 120/277V AC Single Pole Industrial Grade Pilot Light Toggle Switch, Back and Side Wired, Red

HBL1221PL

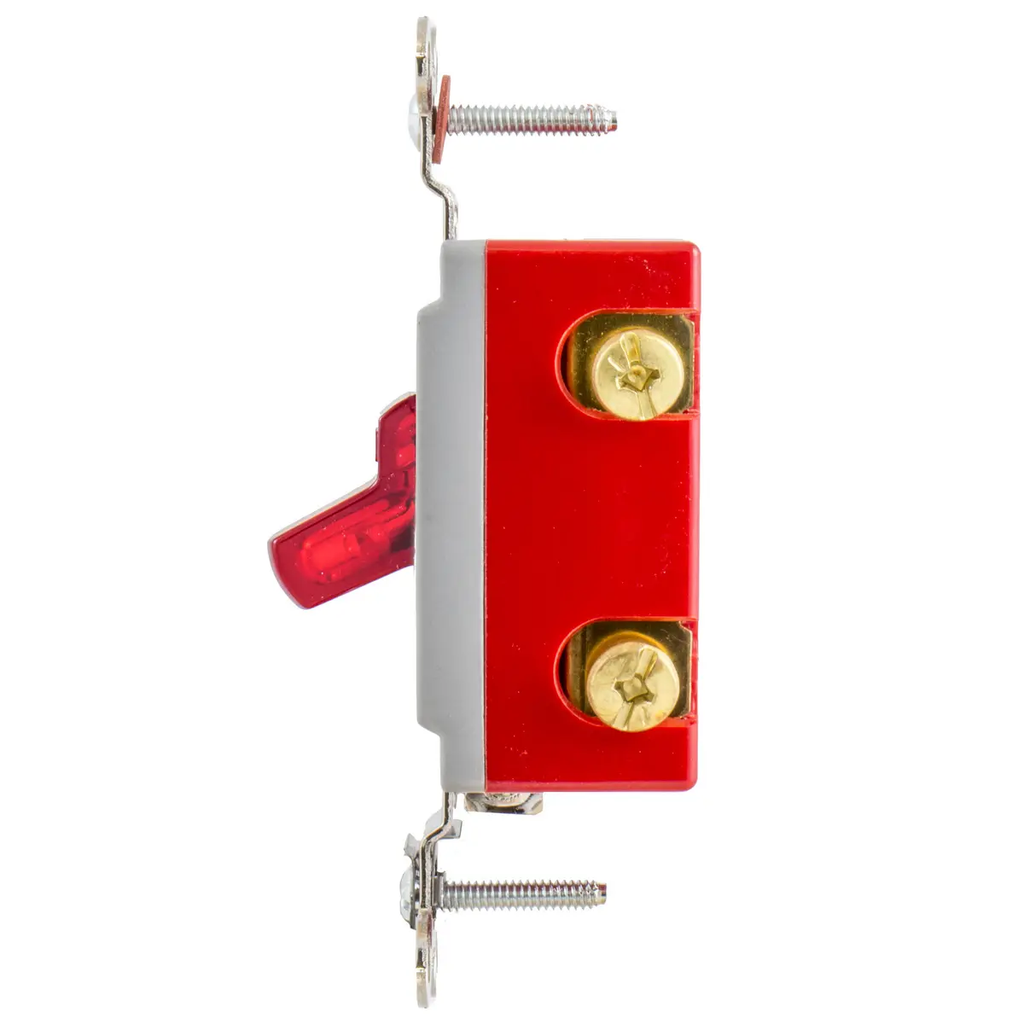

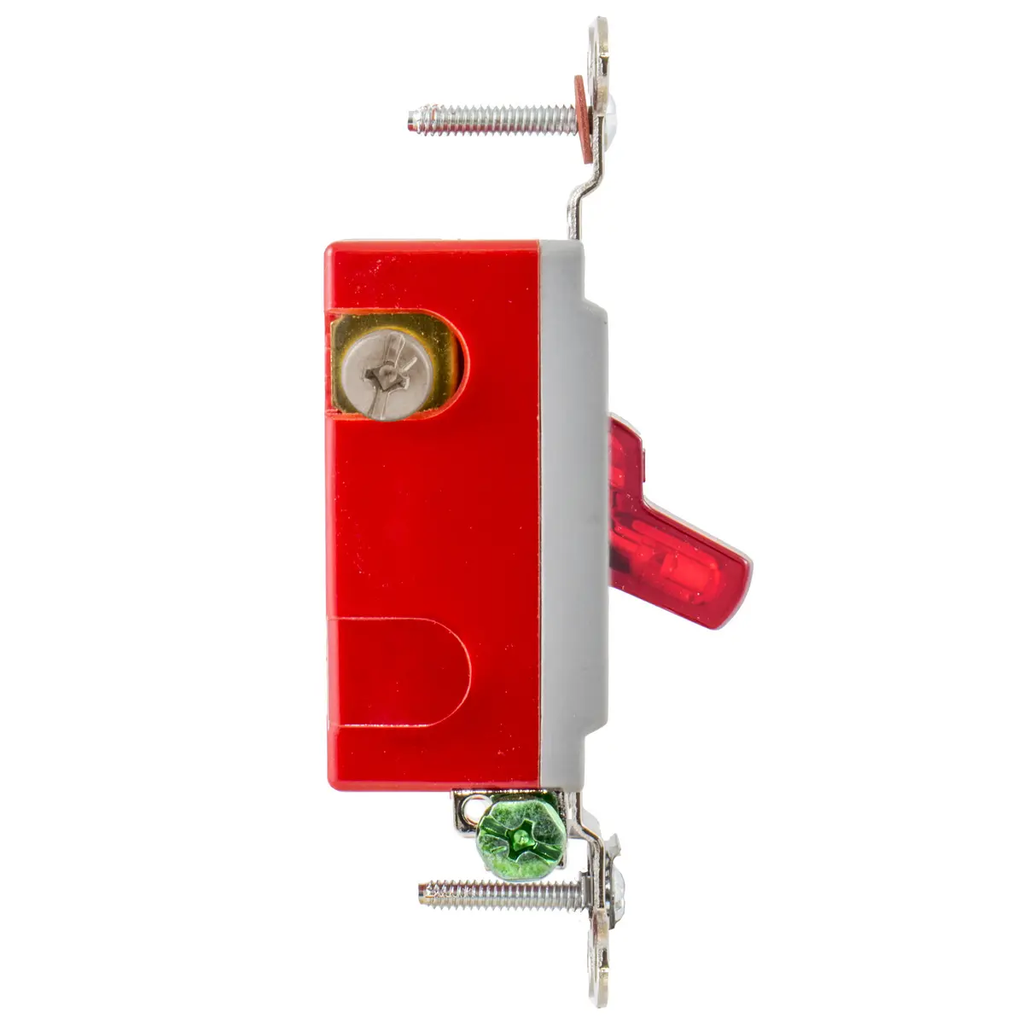

HBL1221PL is an industrial grade single pole pilot light toggle switch designed for heavy-duty applications. This switch features a red toggle and built-in pilot light that illuminates when the load is on, providing clear visual status. Rated for 20A at 120/277V AC, it is suitable for general purpose AC circuits and offers reliable performance in demanding environments. The switch is back and side wired for flexible installation and includes large brass binding head screws for secure connections. Abuse-resistant nylon toggle and strip gauge for accurate wiring enhance durability and ease of use. Engineered for industrial use, the HBL1221PL switch is built to withstand harsh conditions with a maximum continuous temperature of 75°C and a minimum of -40°C. The switch is rated to withstand 1500V AC for one minute and features a maximum temperature rise of 30°C at rated current. UL 94V-2 flammability rating ensures safety in industrial settings.

• Part Number: HBL1221PL
• Manufacturer: Hubbell
• Amperage: 20A
• Voltage: 120/277V AC
• Poles: Single Pole
• Mounting Type: Back and Side Wired
• Interrupt Rating: 1500V AC minimum for 1 minute
• Series/Frame: Extra Heavy Duty
• Operating Temperature: -40°C to 75°C
• Temperature Rise: 30°C maximum at rated current
• Flammability Rating: UL 94V-2
• Wire Size: 14-10 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Single/3-way/4-way options; ratings per model

Specifications

• Part Number: HBL1221PL
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Industrial toggle switch
• Voltage : 120 to 277 120/277

Product Data

• UPC : 783585431468
• GTIN : 00783585431468
• Dimensions : 4.06 in L x 1.31 in W x 1.86 in H 4.06 x 1.31 x 1.86 in
• Weight : 1
