Product Info
- Manufacturer:Hubbell
- Sub-Category:Industrial toggle switch
Description
HBL1201

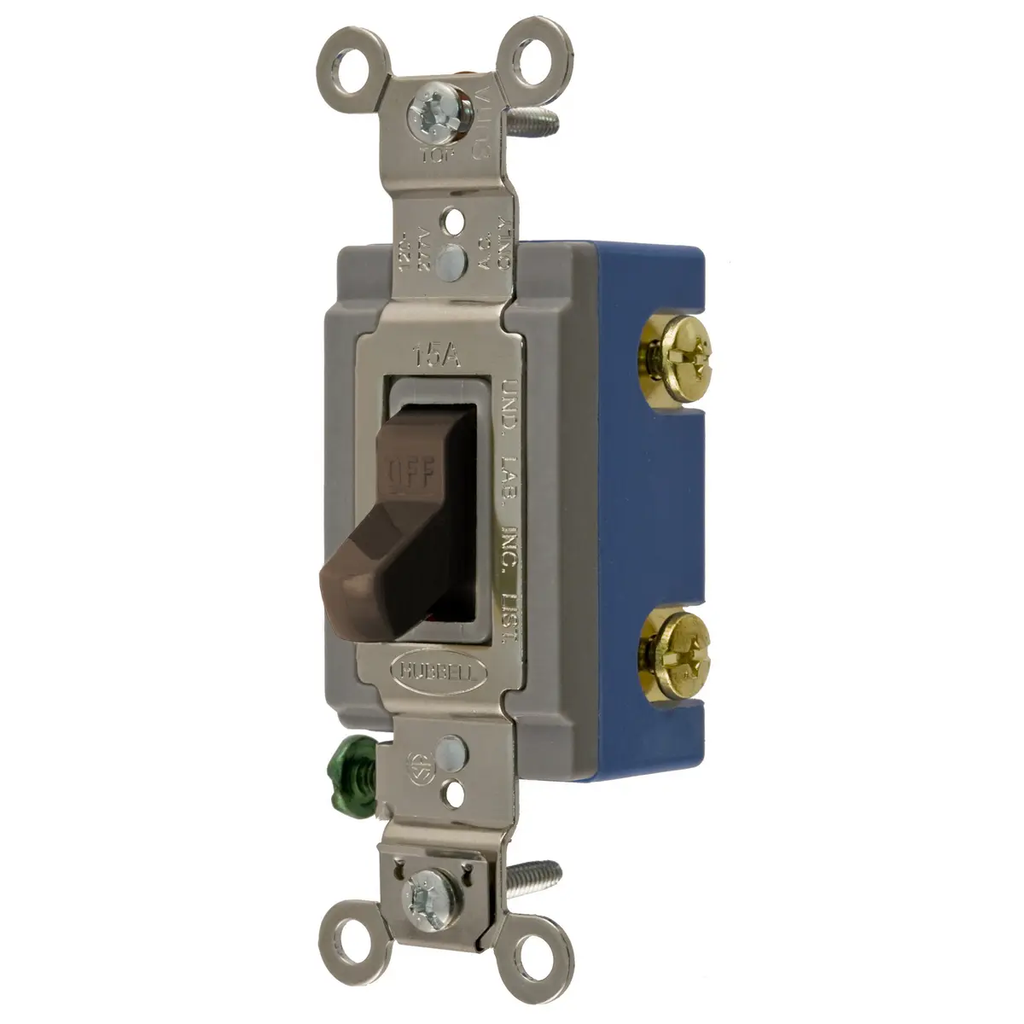

HBL1201 is an extra heavy duty single pole toggle switch rated for 15 amps and 120-277 volts AC. It is designed for industrial and general purpose applications.HBL1201 features a thermoset base and toggle, silver alloy contacts, and a stainless steel automatic grounding clip for reliable grounding continuity. It supports back and side wiring with #14 to #10 AWG wire sizes and withstands 1500V AC dielectric strength for one minute. The switch is UL listed and rated for a maximum continuous operating temperature of 75°C and minimum -40°C.
- Key Specifications
- Amperage Rating: 15 A
- Voltage Rating: 120-277 VAC
- Number of Poles: Single Pole
- Style: Toggle
- Connectivity: Back and Side Wired
- Dielectric Strength: 1500V AC minimum for 1 minute
- Material: Thermoset base and toggle, silver alloy contacts
- Grounding: Stainless steel automatic grounding clip
- Operating Temperature: -40°C to 75°C
- UL Listed
- Wire Size: #14 AWG to #10 AWG
- Operating Cycles: 50,000
Additional Information
Single/3-way/4-way options; ratings per model
Specifications
- Part Number: HBL1201
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Industrial toggle switch
- Family : HBL
- Voltage : 120 to 277 120 to 277 120/277
Product Data
- UPC : 783585430003
- GTIN : 00783585430003
- Dimensions : 4.06 in L x 1.31 in W x 1.87 in H 4.06 x 1.31 x 1.87 4.06 x 1.31 x 1.87 in
- Weight : 0.2
