2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HB3B070

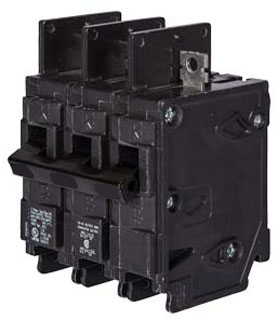

HB3B070 is a Siemens 3-pole circuit breaker rated for 70 amps and 240 volts AC, designed for reliable thermal magnetic protection.HB3B070 features a BQ frame with bolt-on mounting, a high interrupting capacity of 65kA at 240V, and long time and instantaneous trip functions. It includes load side lug terminals and a non-interchangeable trip unit for enhanced safety and performance.
- Manufacturer: Siemens
- Amperage: 70A
- Voltage: 240V AC
- Poles: 3
- Frame Type: BQ
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 240V
- Trip Unit: Thermal Magnetic, Long Time and Instantaneous
- Load Side Lug Terminals
- Non-Interchangeable Trip
- High Interrupting Capacity
- 3 Phase
Specifications
- Part Number: HB3B070
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : HBQ
- Voltage : 240
- Amperage : 70
- Phase : 3
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643111318
- GTIN : 00783643111318
- Country of Origin : Mexico
- Dimensions : 2.756 x 2.756 x 3.937 inch
- Weight : 1.124
