Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HB2B100

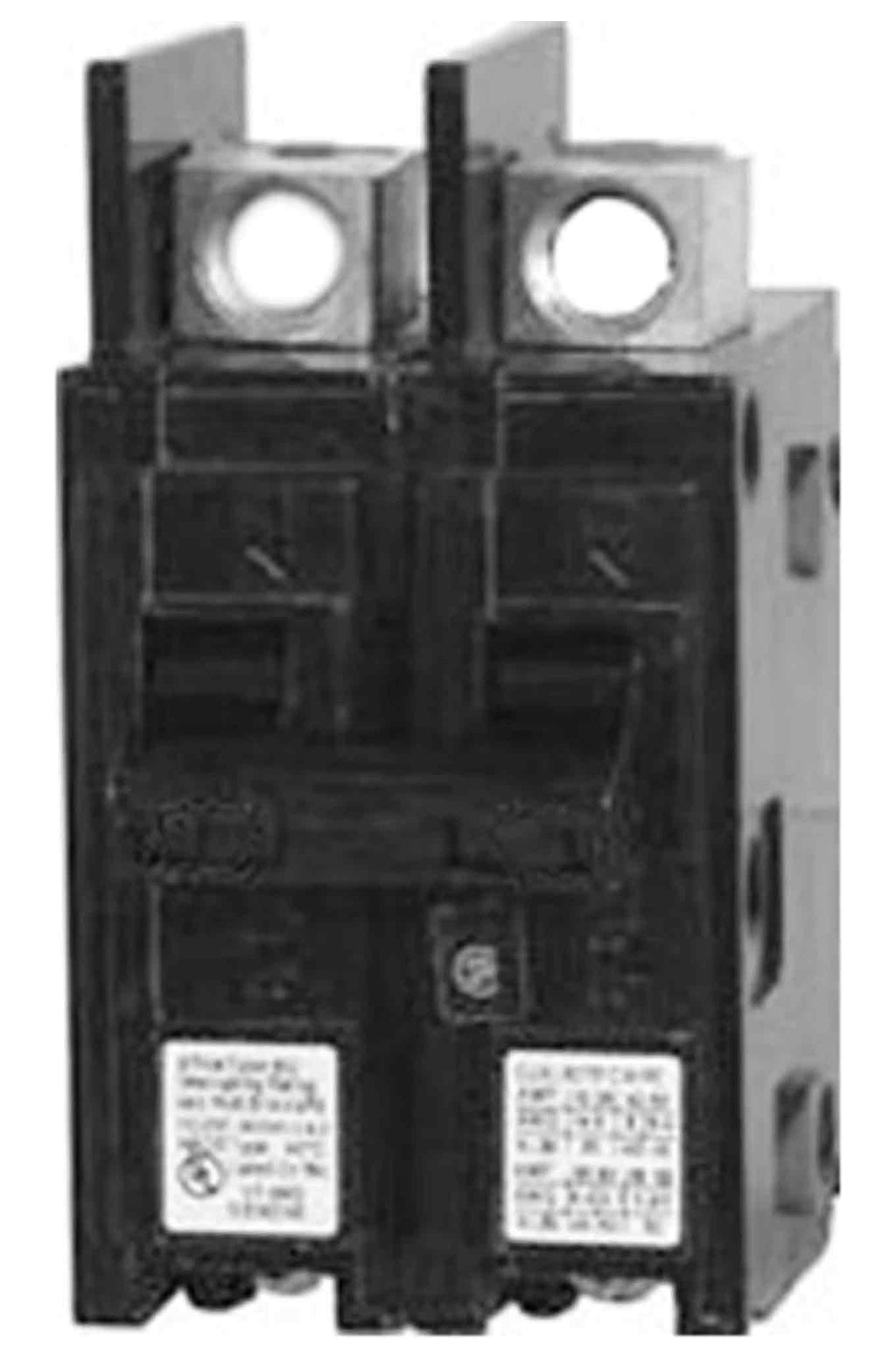

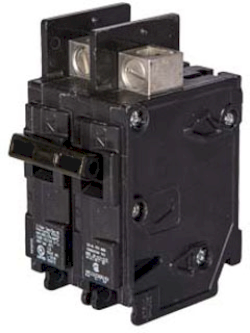

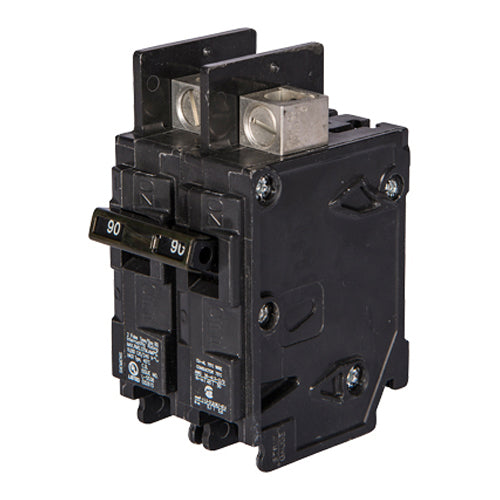

HB2B100 is a Siemens 2-pole molded case circuit breaker rated for 100 amps and 120/240 volts AC with a thermal magnetic trip unit.This Siemens HB2B100 breaker features a BQ frame, bolt-on mounting, and a high interrupting rating of 65 kA at 240 volts. It provides reliable protection with long time and instantaneous trip functions, suitable for low voltage applications. The breaker includes load side lug terminals and meets industry certifications for safety and performance.
- Amperage: 100A
- Voltage: 120/240 VAC
- Poles: 2
- Frame Type: BQ
- Mounting Type: Bolt-On
- Interrupting Rating: 65 kA at 240V
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Load Side Lug Terminals
- Non-Interchangeable Trip
- Certifications: Industry standard compliant
Specifications
- Part Number: HB2B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : HBQ
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643111240
- GTIN : 00783643111240
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 1.969 inch
- Weight : 0.728
