Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HB2B030

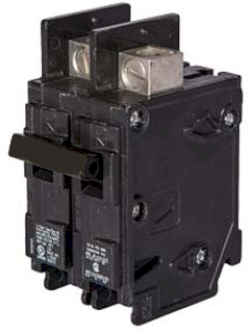

HB2B030 is a Siemens 2-pole molded case circuit breaker designed for general purpose circuit protection with a 30 amp rating and 240 volt capacity.HB2B030 features a thermal magnetic trip unit with long time and instantaneous trip functions, a BQ frame, and a bolt-on mounting type. It offers a high interrupting rating of 65kA at 240 volts and includes load side lug terminals. This breaker is non-interchangeable and certified for reliable performance in low voltage applications.
- Manufacturer: Siemens
- Amperage: 30A
- Voltage Rating: 240V AC
- Poles: 2
- Frame Type: BQ
- Mounting Type: Bolt-On
- Interrupt Rating (AIC): 65kA @ 240V
- Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
- Phase: Single Phase
- Terminal Type: Load Side Lug
- Non-Interchangeable Trip
- Certifications: UL Listed (implied by Siemens MCCB standards)
Specifications
- Part Number: HB2B030
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : HBQ
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643111189
- GTIN : 00783643111189
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 3.937 inch
- Weight : 1.102
