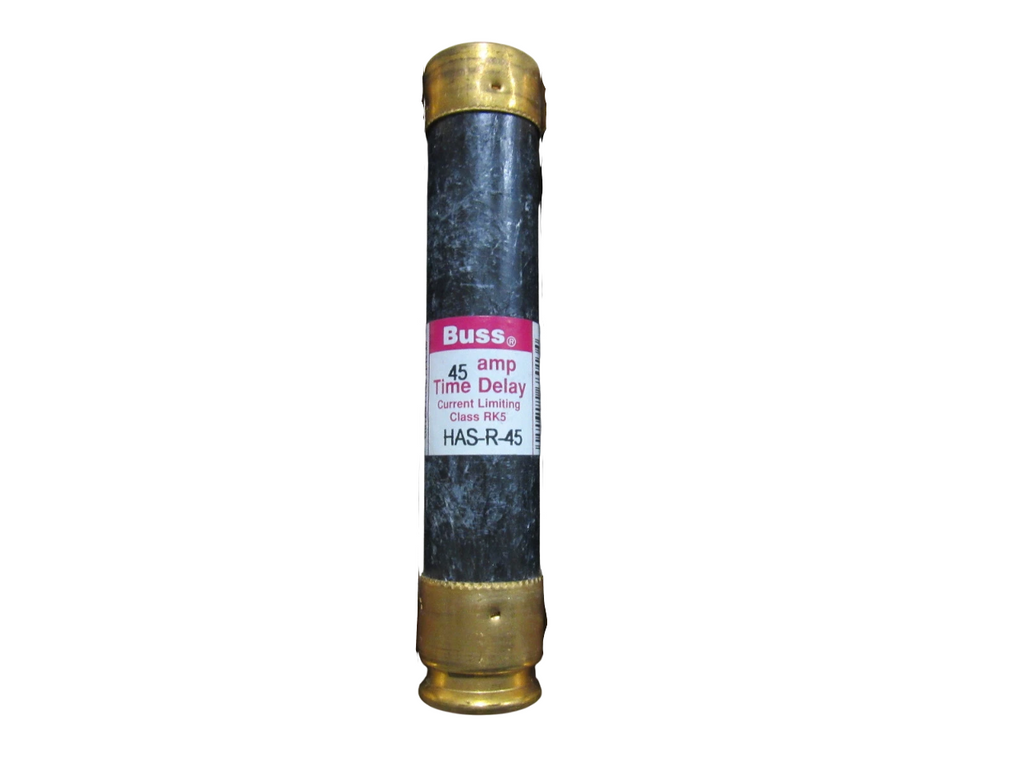

HAS-R-45 - Eaton Bussmann Class RK5 Time-Delay Dual-Element Fuse 45A 600Vac 250Vdc

HAS-R-45

HAS-R-45 is an Eaton Bussmann Class RK5 time-delay, dual-element fuse designed for reliable circuit protection.This fuse features a 45 ampere rating with a voltage rating of 600 Vac and 250 Vdc. It provides current limiting protection with a high interrupting rating of 200 kA at 600 Vac and 20 kA at 250 Vdc. The fuse is non-indicating with ferrule end connections and offers a response time of approximately 10 seconds at 500% overload. It is CE marked for compliance.

Key Specifications
• Amperage: 45 A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Rating: 200 kA at 600 Vac, 20 kA at 250 Vdc
• Class: RK5
• Type: Time-delay, dual-element
• Fuse Indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% overload
• Compliance: CE Marked
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HAS-R-45
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Voltage : 600
• Amperage : 45
• AIC rating : 200kA@600V
• Connection : Ferrule
• Class Rating : RK5
• Barrels : 1



Product Data

• Weight : 0.15
