Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
HAS-R-40

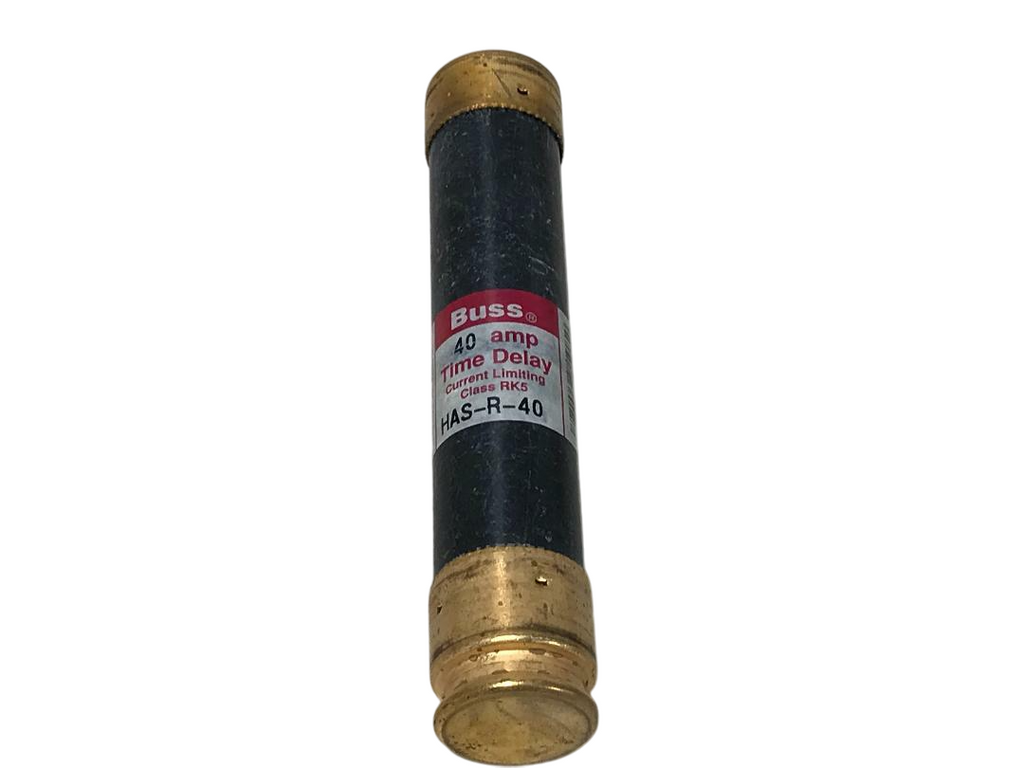

HAS-R-40 is an Eaton Bussmann Series Class RK5 time-delay fuse rated for 40 amperes and 600 volts AC. It is designed for reliable current limiting and circuit protection in industrial applications.This fuse features a dual-element, time-delay design providing current limiting protection with a non-indicating ferrule end connection. It has an interrupting rating of 200 kA at 600 Vac and 20 kA at 250 Vdc, suitable for high fault current environments. The fuse complies with CE marking standards and offers a response time of approximately 10 seconds at 500% overload.
- Amperage Rating: 40 A
- Voltage Rating: 600 Vac, 250 Vdc
- Interrupting Rating: 200 kA at 600 Vac, 20 kA at 250 Vdc
- Class: RK5
- Time-Delay, Dual-Element
- Non-Indicating
- Connection: Ferrule end x ferrule end
- CE Marked
Specifications
- Part Number: HAS-R-40
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Connection : Ferrule
- Class Rating : RK5
- Barrels : 1
Product Data
- Weight : 0.15
