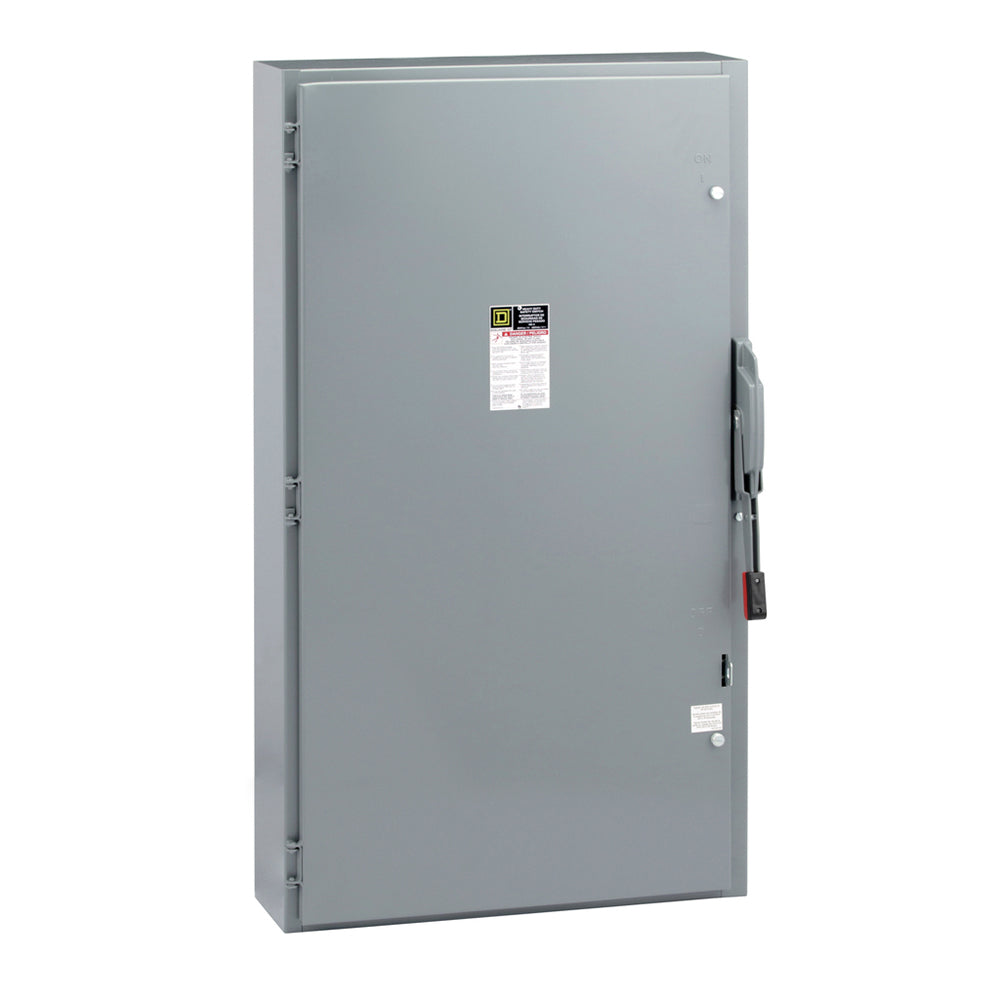

H465 - Square D 400A 600V 4-Pole Heavy Duty Fusible Safety Switch NEMA 1

H465

H465 is a heavy duty fusible safety switch from Square D designed for reliable power isolation and protection.This switch features a 400 ampere current rating, 600 volt AC/DC system voltage, and a 4-pole configuration. It is constructed with a steel enclosure rated NEMA 1 for indoor use. The device is fusible with Class H/J/K/L/R fuses compatible, supports up to 350 horsepower, and includes lug-type electrical connections. It is UL listed and suitable for surface mounting.

• Amperage: 400A
• Voltage: 600 VAC/DC
• Poles: 4
• Mounting Type: Surface
• Interrupt Rating: 10 kA (H or K), 200 kA (R, J, or L)
• Series/Frame: Heavy Duty
• Trip Unit: Fusible
• Enclosure: Steel, NEMA 1
• Horsepower Rating: 350 HP
• Certifications: UL Listed
• Electrical Connection: Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H465
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 4
• AIC rating : 200kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Fuse Class : R
• Wire : 4
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Protection : Solid State
• Compatible Frames : ED

Product Data

• UPC : 785901452294
• GTIN : 0078590101558
• Country of Origin : Mexico
• Dimensions : 50.25 in (1276.35 mm) x 33.88 in (860.55 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 260
