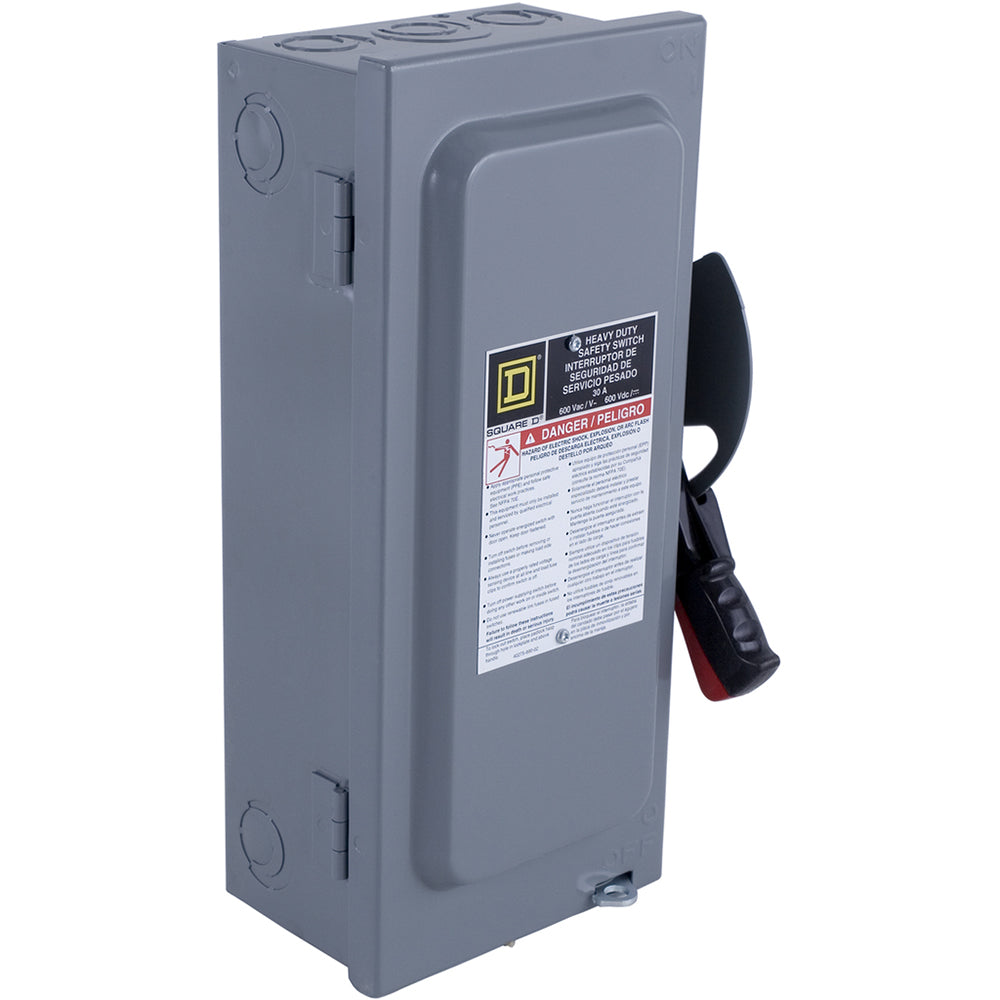

H463 - Schneider Electric 100A 600VAC/VDC Fusible Heavy Duty Safety Switch 4 Poles NEMA 1

H463

H463 is a Schneider Electric heavy duty fusible safety switch rated for 100 amperes and 600 VAC/VDC with 4 poles and NEMA 1 enclosure.

This switch features a single throw contact form, surface mounting, and is suitable for industrial and commercial applications. It supports 50 hp at 600 VAC 2-phase, 75 hp at 600 VAC 3-phase, and 30 hp at 600 VDC. The enclosure is painted cold rolled steel with a temperature rating from -22 to 104 degrees Fahrenheit. It has a short circuit current rating from 10 to 200 kA and uses lug-type terminals.

Key Specifications
• Amperage: 100 A
• Voltage: 600 VAC/VDC
• Poles: 4
• Mounting Type: Surface mount
• Interrupt Rating: 10 to 200 kA
• Series/Frame: F5
• Trip Unit: Fusible
• Enclosure Type: NEMA 1
• Horsepower Ratings: 50 hp at 600 VAC 2-phase, 75 hp at 600 VAC 3-phase, 30 hp at 600 VDC
• Material: Painted cold rolled steel
• Temperature Rating: -22 to 104 °F
• Terminal Type: Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H463
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Parts & Accessories
• Family : Series E
• Voltage : 600
• Amperage : 535
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : DIN
• Functions : LI - Long-Time and Instantaneous
• Diameter : 2
• Class Rating : E
• Wire : 3
• Nema Rating : NEMA 1
• Protection : Solid State
• Compatible Frames : NSX

Product Data

• UPC : 78590148249
• GTIN : 785901482499
• Country of Origin : United States
• Dimensions : 20.5 in (520.7 mm) x 16.13 in (409.70 mm) x 6.85 in (173.99 mm) (Height x Width x Depth)
• Weight : 38.239
