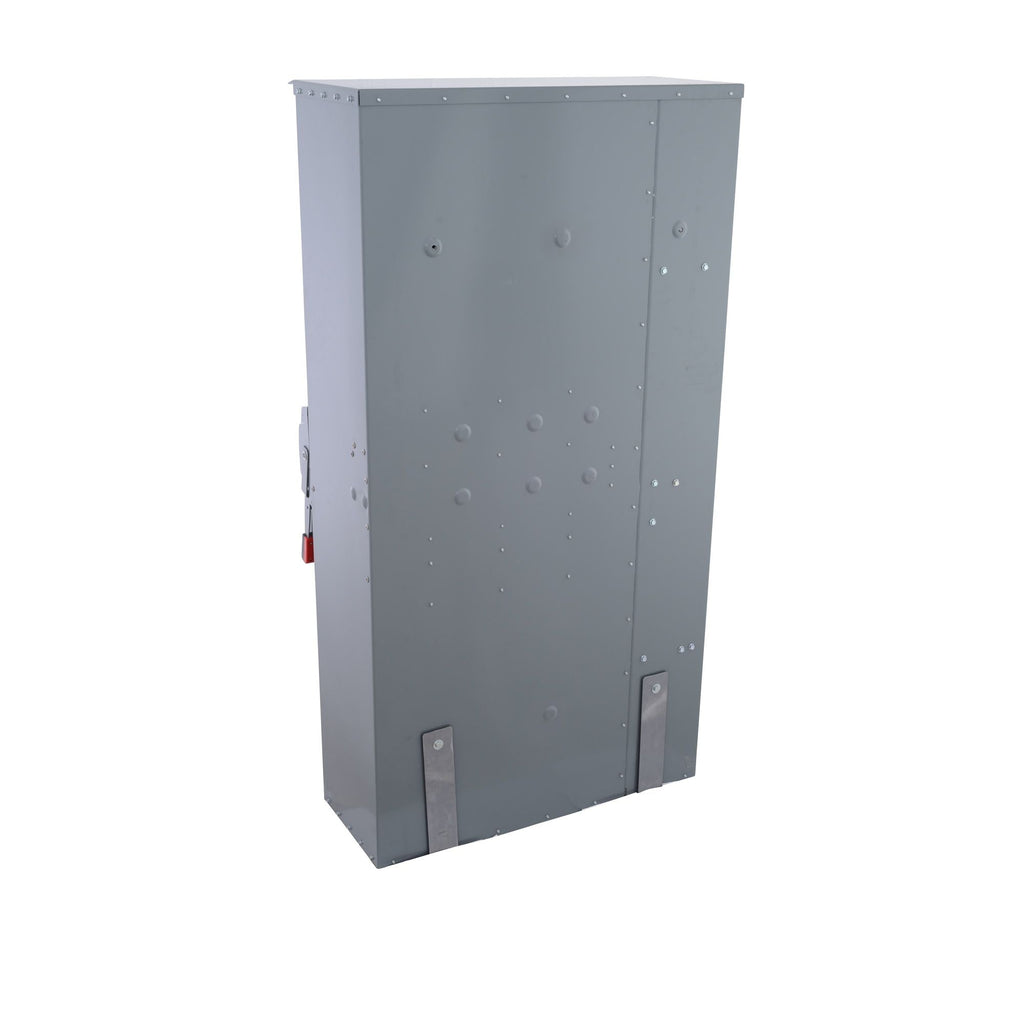

H368NR - Square D 1200A 600V 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R

H368NR

H368NR is a Square D heavy duty fusible safety switch designed for 1200 amp, 600 volt applications with a 3-pole configuration and NEMA 3R enclosure.This switch features a single throw mechanism with a galvannealed steel enclosure, suitable for outdoor use. It supports Class L and R fuses, has a 200kA interrupt rating at 600V, and includes a factory-installed neutral. The switch offers visible blade indication, quick make/break operation, and a handle lock-off provision for multiple padlocks. Its rainproof design and tangential knockouts facilitate conduit installation.

• Amperage Rating: 1200 A
• Voltage Rating: 600 VAC/VDC
• Poles: 3
• Mounting Type: Heavy Duty Safety Switch
• Interrupt Rating: 200 kA at 600 V
• Series/Frame: Series E, Type H
• Trip Unit: Fusible, accepts Class L and R fuses
• Enclosure: NEMA 3R, galvannealed steel
• Handle lock-off provision for multiple padlocks
• Visible blade position indication
• Dimensions: 69.13" H x 36.62" W x 17.75" D
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H368NR
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600 AC/DC
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R,L
• Nema Rating : NEMA 3R

Product Data

• UPC : 785901442479
• GTIN : 00785901442479
• Country of Origin : Mexico
• Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
• Weight : 382 lb
• Certification : UL Listed
