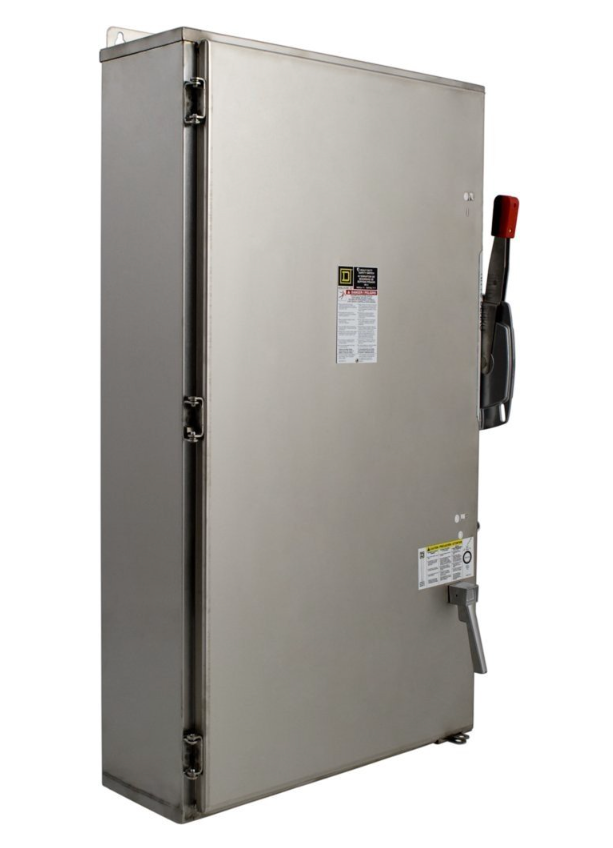

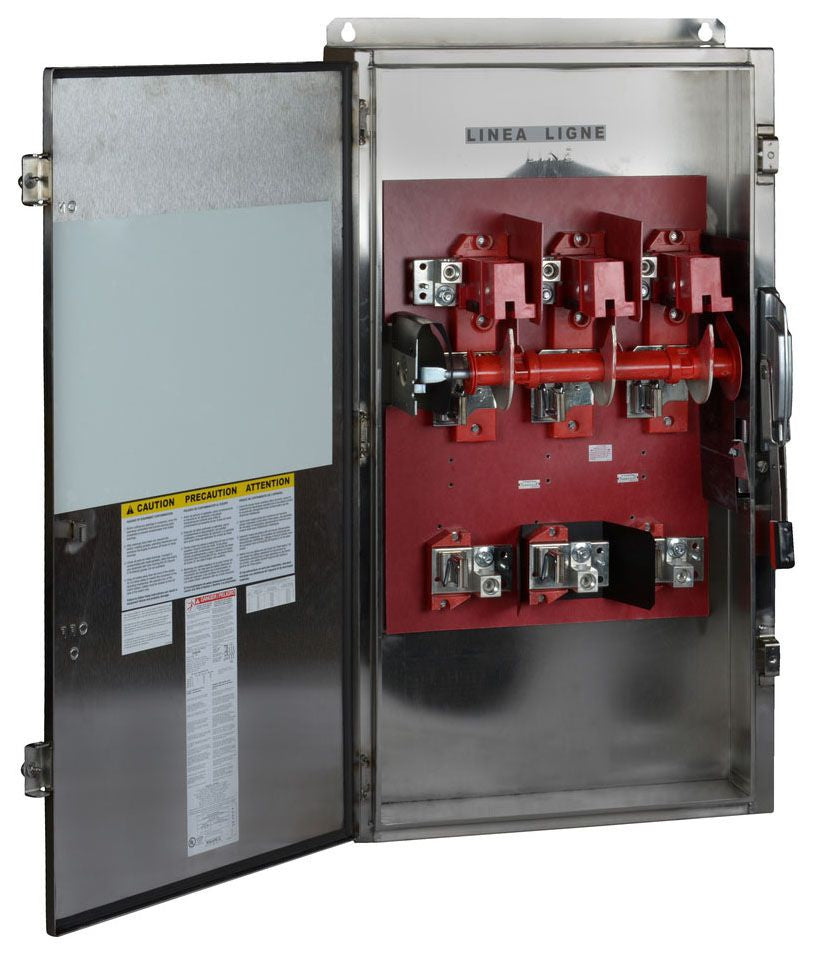

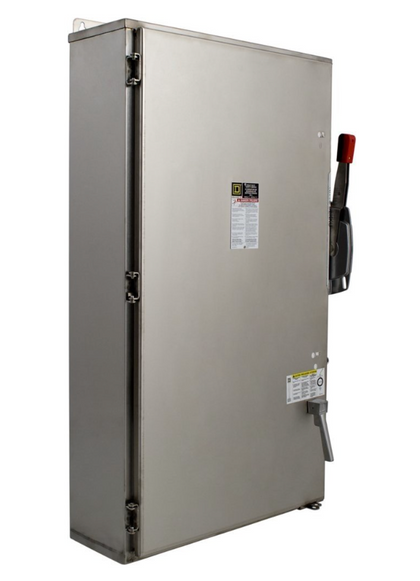

H366DS - Square D 600A 600V 3-Pole Fusible Heavy Duty Safety Switch NEMA 4X Stainless Steel

H366DS

H366DS is a heavy duty 3-pole fusible safety switch from Square D designed for 600 Amp, 600 Volt applications with a stainless steel enclosure.H366DS features a single throw handle, NEMA 4/4X/3/3R/12 rated stainless steel enclosure, and a 200kA interrupt rating at 600V AC. It is surface mounted and UL 98 listed, suitable for industrial, commercial, and outdoor use with robust mechanical endurance exceeding NEMA standards.

• Amperage: 600A
• Voltage: 600V AC/DC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 200kA @ 600V
• Enclosure Material: 304 Stainless Steel
• NEMA Rating: 3/3R/4/4X/12
• Frame Type: H
• Trip Unit: Fusible
• Standards: UL 98, California Proposition 65
• Handle Type: Single Throw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H366DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 5

Product Data

• UPC : 785901259435
• GTIN : 00785901259435
• Country of Origin : Mexico
• Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 165.999 lb
