H365DS - Square D 400A 600V 3-Pole Fusible Heavy Duty Safety Switch, NEMA 4/4X/5, 304 Stainless Steel Enclosure, Class H/J/K/L/R, Surface Mount

H365DS

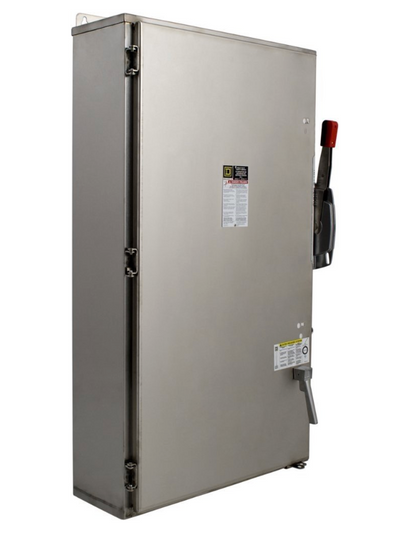

H365DS is a Square D heavy duty, fusible safety switch designed for demanding commercial and industrial applications.

This 3-pole, single throw safety switch features a 400A current rating, 600V maximum voltage, and is housed in a durable 304 stainless steel enclosure rated for NEMA 4, 4X, and 5 environments. It is surface mounted, accepts wire sizes from #1/0 to 750 kcmil (Al/Cu), and is suitable for both indoor and outdoor use. The switch is UL listed and provides robust short circuit protection with a rating of 10kA (Class H/K) up to 200kA (Class R/J). No factory-installed neutral or electrical interlock is included.

Key Specifications

• Amperage: 400A
• Voltage: 600V AC/DC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 10kA (Class H/K), 200kA (Class R/J)
• Series/Frame: H Series
• Trip Unit: Not applicable (fusible disconnect)
• Certifications: UL Listed
• Enclosure: 304 Stainless Steel, NEMA 4/4X/5
• Duty: Heavy Duty
• Wire Size: #1/0 to 750 kcmil (Al/Cu)
• Action: Single Throw
• Factory Neutral: No

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H365DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 5

Product Data

• UPC : 785901195900
• GTIN : 00785901195900
• Country of Origin : Mexico
• Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 185.001 lb
• Certification : UL listed
