Product Info
- Manufacturer: Square D
- Sub-Category: Disconnect
Description
H365

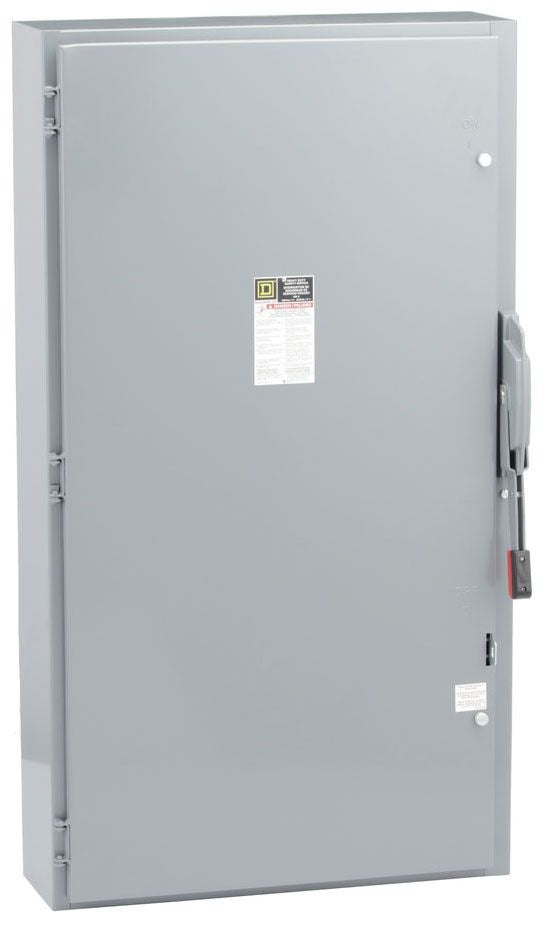

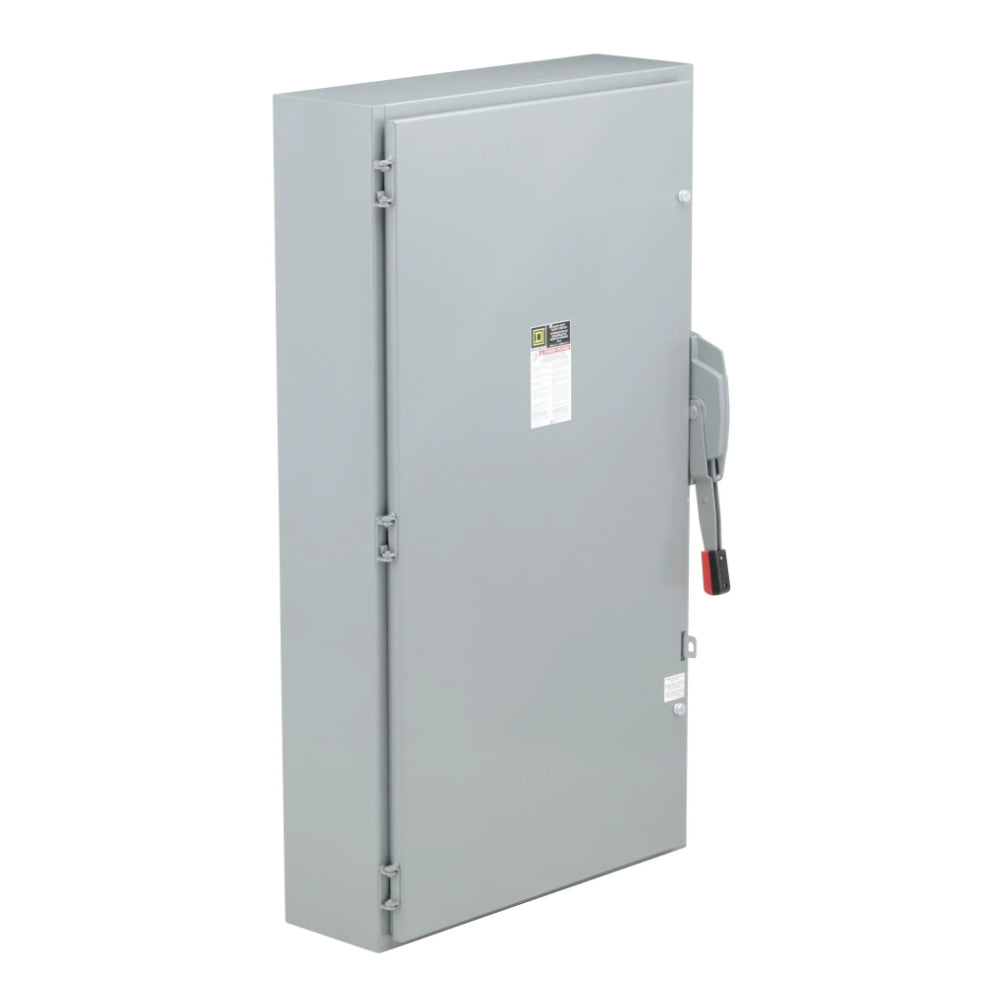

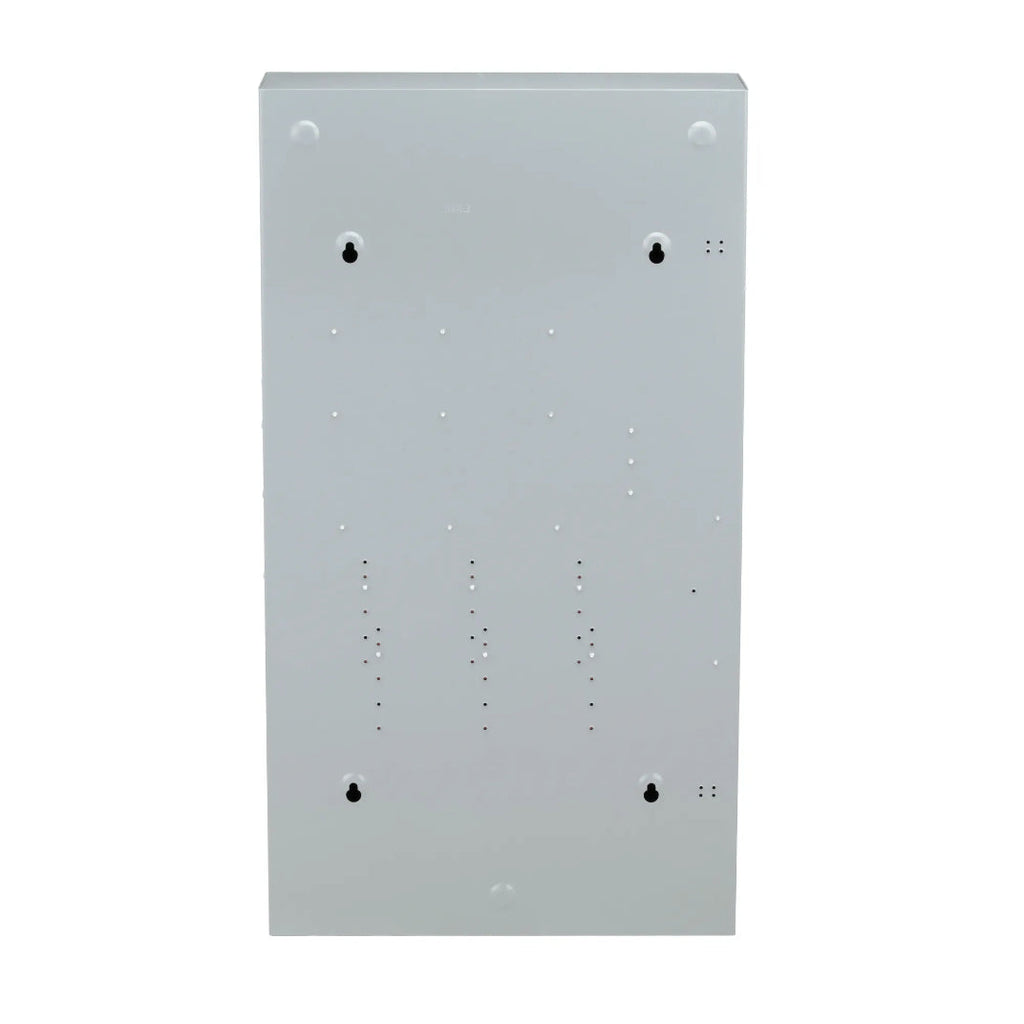

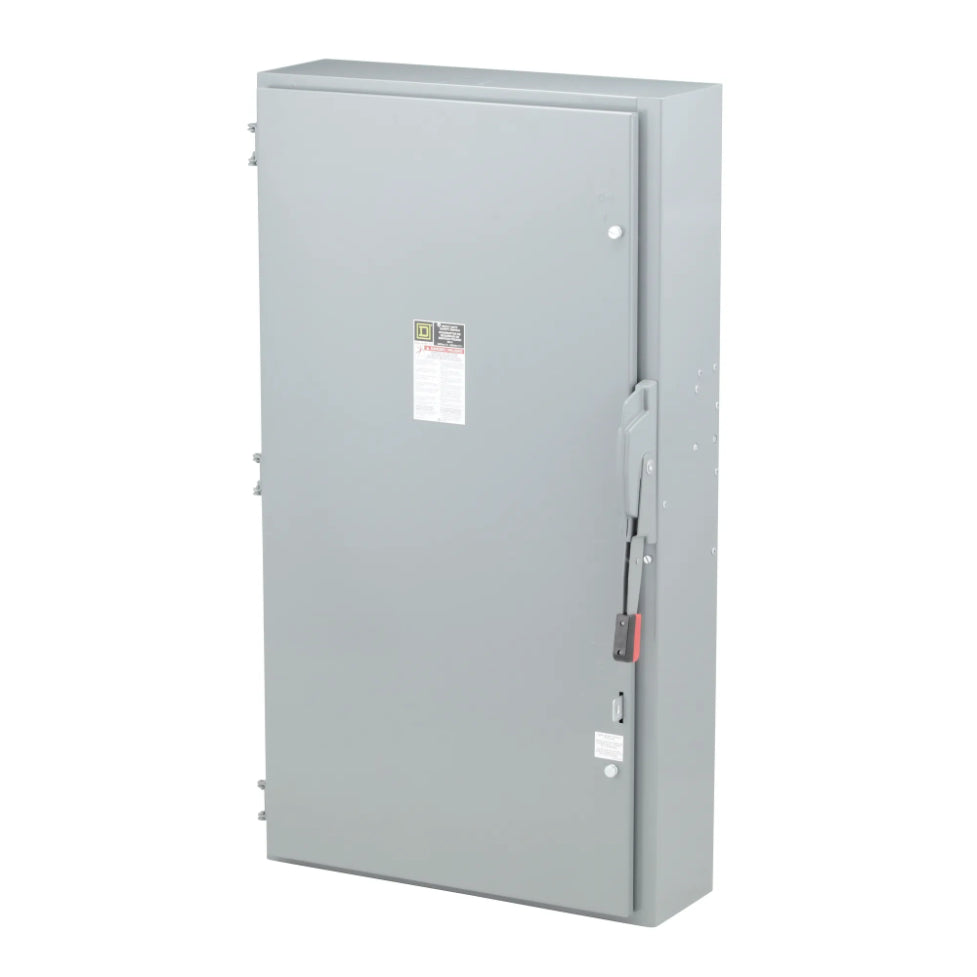

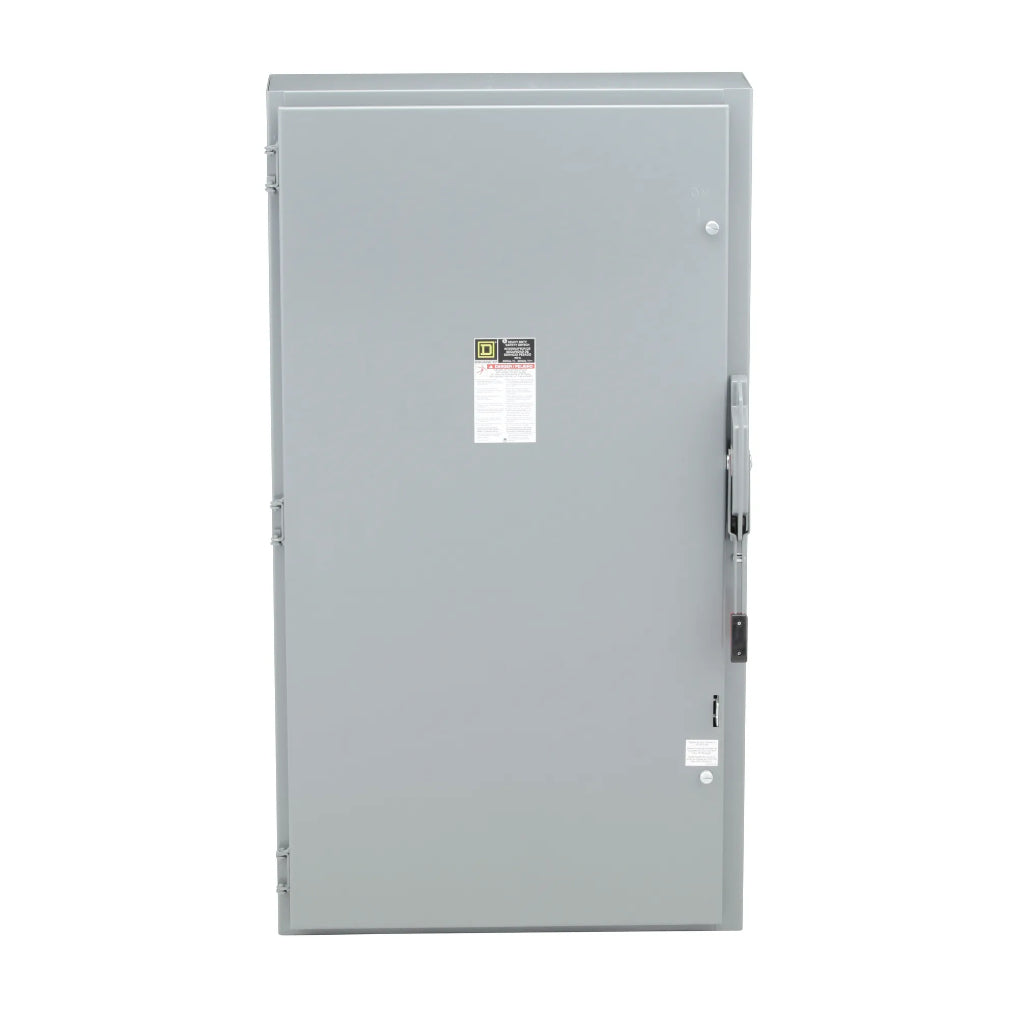

The Square D H365 is a 3 phase 3 pole 600 Volt 400 Amp H type Disconnect Switch. This switch has a Nema rating of 1 and an AIC rating of 200kA@600V. The H365 is a single switch configuration and uses class R, J, H, and K fuses. Suitable for use as service entrance equipment.
Specifications
- Part Number: H365
- Manufacturers: Square D
- Sub-Category: Disconnect
- UPC: 785901482192
- GTIN: 00785901882145
- Poles: 3
- Phase: 3
- Voltage: 600
- Amperage: 400
- AIC Rating: 200kA@600V
- Wire size: AWG 1/0 to 750KCmil Copper or Aluminum
- Family: Series E
- Type: H
- Certification: UL
- Dimensions: Depth 10.13 in (257.30 mm) Width 27.63 in (701.80 mm) Height 50.25 in (1276.35 mm)
- Weight: 221.96 lb
