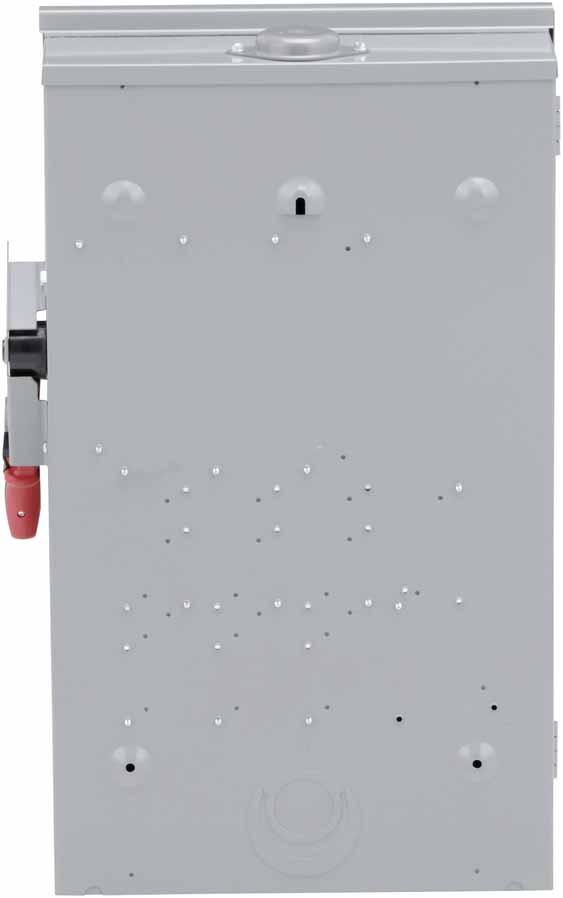

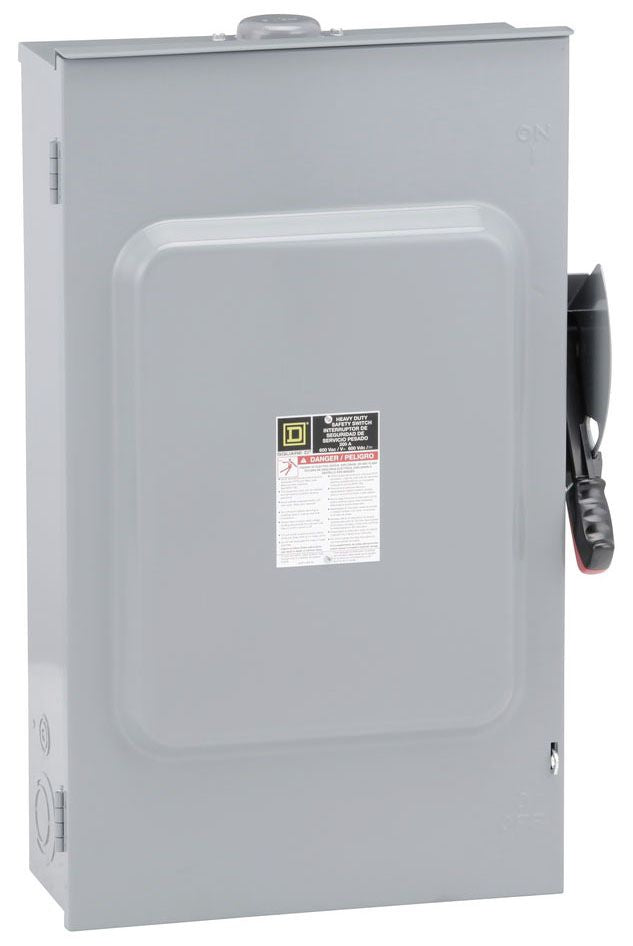

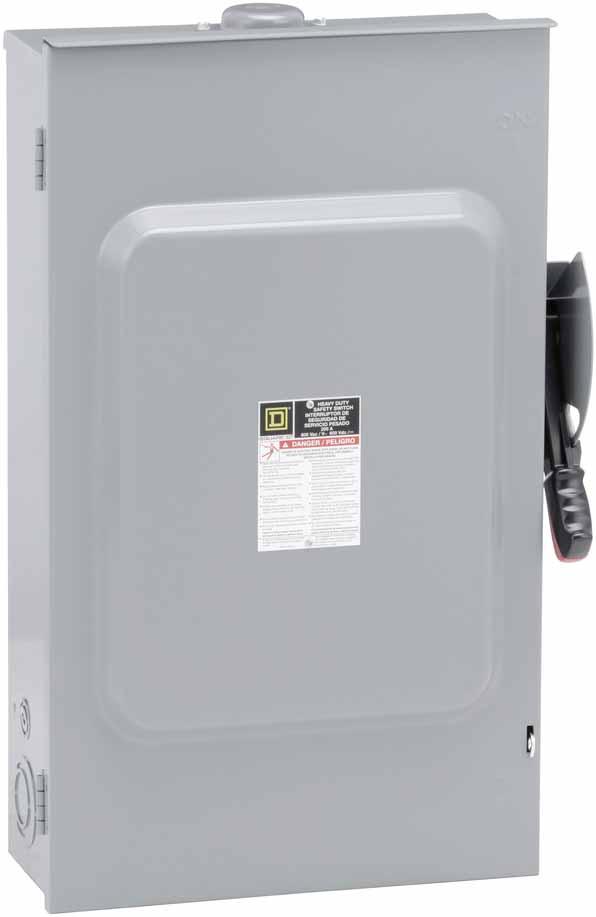

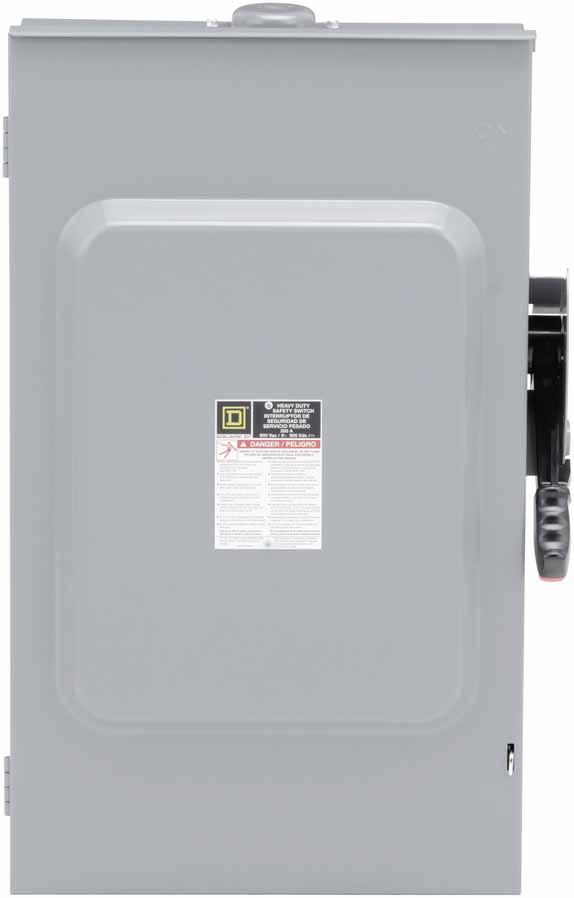

H364RB - Square D 200A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R

H364RB

H364RB is a Square D heavy duty fusible safety switch designed for 200 amp, 600 volt applications with 3 poles and NEMA 3R rainproof enclosure.This switch features a fusible disconnect type with a 3-wire, 3-pole configuration suitable for heavy industrial and commercial use. It has a 200kA interrupt rating at 600V, galvannealed steel construction, and lug-type terminals supporting wire sizes from #6 to 250 AWG/kcmil (Al/Cu). The enclosure is rated NEMA 3R for rainproof and sleet/ice proof indoor/outdoor use. It is UL listed and designed for surface mounting.

Key Specifications
• Amperage: 200A
• Voltage: 600V AC/DC
• Poles: 3-Pole
• Mounting Type: Surface Mount
• Interrupt Rating: 200kA at 600V
• Series/Frame: H Type
• Trip Unit: Fusible
• Enclosure Rating: NEMA 3R
• Enclosure Material: Galvannealed Steel
• Terminal Type: Lugs
• Wire Size Range: #6 to 250 AWG/kcmil (Al/Cu)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H364RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R

Product Data

• UPC : 785901482710
• GTIN : 00785901482710
• Dimensions : 29.25 in (742.95 mm) x 18.63 in (473.20 mm) x 8.5 in (215.9 mm) (Height x Width x Depth)
• Weight : 45.9 lb
• Certification : UL Listed
