Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H361RBVW

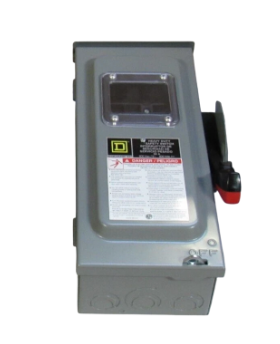

H361RBVW is a Square D heavy duty fusible safety switch designed for reliable power disconnect in commercial and industrial applications.This 3-pole switch features a 30 ampere rating and 600 volt maximum voltage, suitable for heavy duty use with a NEMA 3R rainproof and sleet/ice proof enclosure. It mounts on the surface and uses lug terminals compatible with #12 to #6 AWG aluminum or #14 to #6 AWG copper wiring. The switch has a 10kA short circuit current rating and is UL listed for safety and performance.
- Manufacturer: Square D
- Part Number: H361RBVW
- Amperage: 30A
- Voltage Rating: 600V AC
- Number of Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 10kA
- Enclosure Type: Rainproof, Sleet/Ice Proof
- Enclosure Rating: NEMA 3R
- Terminal Type: Lugs
- Duty Type: Heavy Duty
- Fusible: Yes
- Certifications: UL Listed
Specifications
- Part Number: H361RBVW
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Compatible Frames : ED
Product Data
- Dimensions : 14.88 in (377.95 mm) x 7.55 in (191.77 mm) x 4.86 in (123.44 mm) (Height x Width x Depth)
- Weight : 10
