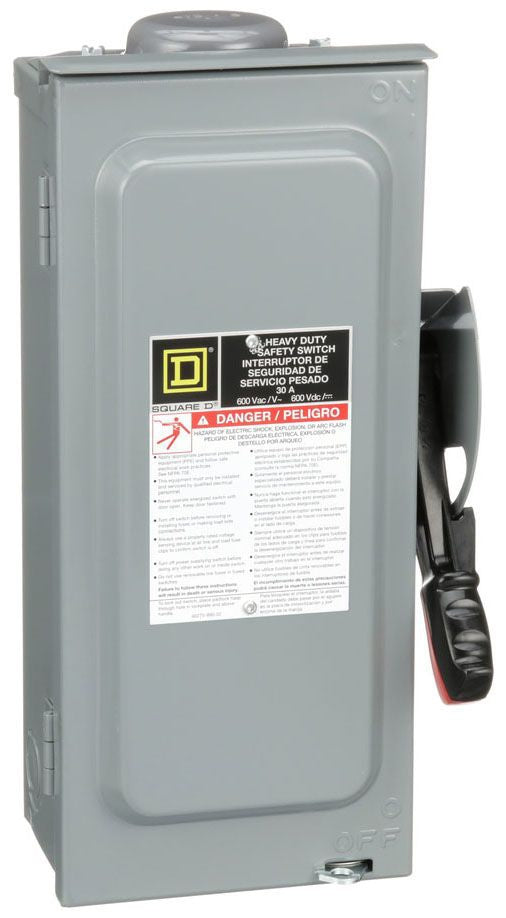

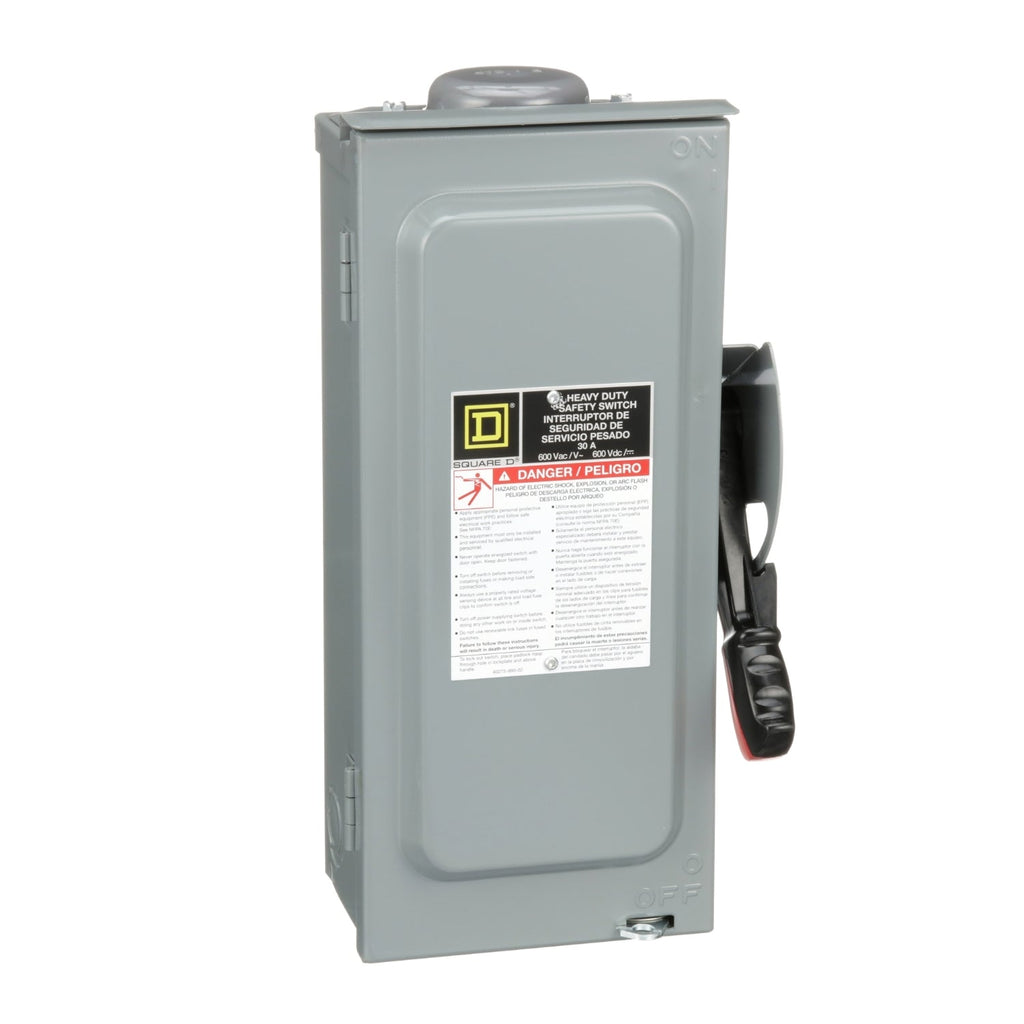

H361RB - Square D 30 Amp 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R

H361RB

H361RB is a Square D heavy duty fusible safety switch designed for industrial and commercial applications.This 3-pole, 30 amp safety switch features a 600V AC/DC voltage rating and a NEMA 3R rainproof enclosure made of galvannealed steel for indoor/outdoor use. It supports wire sizes from 14 AWG to 6 AWG copper and 12 AWG to 6 AWG aluminum, with lug-type terminals and a single-throw disconnect action. The switch has a short circuit current rating of 10kA for Class H or K fuses and up to 200kA for Class R or J fuses. It is UL listed and built for heavy duty duty cycles.

Key Specifications
• Manufacturer: Square D
• Part Number: H361RB
• Amperage: 30 Amp
• Voltage Rating: 600 VAC/DC
• Number of Poles: 3-Pole
• Mounting Type: Surface Mount
• Interrupt Rating: 10kA Class H/K, 200kA Class R/J
• Enclosure Rating: NEMA 3R (Rainproof, Sleet/Ice Proof)
• Enclosure Material: Galvannealed Steel
• Terminal Type: Lugs
• Duty Type: Heavy Duty
• Disconnect Type: Fusible
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H361RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R
• Compatible Frames : ED

Product Data

• UPC : 785901481966
• GTIN : 00785901481966
• Dimensions : 14.88 in (377.95 mm) x 7.55 in (191.77 mm) x 4.86 in (123.44 mm) (Height x Width x Depth)
• Weight : 8.501 lb
• Certification : UL Listed
