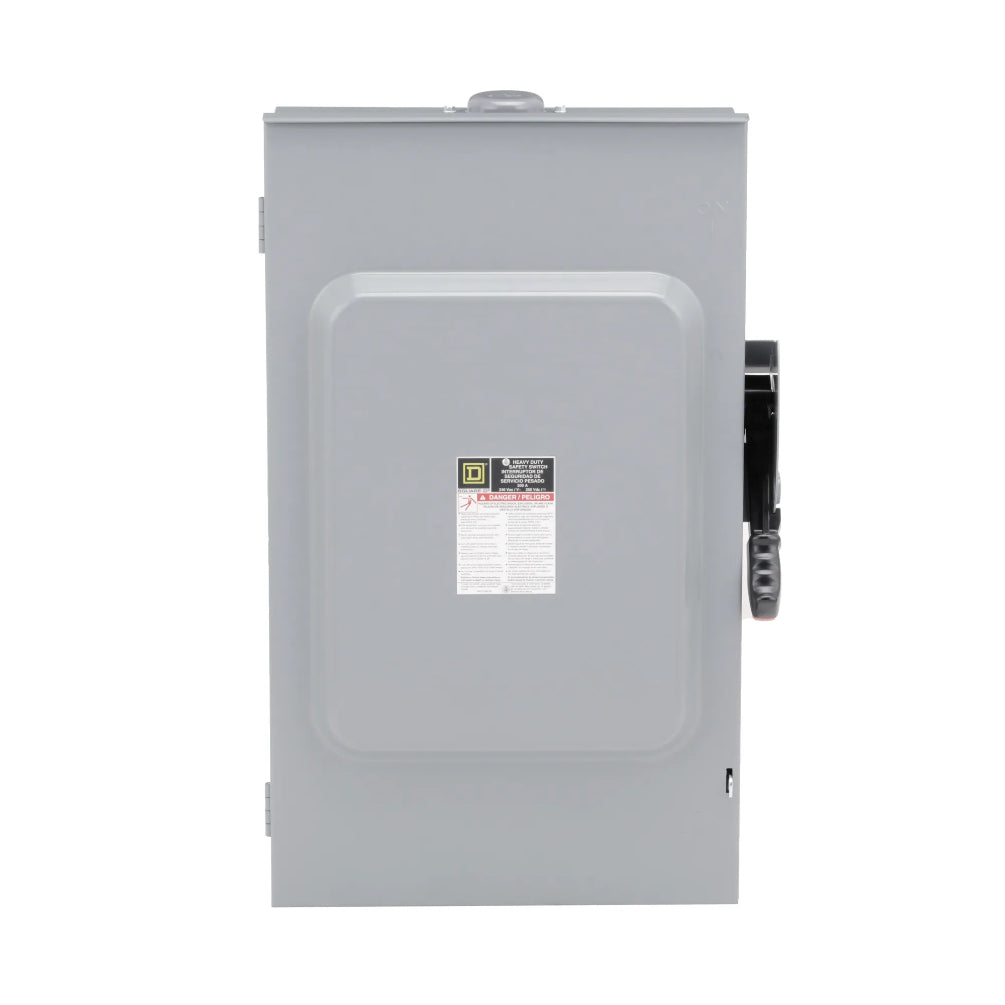

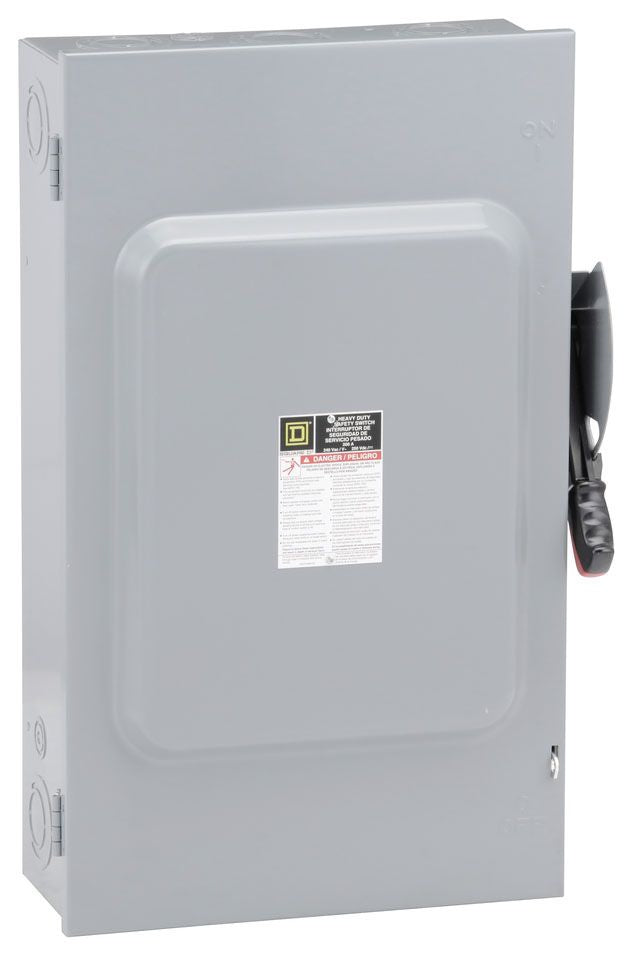

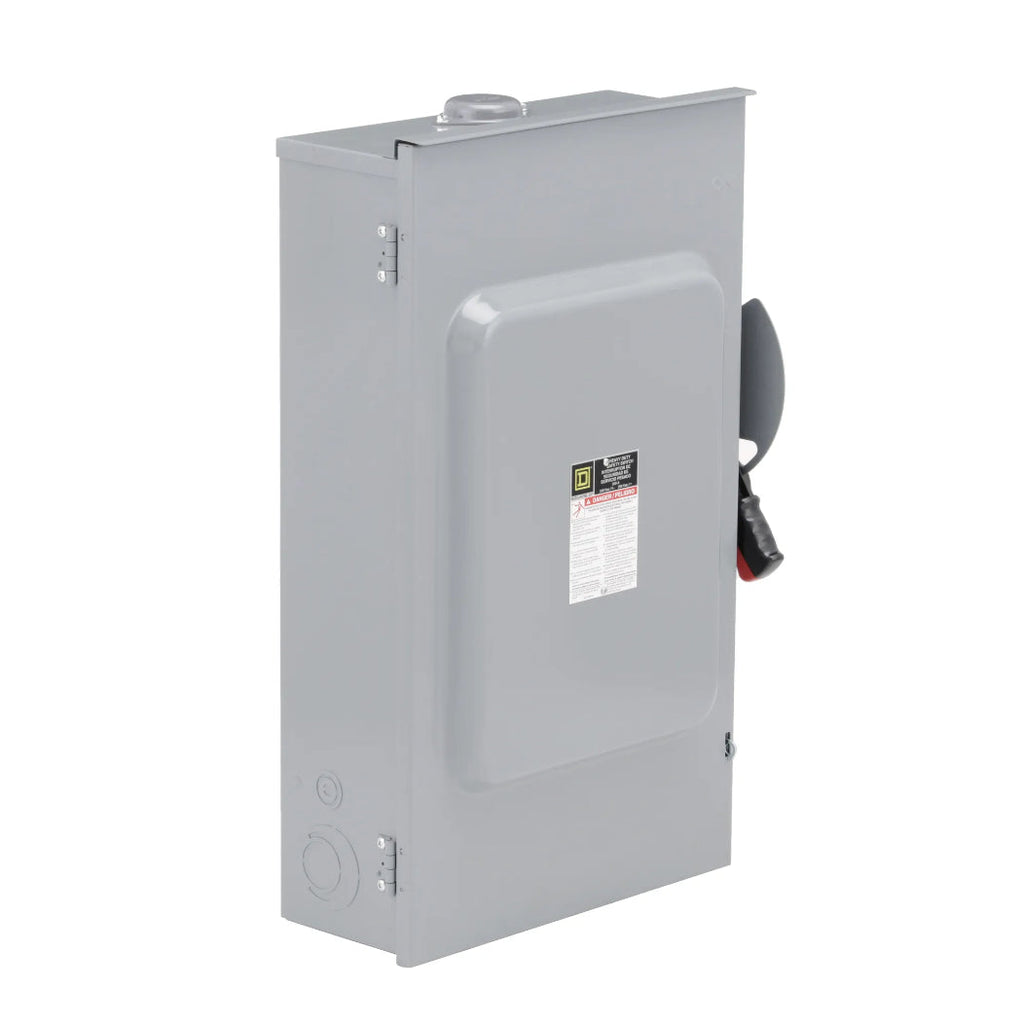

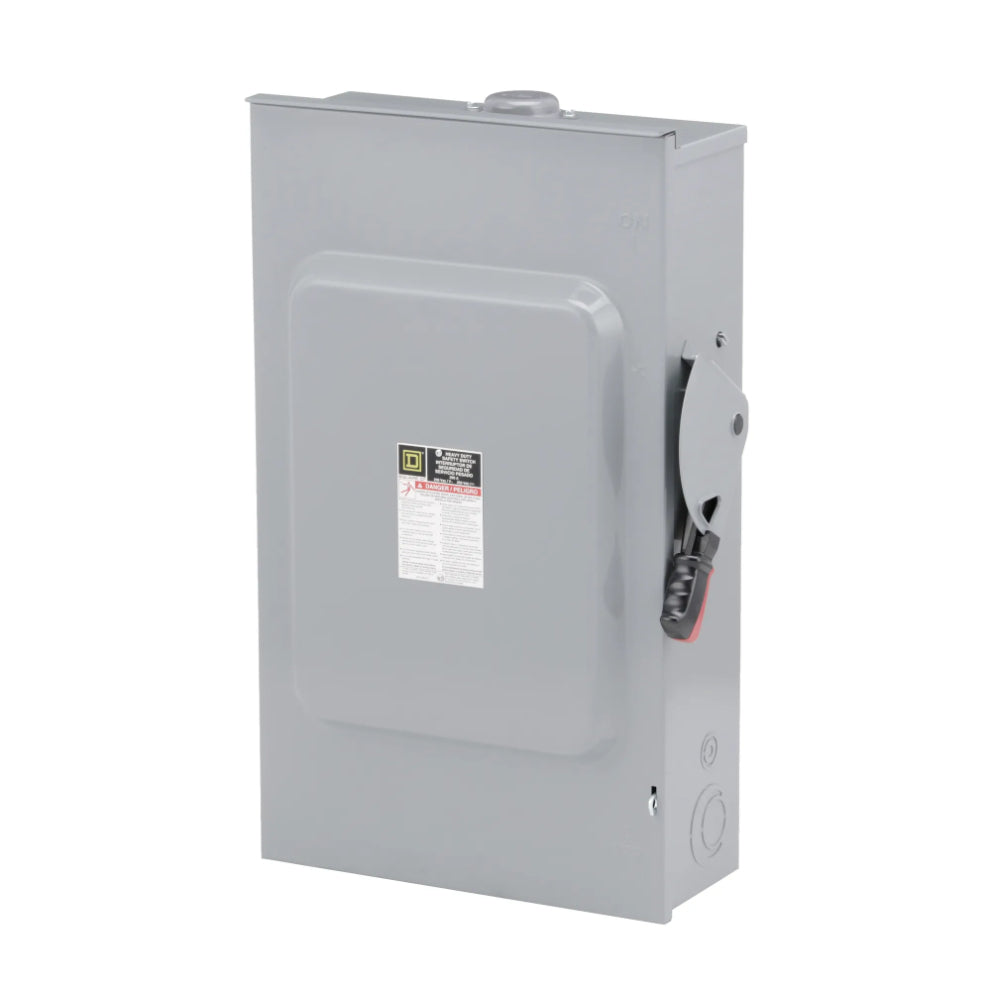

H324N - Square D 200 Amp 240VAC 3-Pole Heavy Duty Fusible Safety Switch NEMA 1 Indoor

H324N

This switch features a steel enclosure designed for indoor use (NEMA 1), supports 4-wire configuration including a factory-installed neutral, and accepts Class H/J/K/L/R fuses. It is surface mounted and suitable for heavy duty applications with a fusible disconnect for enhanced safety and protection. The switch supports 250VDC operation and is rated for horsepower loads up to 60 HP at 240VAC three-phase.

Key Specifications
• Manufacturer: Square D
• Part Number: H324N
• Amperage: 200 Amp
• Voltage: 240VAC / 250VDC
• Poles: 3-pole plus neutral (4-wire)
• Mounting Type: Surface mount
• Enclosure: Steel, NEMA 1 (Indoor)
• Fusible: Accepts Class H/J/K/L/R fuses
• Duty Rating: Heavy Duty
• Horsepower Rating: 60 HP at 240VAC 3-phase
• Interrupt Rating: Up to 200kA short circuit current rating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H324N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240 AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1



Product Data

• UPC : 785901480501
• GTIN : 00785901480501
• Country of Origin : United States
• Dimensions : 29 in (736.6 mm) x 17.13 in (435.10 mm) x 8.25 in (209.55 mm) (Height x Width x Depth)
• Weight : 43.901
• Certification : UL98
