- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
H320R

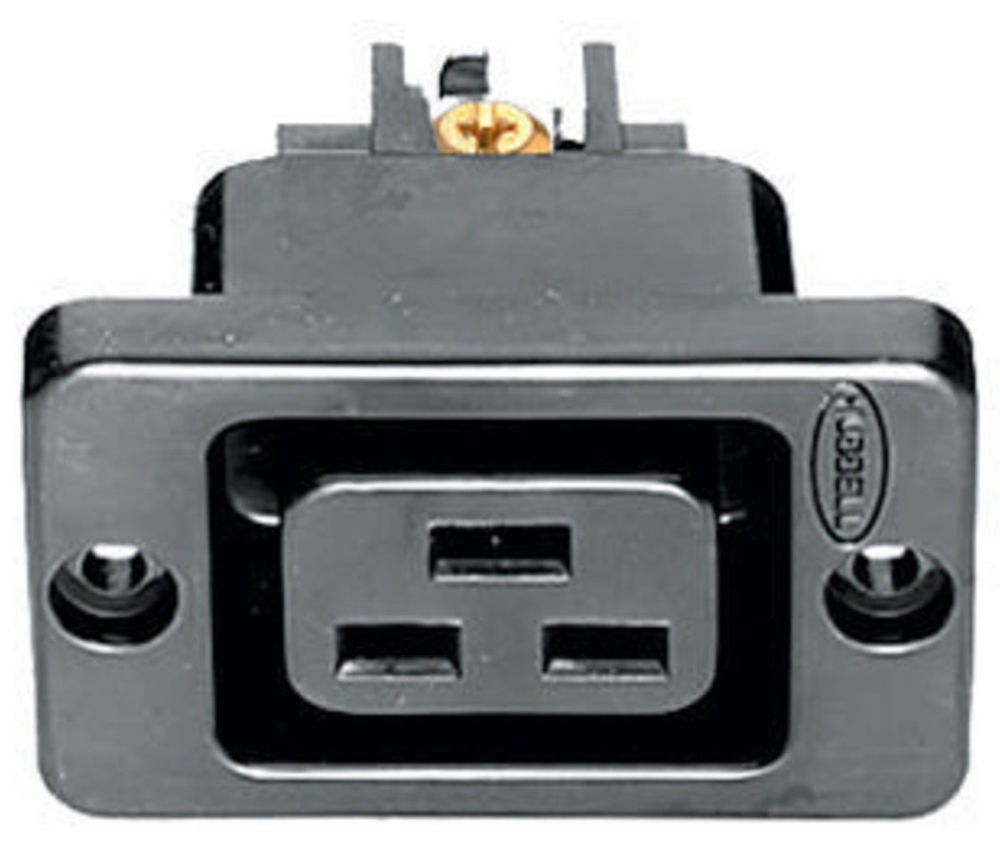

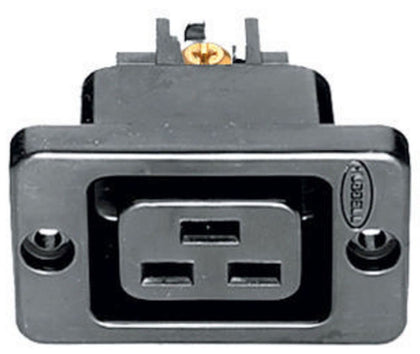

H320R is a Hubbell IEC 320 female receptacle rated for 20/16 amps and 250 volts with a 2-pole configuration and screw mounting.This IEC appliance coupler features a black nylon base, supports 3-wire connections with screw terminals, and withstands dielectric strength of 2,000 volts minimum. It is designed for single-phase applications, compatible with wire sizes #16AWG to #12AWG (North American) and 1.55mm² to 2.5mm² (International). The device operates in temperatures from -40°C to 75°C and is RoHS compliant with CM certification.
- Key Specifications
- Amperage Rating: 20/16 A
- Voltage Rating: 250 V
- Number of Poles: 2-Pole
- Mounting Type: Screw Mount
- Number of Wires: 3-Wire
- Wire Size: #16AWG to #12AWG (North American), 1.55mm² to 2.5mm² (International)
- Dielectric Strength: 2,000 V minimum
- Material: Nylon Base
- Phase: Single Phase
- Certifications: CM, RoHS Compliant
- Operating Temperature: -40°C to 75°C
- Color: Black
Specifications
- Part Number: H320R
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 250 250
Product Data
- UPC : 783585777054
- GTIN : 783585777054
- Dimensions : 1.41 x 1.89 x 1.52 in 2.344 in H x 1.406 in W x 1.516 in D
- Weight : 0.3
