Product Info
- Manufacturer:Eaton
Description
H250302S

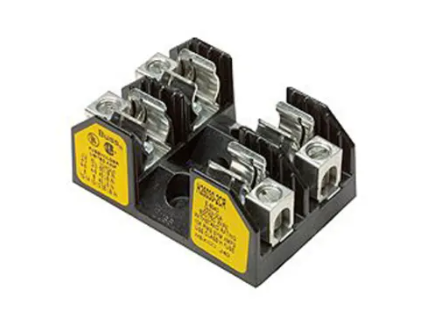

H25030-2S is a 30A, 250V, 2-pole Class H fuse block from Eaton Bussmann designed for secure cartridge fuse holding with screw terminals.This fuse block features a durable thermoplastic construction, supports Class H fuses, and is rated for 10kA interrupt capacity. It accepts #10 to 18 AWG copper wire and is UL94V-0 flammability rated. Ideal for branch circuit protection, it mounts on panels and provides reliable electrical safety compliance.
- Amperage Rating: 30A
- Voltage Rating: 250V AC
- Number of Poles: 2
- Fuse Size Held: Class H
- Mounting Type: Panel Mount
- Interrupt Rating: 10kA RMS symmetrical
- Terminal Type: Screw
- Material: Thermoplastic
- Flammability Rating: UL94V-0
- Wire Range: #10 to 18 AWG copper
- Series: H250
- Certifications: UL Listed, RoHS Compliant
Specifications
- Part Number: H250302S
- Manufacturer : Eaton
- Brand : Bussmann
Product Data
- Weight : 5.19
