Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
H25030-1C

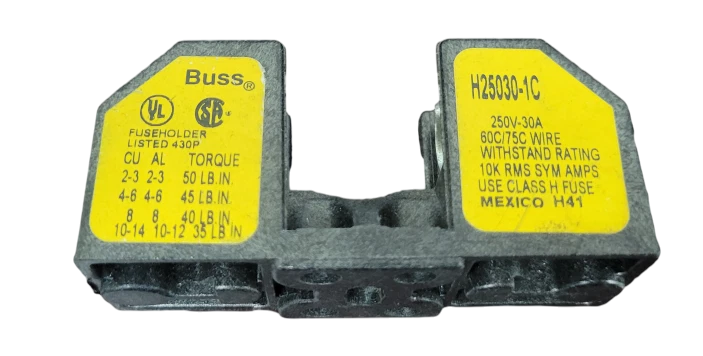

H25030-1C is a 1-pole Class H fuse block rated for 250V AC with amperage range of 1/10 to 30A, designed for reliable circuit protection in industrial and commercial applications. This fuse block features box lug terminal connections and is suitable for use with Class H fuses (non-renewable and renewable types). The unit is constructed with thermoplastic material and meets UL and CSA certification standards for safety and performance. Key Specifications
- Part Number: H25030-1C
- Manufacturer: Eaton Bussmann Series
- Number of Poles: 1
- Voltage Rating: 250V AC
- Amperage Range: 1/10 to 30A
- Fuse Class: Class H
- Terminal Connection: Box Lug
- Withstand Rating (SCCR): 10kA RMS Symmetrical
- Mounting Type: Chassis Mount
- Material: Thermoplastic (UL Flammability 94V0)
- Certifications: UL Listed (UL 4248), CSA Certified (C22.2 No. 39)
- Fuse Size: 0.563 inches Diameter x 2 inches Length
Specifications
- Part Number: H25030-1C
- Manufacturer : Eaton
- Category : Fuse
- Item Subcategory : Fuse Block
- Section : Fuse Holder
- Voltage : 250
- Amperage : 30
Product Data
- UPC : 051712146630
- Country of Origin : Mexico
- Weight : 1
