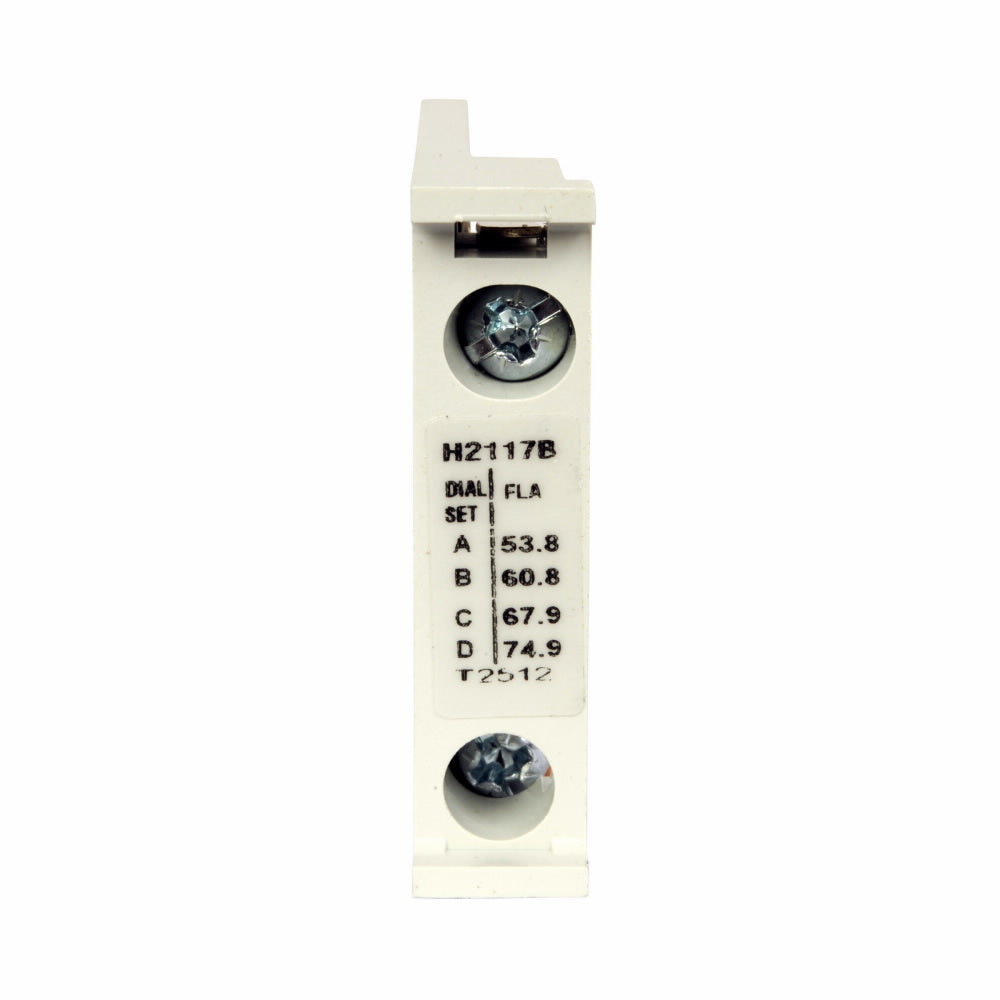

H2117B-3 - Cutler Hammer Freedom NEMA Heater Pack 53.8-74.9A Class 10 Fast Trip

H2117B-3

H2117B-3 is a Cutler Hammer Freedom Series thermal overload heater pack designed for motor control applications with fast trip Class 10 protection. This heater element pack is compatible with NEMA Size 2 starters and IEC Sizes G-K (Series B) and provides reliable overload protection for three-phase motor circuits. The pack contains three individual heater elements that work in conjunction with overload relays to protect motors from thermal damage caused by sustained overcurrent conditions. Each heater element features selectable amperage ratings through dial positions, allowing technicians to match the heater to the specific motor full load current requirement. The product is UL Listed and CSA Certified for safety and reliability in industrial motor control systems.

• Catalog Number: H2117B-3
• Manufacturer: Cutler Hammer (Eaton)
• Product Type: Freedom/Definite Purpose Heater Pack
• Trip Type: Fast Trip, Class 10
• Full Load Current Range: 53.8A, 60.8A, 67.9A, 74.9A (Dial Positions A, B, C, D)
• Overload Relay Rating: 75A
• Compatible Starter Size: NEMA Size 2, IEC Sizes G-K (Series B)
• Design Standards: NEMA and IEC
• Certifications: UL Listed, CSA Certified
• Package Quantity: 3 heater packs per carton
• Product Weight: 0.2 lb
• Warranty: One year from installation or eighteen months from shipment, whichever occurs first

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H2117B-3
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Freedom Series
• Type : H
• Full Load Amp Minimum : 53.8
• Full Load Amp Maximum : 74.9

Product Data

• UPC : 782113004884
• GTIN : 00782113004884
• Country of Origin : Dominican Republic
• Dimensions : 1.8 in x 3.1 in x 1.7 in (Length/Depth x Height x Width)
• Weight : 0.2 lb
