H2113B-3 - Cutler Hammer Freedom Series Thermal Overload Heater Element 18.7-28.1A Fast Trip Class 10 NEMA IEC

H2113B-3

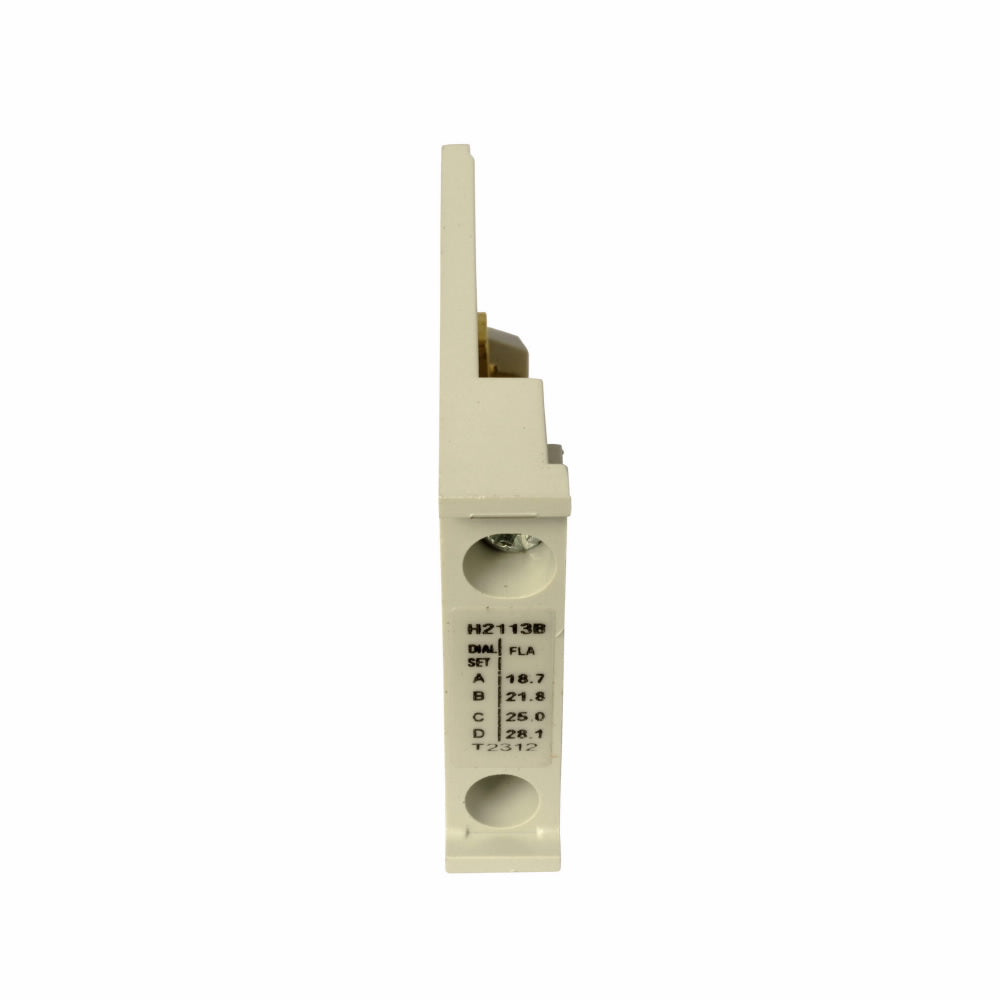

H2113B-3 is a Cutler Hammer Freedom Series thermal overload heater element designed for motor control applications.This heater element is a type H Freedom/Definite Purpose Heater Pack compatible with NEMA and IEC standards. It features a fast trip Class 10 trip unit and supports a full load current range of 18.7 to 28.1 amps selectable via dial positions. It is intended for use with thermal overload relays and magnetic motor starters, suitable for starter sizes 00-0 (Series C), 1-2 (Series B), IEC sizes A-F (Series C), and G-K (Series B). The heater packs are shipped in sets of three.

Key Specifications
• Manufacturer: Cutler Hammer
• Series: Freedom
• Type: Thermal Overload Heater Element (Type H)
• Full Load Current Range: 18.7A to 28.1A (dial selectable)
• Trip Class: Fast Trip, Class 10
• Standards: NEMA, IEC
• Compatible Overload Relay Ratings: 32 or 75A
• Pack Quantity: 3 heater elements per carton
• Application: Motor control with thermal overload relays and magnetic motor starters
• Mounting: Used with specified starter sizes (00-0, 1-2, IEC A-K)
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H2113B-3
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Freedom Series
• Type : H
• Full Load Amp Minimum : 18.7
• Full Load Amp Maximum : 28.1



Product Data

• UPC : 782113004846
• GTIN : 00782113004846
• Country of Origin : Dominican Republic
• Dimensions : 1.8 in x 3.3 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : UL Listed,CSA Certified
