H2024-3 - Cutler Hammer Eaton Freedom Standard Trip Heater Pack 106-144A NEMA IEC Class 20

H2024-3

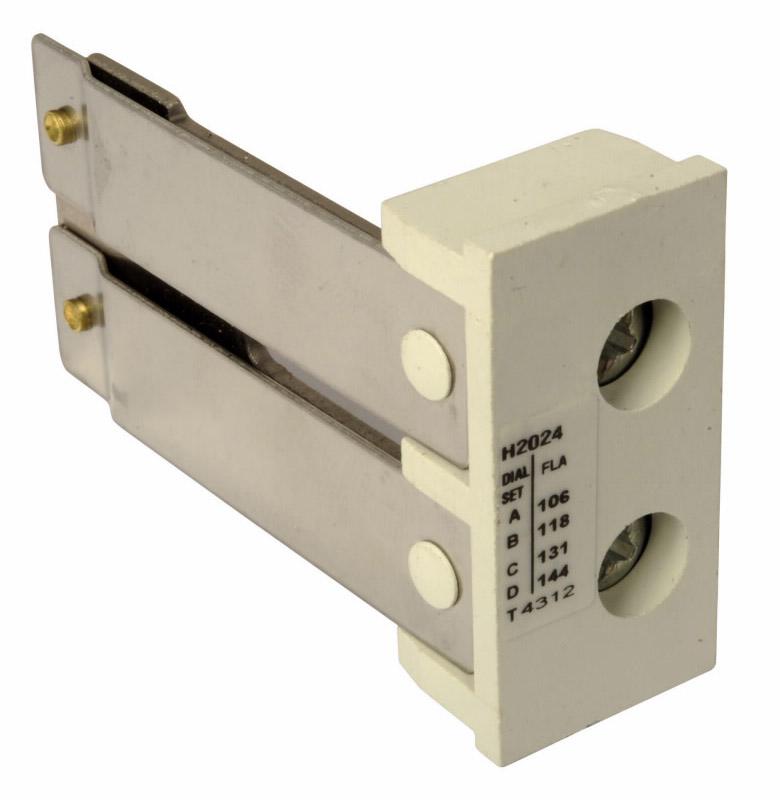

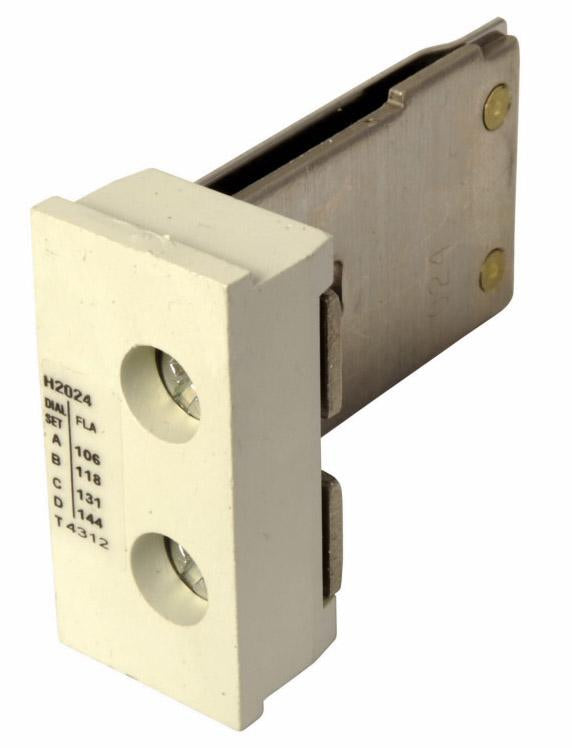

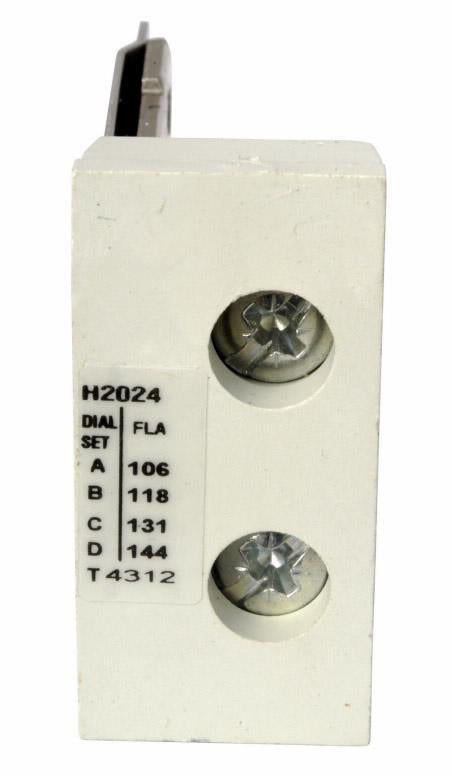

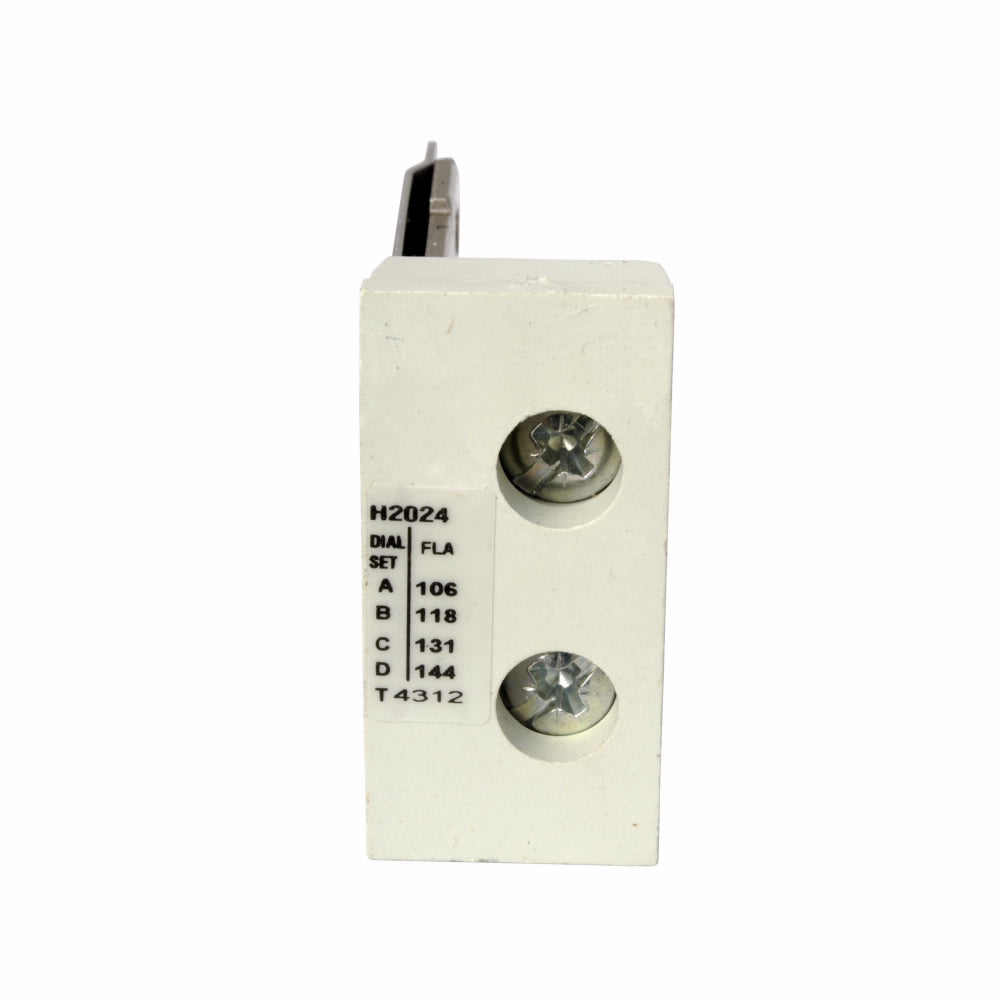

H2024-3 is a Cutler Hammer Eaton Freedom standard trip heater pack designed for motor control applications with a full load current range of 106 to 144 Amps.This heater pack features a standard trip, Class 20 overload relay compatible with starter sizes 3-4 and IEC sizes L-N (Series A). It supports NEMA and IEC designs and offers dial positions A, B, C, and D corresponding to full load amps of 106, 118, 131, and 144 respectively. The unit is UL Listed and CSA Certified, ensuring compliance with industry safety standards.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Series: Freedom
• Type: Standard Trip Heater Pack
• Full Load Current Range: 106A, 118A, 131A, 144A (Dial Positions A-D)
• Overload Relay Rating: 105 or 144 Amps
• Compatible Starter Sizes: 3-4, IEC Sizes L-N (Series A)
• Design Standards: NEMA, IEC
• Trip Class: 20
• Certifications: UL Listed, CSA Certified
• Dimensions (HxWxD): 3.5 x 2.15 x 2.5 inches
• Weight: 0.6 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H2024-3
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Freedom Series
• Type : H
• Full Load Amp Minimum : 106
• Full Load Amp Maximum : 144

Product Data

• UPC : 782113626635
• GTIN : 00782113626635
• Country of Origin : Dominican Republic
• Dimensions : 2.5 in x 3.5 in x 2.15 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL Listed,CSA Certified
