H2019-3 - Cutler Hammer 24.6-33.4A Standard Trip Heater Element NEMA Size 3 Motor Control

H2019-3

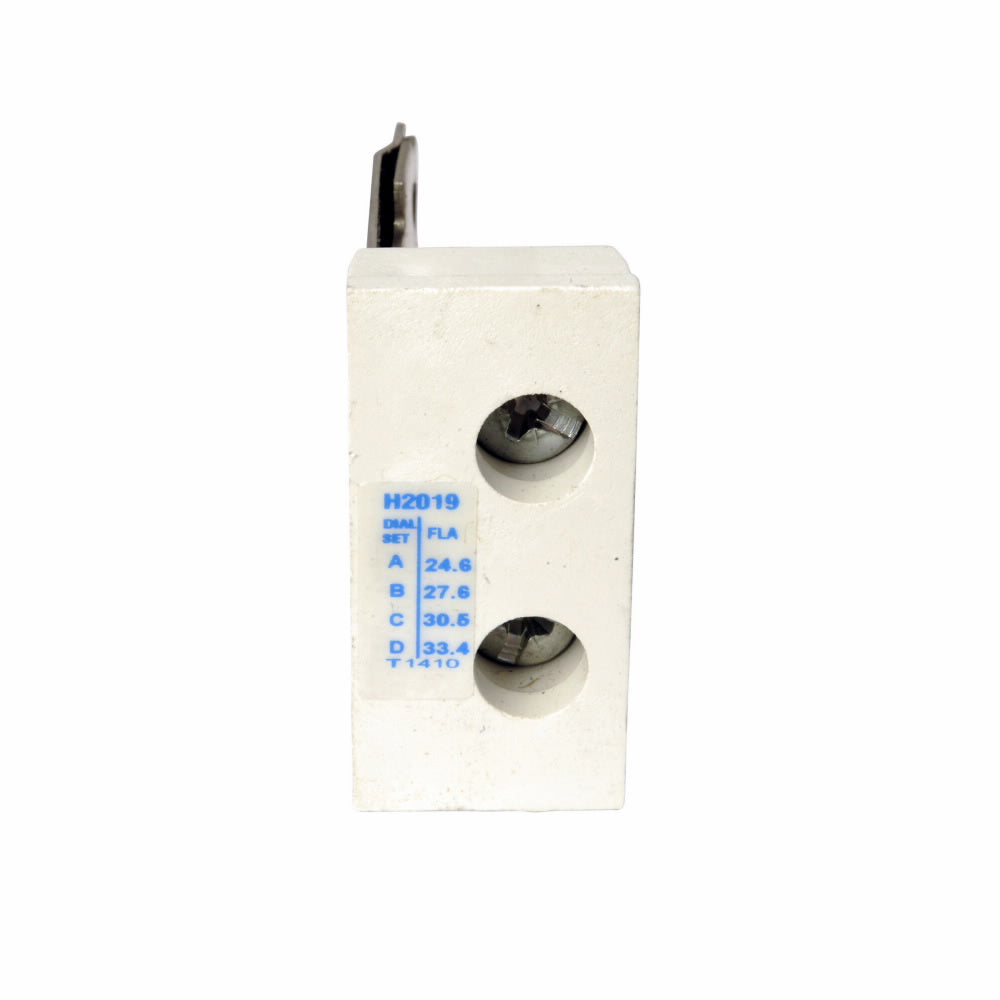

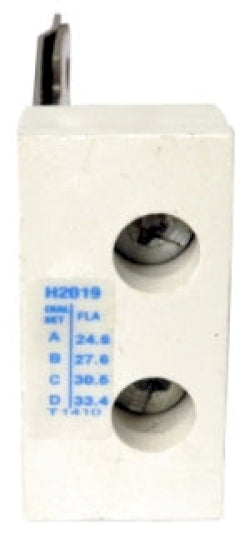

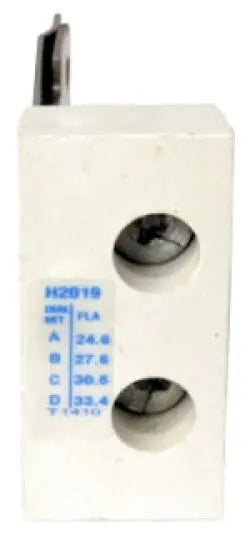

H2019-3 is a Cutler Hammer standard trip heater element designed for motor control applications with a full load amp range of 24.6 to 33.4 amperes.

This heater pack is part of the Eaton Freedom series, calibrated for Class 20 standard trip operation and suitable for NEMA size 3 motor starters. It provides precise overload protection by acting as the thermal element in motor starter circuits, helping prevent motor damage from extended overcurrent or thermal stress. The heater element is adjustable across dial positions A, B, C, and D to match motor full load amps between 24.6A and 33.4A. It is compatible with 1 and 1.15 service factor motors and meets IEC and NEMA standards.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: H2019-3
• Amperage Range: 24.6 to 33.4 Amps
• Trip Type: Standard Trip, Class 20
• NEMA Size: 3
• Series: Eaton Freedom
• Mounting: Heater Pack for Motor Starters
• Adjustable Dial Positions: A, B, C, D
• Service Factor: 1 and 1.15
• Certifications: Meets NEMA and IEC standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H2019-3
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Freedom Series
• Type : H
• Full Load Amp Minimum : 24.6
• Full Load Amp Maximum : 33.4

Product Data

• UPC : 782113626581
• GTIN : 00782113626581
• Country of Origin : Dominican Republic
• Dimensions : 2.4 in x 3.3 in x 2.1 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : UL Listed,CSA Certified
