H2017-3 - Cutler Hammer Thermal Overload Heater Element 53.9-74.9A Full Load, Class 20 Standard Trip

H2017-3

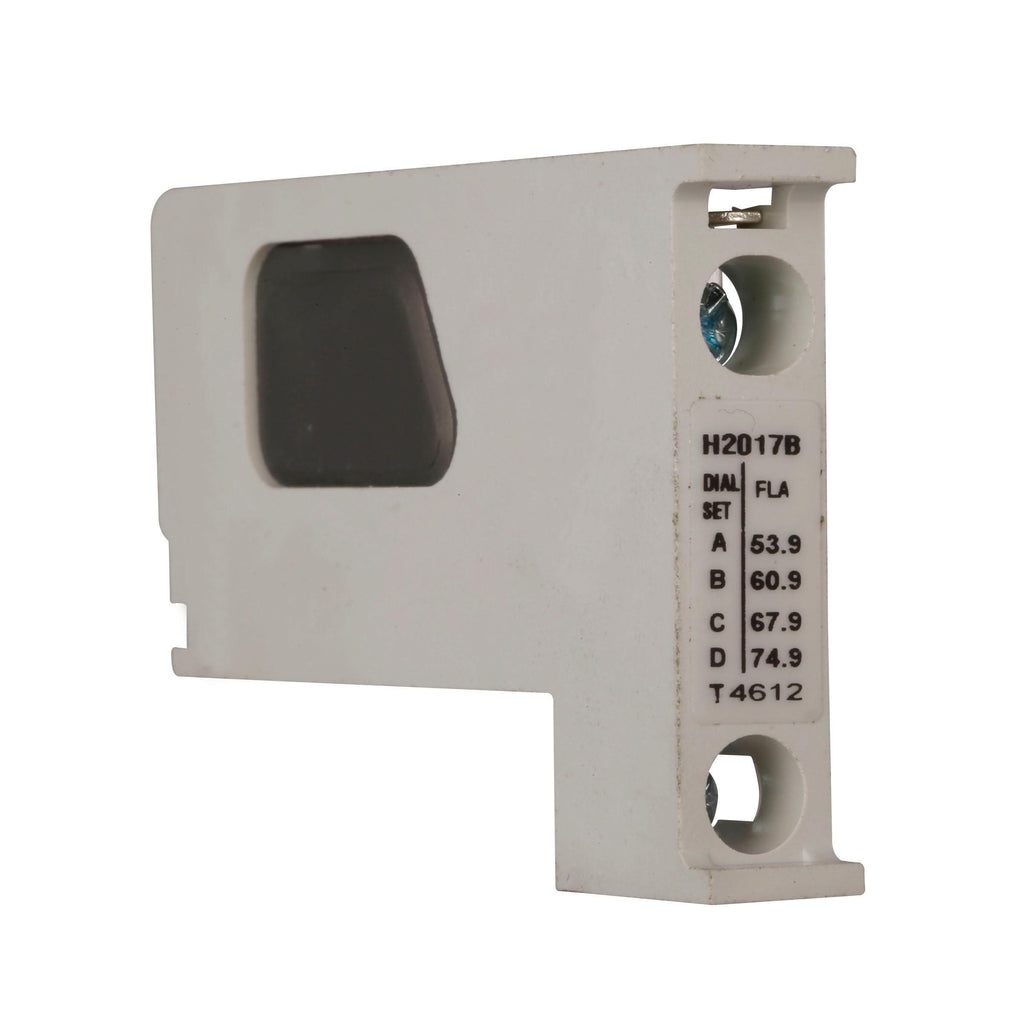

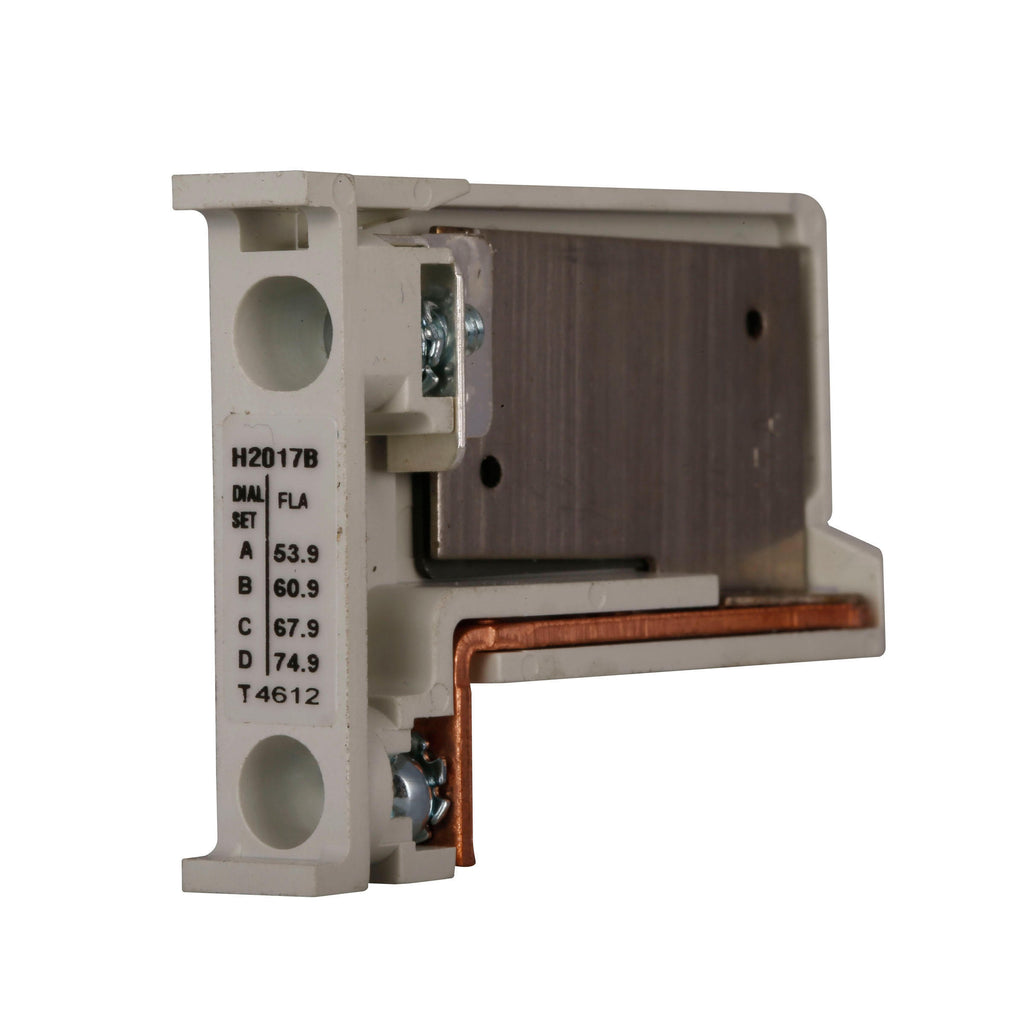

H2017-3 is a Cutler Hammer thermal overload heater element designed for motor control applications with a full load current range of 53.9 to 74.9 amps.

This heater element features a Class 20 standard trip characteristic, providing reliable and prompt overload protection for motors. It is engineered for use with Eaton Freedom Series starters, specifically Size 2, IEC G-K frame starters, ensuring seamless integration. The heater element is UL listed and CSA certified, meeting stringent safety and regulatory standards. It is sold in packs of three units, ideal for industrial environments requiring dependable motor overload protection.

• Full Load Current Range: 53.9A to 74.9A (dial positions A-D)
• Trip Type: Standard Trip, Class 20
• Compatible with Eaton Freedom Series Size 2, IEC G-K starters
• Overload Relay Rating: 75A
• Design: NEMA and IEC compliant
• UL Listed and CSA Certified
• Dimensions: 3.4 in L × 1.9 in W × 1.8 in H
• Weight: Approximately 0.2 lb per unit
• Sold as a 3-pack

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H2017-3
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Freedom Series
• Type : H
• Full Load Amp Minimum : 50.6
• Full Load Amp Maximum : 74.9

Product Data

• Dimensions : 3.4" X 1.8" X 1.9"
• Weight : 0.2 lb
