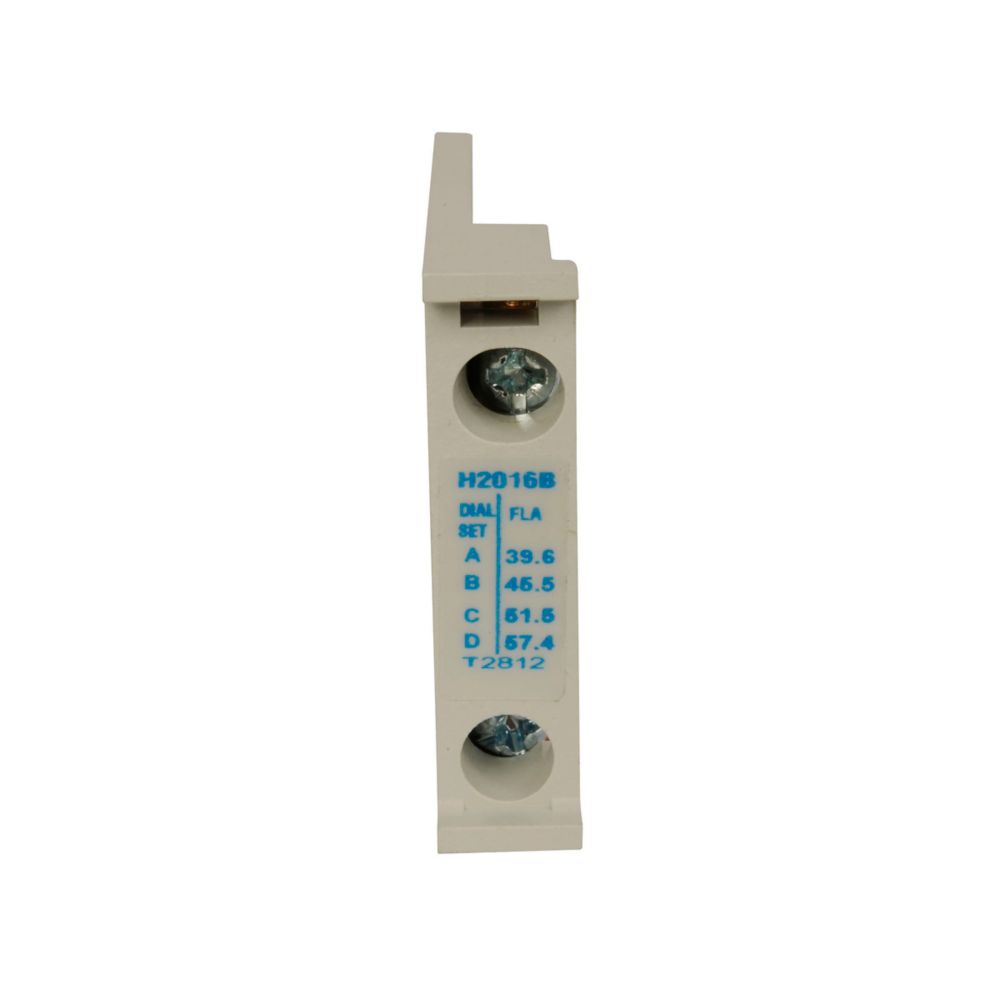

H2016B-3 - Eaton Freedom NEMA Heater Coil 39.6-57.4A Adjustable, Class 20 Standard Trip, Size 2 Starter

H2016B

H2016B-3 is an Eaton Freedom NEMA heater coil designed for motor protection with adjustable full load current from 39.6 to 57.4 amps. This heater pack includes three coils and fits NEMA size 2 starters with Series B overload relays.H2016B-3 features a Class 20 standard trip type, providing reliable overload protection with trip times of 20 seconds or less. It is CSA certified and UL listed, compatible with both NEMA and IEC standards, and supports a 75 amp overload relay. The heater coil is compact, measuring 1.8 inches by 1.8 inches by 3.2 inches, and is shipped in packs of three.

Key Specifications
• Manufacturer: Eaton
• Part Number: H2016B-3
• Full Load Current Range: 39.6A to 57.4A (adjustable, dial positions A-D)
• Overload Relay Rating: 75A
• Trip Type: Standard Trip, Class 20
• Compatible Starter Size: NEMA Size 2, IEC Sizes G-K (Series B)
• Certifications: CSA Certified, UL Listed
• Dimensions: 1.8 in (W) x 1.8 in (D) x 3.2 in (H)
• Pack Quantity: 3 heater coils per pack
• Application: Motor protection in 3-phase devices

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H2016B

Product Data

• Weight : 5.19
