H2006B-3 - Eaton 1.79-2.9A Heater Element for Freedom Series Motor Control, Class 20 Trip

H2006B-3

H2006B-3 is an Eaton heater element designed for thermal overload protection in Freedom Series motor starters.This Eaton H2006B-3 heater pack provides precise thermal overload protection for three-phase motors with a full load ampere range of 1.79 to 2.9 amps. It features a Class 20 standard trip rating, factory-calibrated bimetal construction, and is compatible with Eaton C306DN3 and C306GN3 overload blocks. The heater element mounts directly to the overload block for quick installation and reliable motor protection.

Key Specifications
• Amperage Range: 1.79 to 2.9 Amps
• Trip Class: 20 (Standard Trip)
• Compatibility: Eaton Freedom Series motor starters
• Mounting Type: Direct mount to overload block

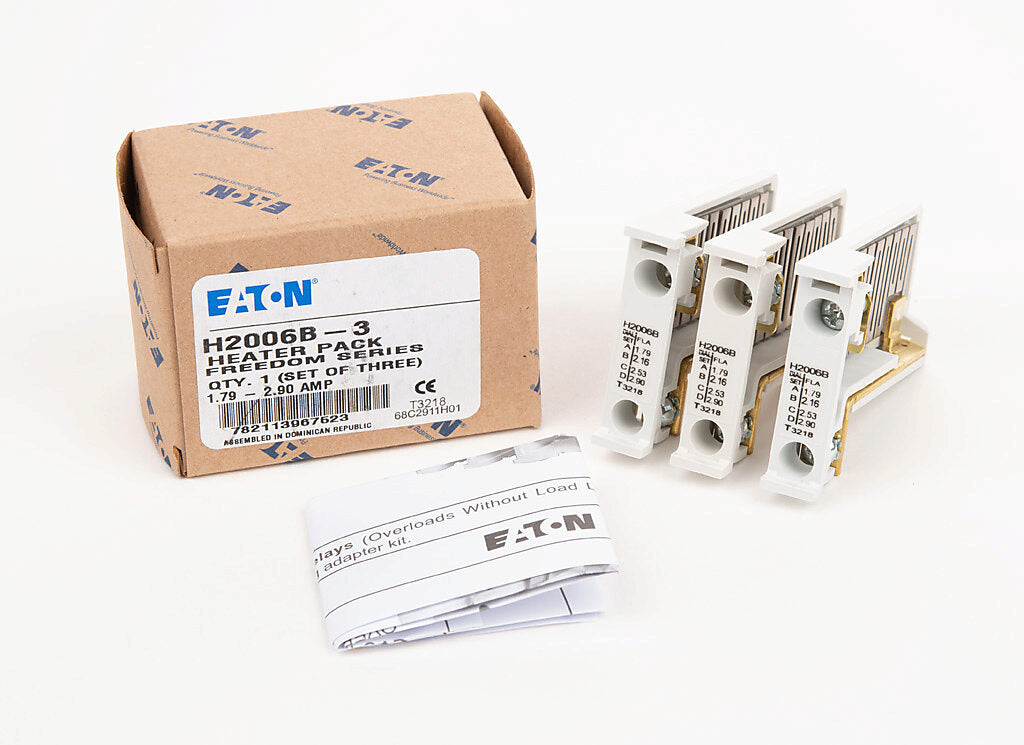

• Pack Size: 3 heaters per pack
• Application: Three-phase motor protection
• Construction: Factory-calibrated bimetal
• Series/Frame: Freedom Series
• Certifications: NEMA and IEC compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H2006B-3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Freedom Series
• Type : H
• Full Load Amp Minimum : 1.79
• Full Load Amp Maximum : 2.9
• Full Load Amps : 1.79 to 2.9



Product Data

• UPC : 078211396752
• GTIN : 00782113967523
• Country of Origin : Dominican Republic
• Dimensions : 1.7 in x 3.3 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.2 lb
• Certification : CSA Certified,UL Listed
