H2004B-3 - Eaton Freedom NEMA Heater Coil, Standard Trip, 0.814-1.32A, Class 20, NEMA Size 2

H2004B-3

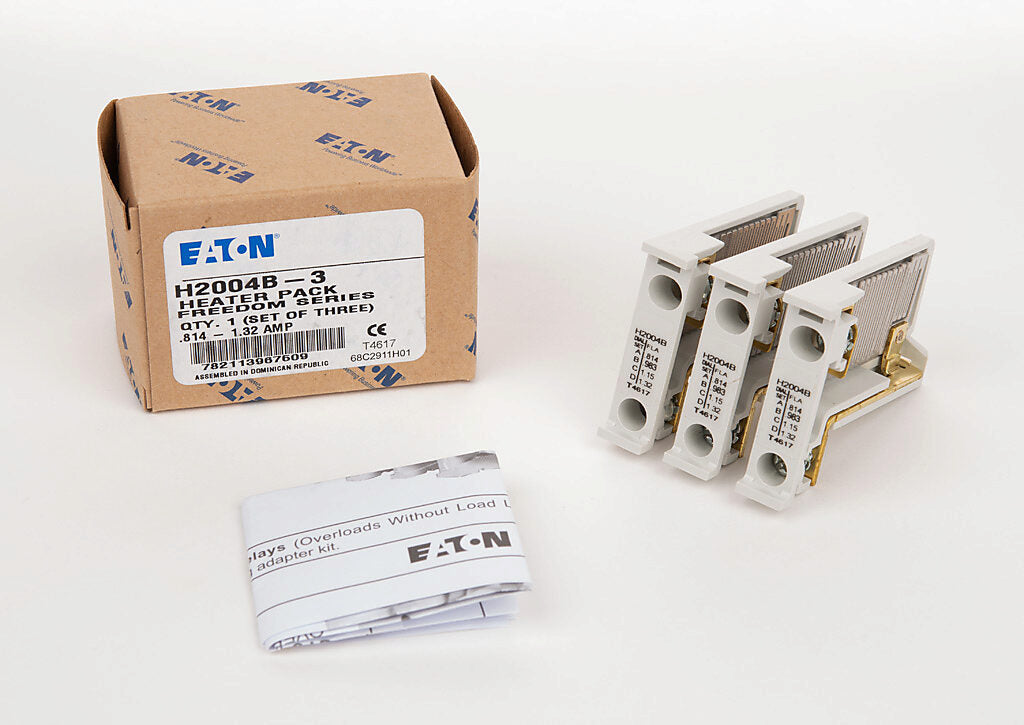

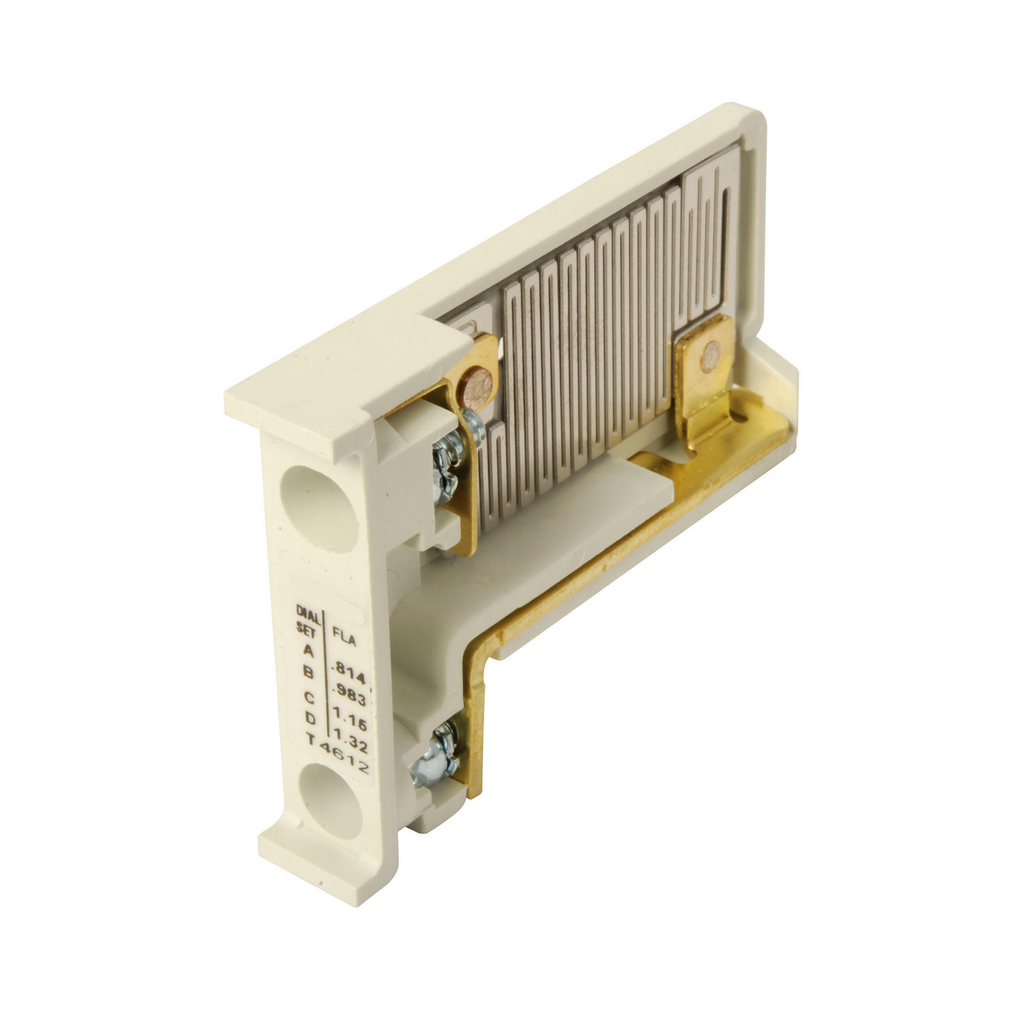

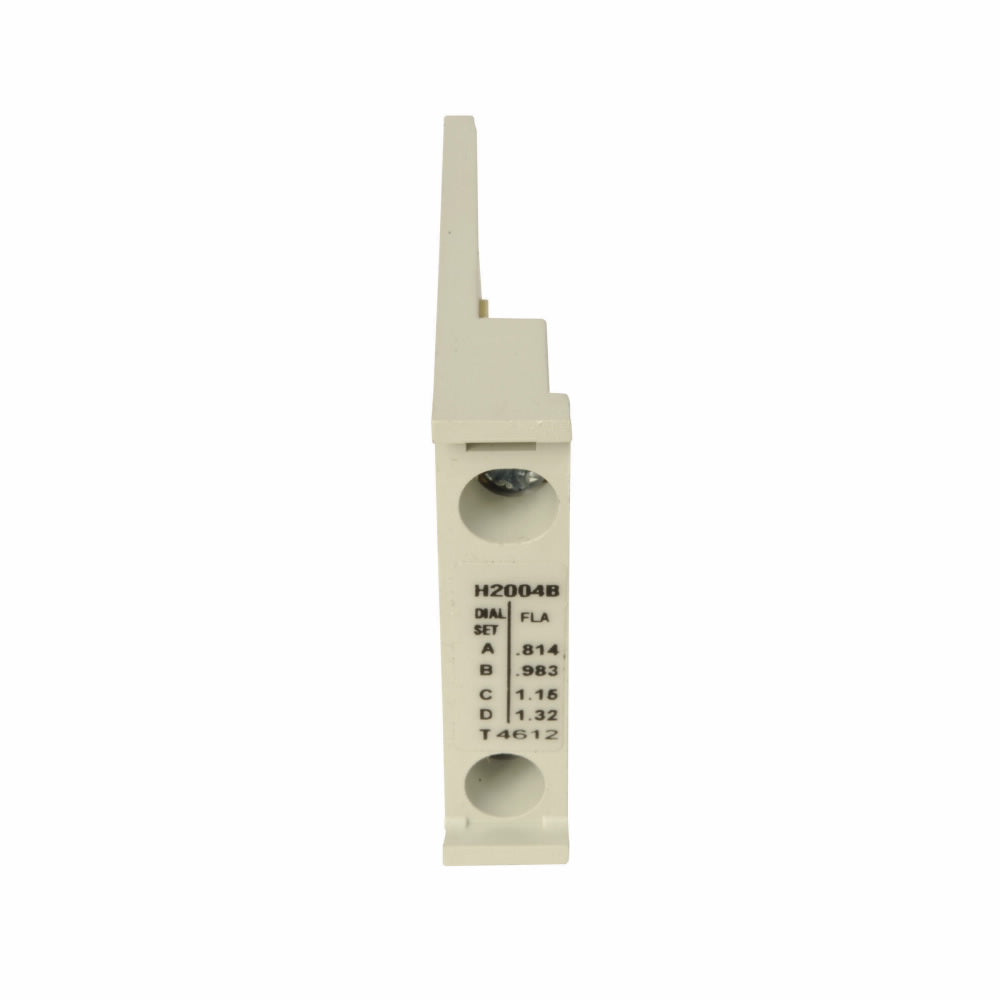

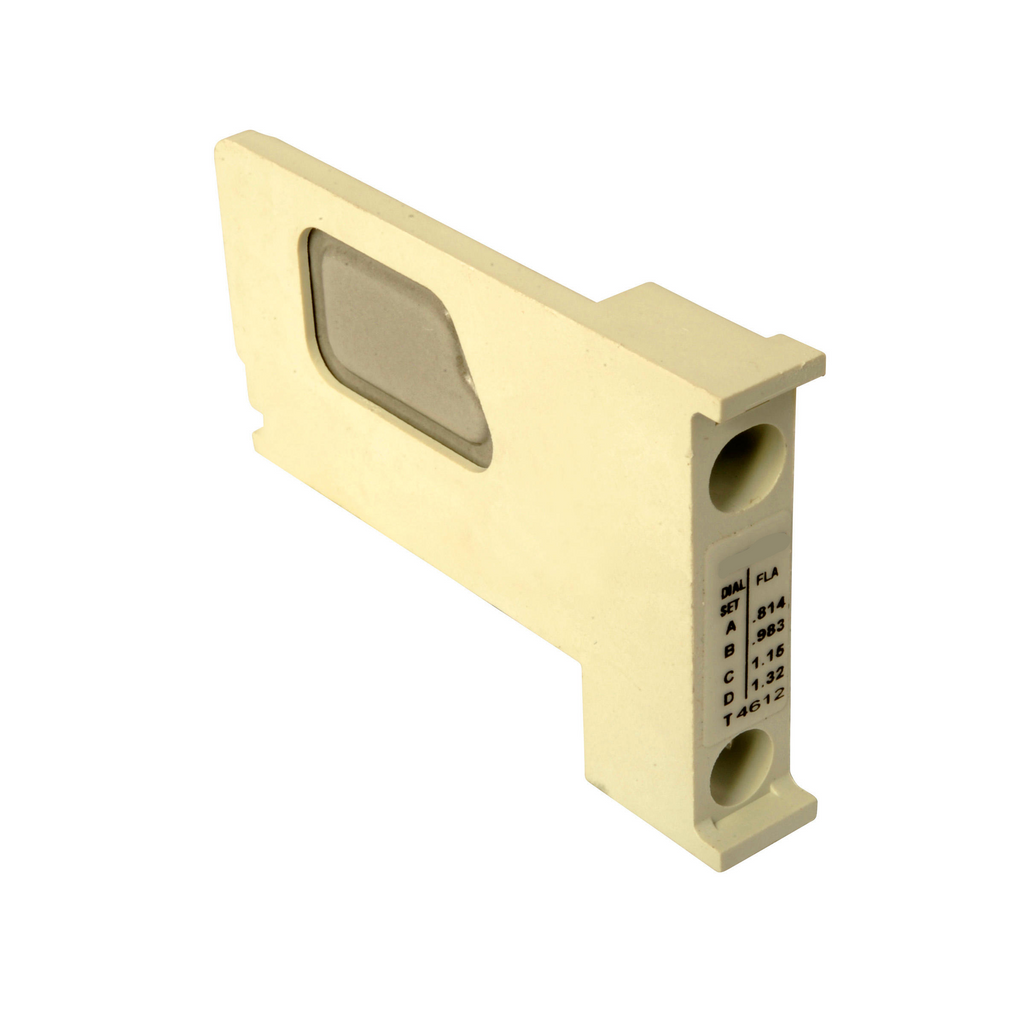

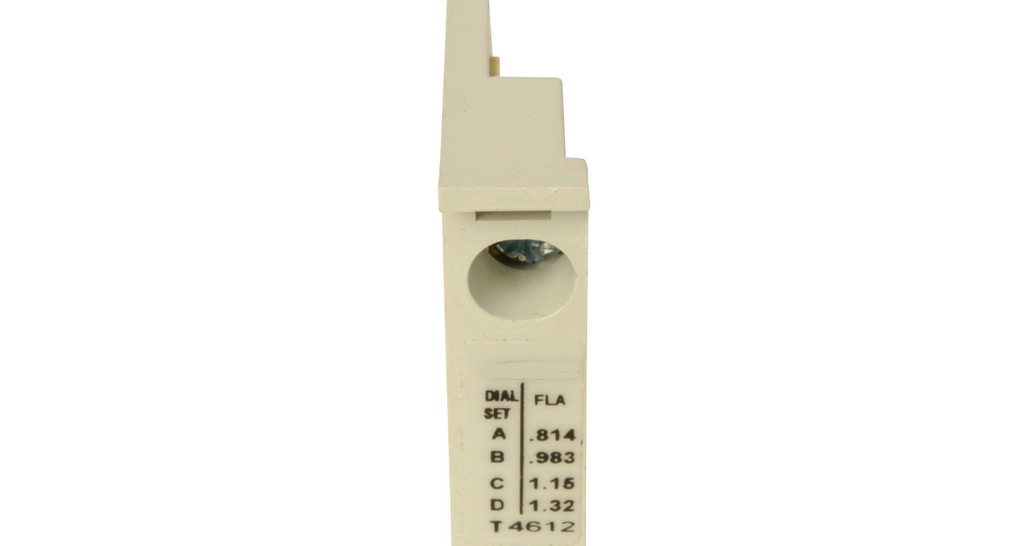

H2004B-3 is an Eaton Freedom NEMA heater coil designed for motor control applications with a standard trip and full load amperage range of 0.814 to 1.32 amps.This heater coil is part of Eaton's Freedom series, featuring Class 20 standard trip characteristics suitable for use with NEMA and IEC overload relays. It supports motor full load amperage from 0.814 to 1.32 A and fits NEMA Size 2 frames. The coil is calibrated for use with 1.0 and 1.15 service factor motors and complies with CSA, CE, and UL certifications.

• Manufacturer: Eaton
• Part Number: H2004B-3
• Series: Freedom, H2
• Full Load Amperage: 0.814 - 1.32 A
• Trip Type: Standard Trip, Class 20
• NEMA Size: 2
• Application: Motor Control, Overload Relay Heater Coil
• Certifications: CSA, CE, UL Listed
• Compatible with NEMA Sizes 00-0 Series C, 1-2 Series B, IEC Sizes A-F Series C, G-K Series B
• Mounting: Heater coil pack for overload relays

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H2004B-3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Freedom Series
• Type : H
• Full Load Amp Minimum : 0.81
• Full Load Amp Maximum : 1.32

Product Data

• UPC : 078211396750
• GTIN : 00782113967509
• Country of Origin : Dominican Republic
• Dimensions : 1.8 in x 3.3 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.2 lb
