Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Heater Element
Description

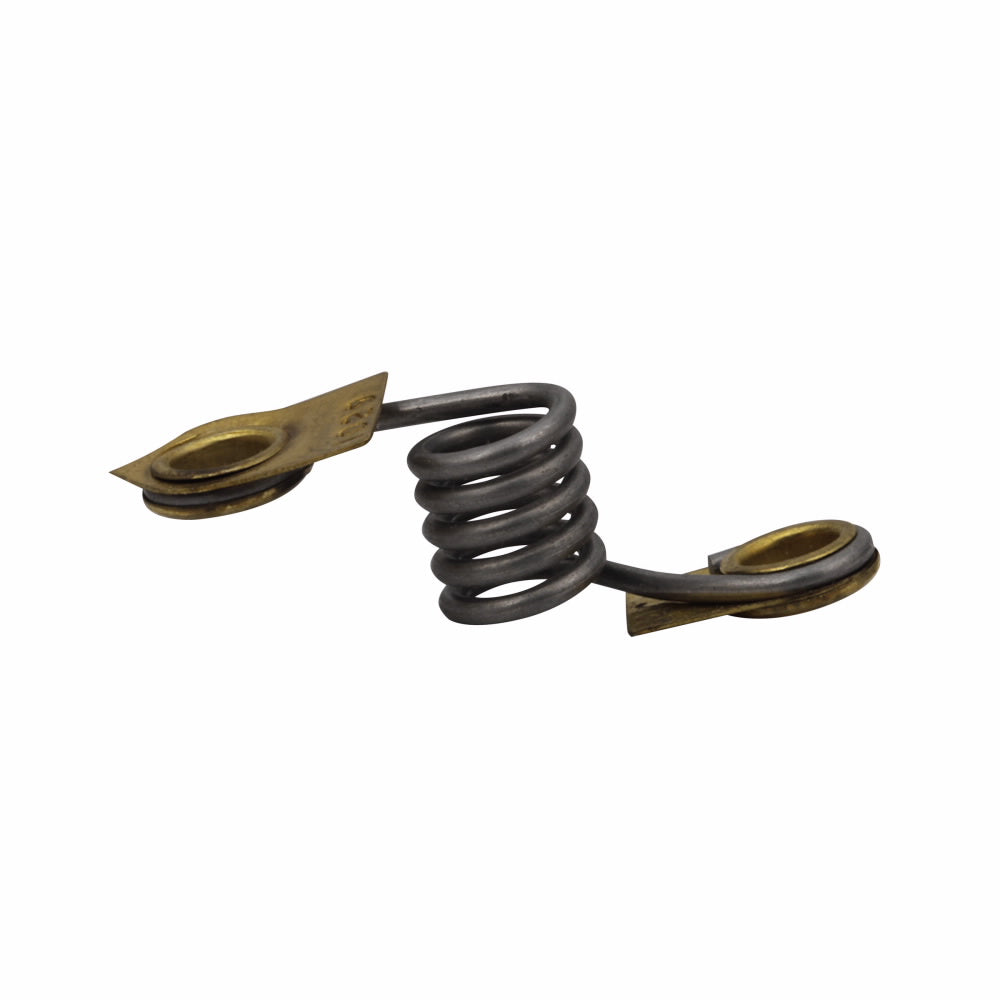

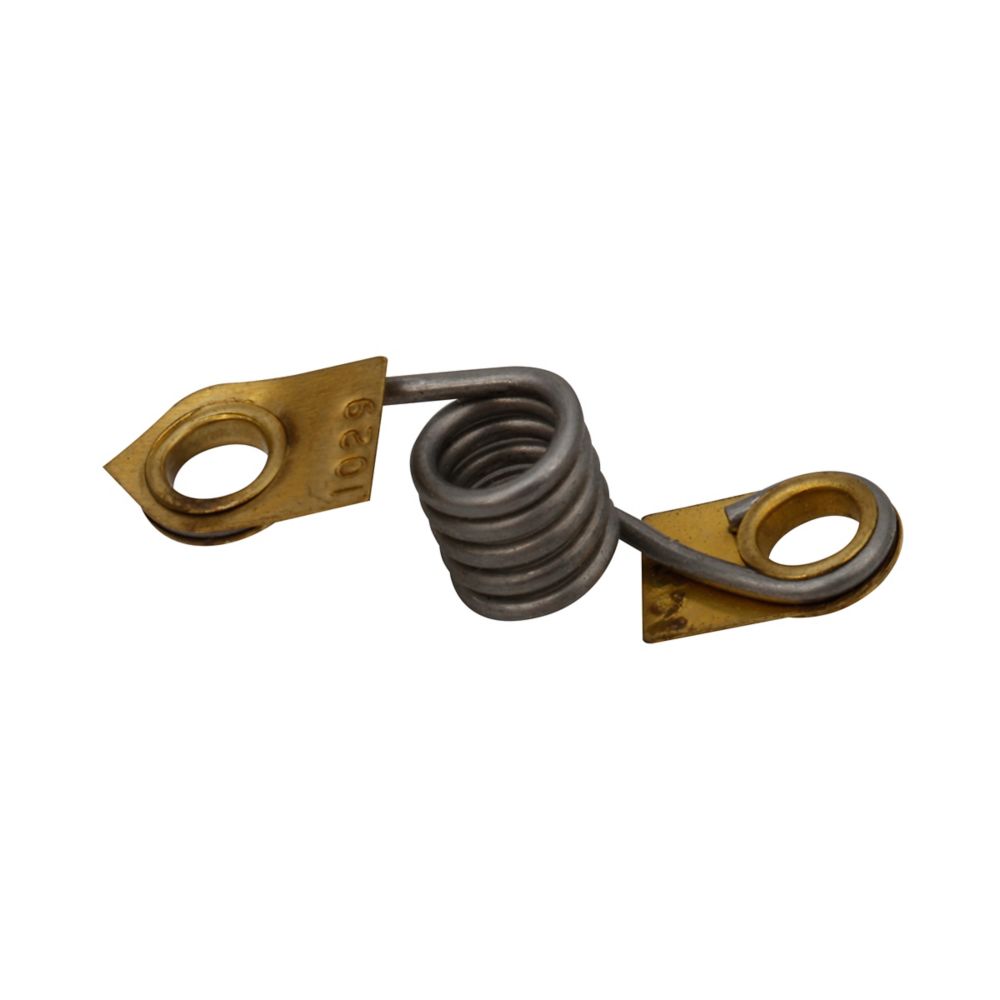

H1029
H1029 is a thermal overload heater coil designed for use in motor control applications, providing reliable protection for motors with a service factor of 1.15. This heater coil is compatible with Eaton Freedom NEMA magnetic motor starters and thermal overload relays. The H1029 heater coil is engineered to protect motors with a 40°C rise and is suitable for open and drip-proof motors where the motor and controller operate at the same ambient temperature. It is intended for replacement in existing applications and is not for use in new installations unless specified by the manufacturer.
- Part Number: H1029
- Manufacturer: Cutler Hammer (Eaton)
- Type: Thermal Overload Heater Coil
- Series: Freedom NEMA
- Full Load Current Rating: 4.19-5.07 A
- Motor Service Factor: 1.15
- Motor Temperature Rise: 40°C
- Mounting Type: Standard NEMA heater coil mounting
- Application: Replacement in existing motor control circuits
- Compatible With: Magnetic motor starters, thermal overload relays
- Motor Enclosure: Open and drip-proof
Specifications
- Part Number: H1029
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : Citation Series
- Type : H
- Full Load Amp Minimum : 4.19
- Full Load Amp Maximum : 5.07
Product Data
- UPC : 782113212647
- GTIN : 00782113212647
- Country of Origin : Dominican Republic
- Dimensions : 2 in x 0.8 in x 1.3 in (Length/Depth x Height x Width)
- Weight : 0.01
