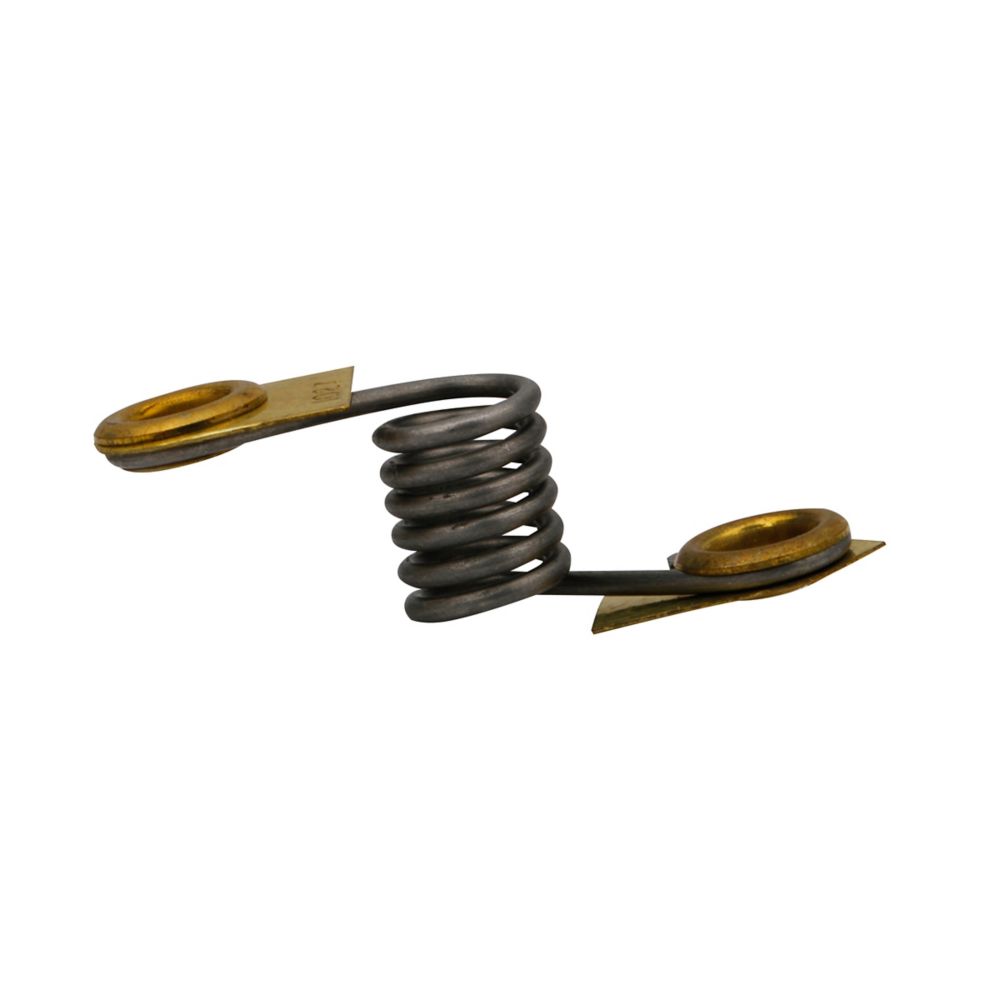

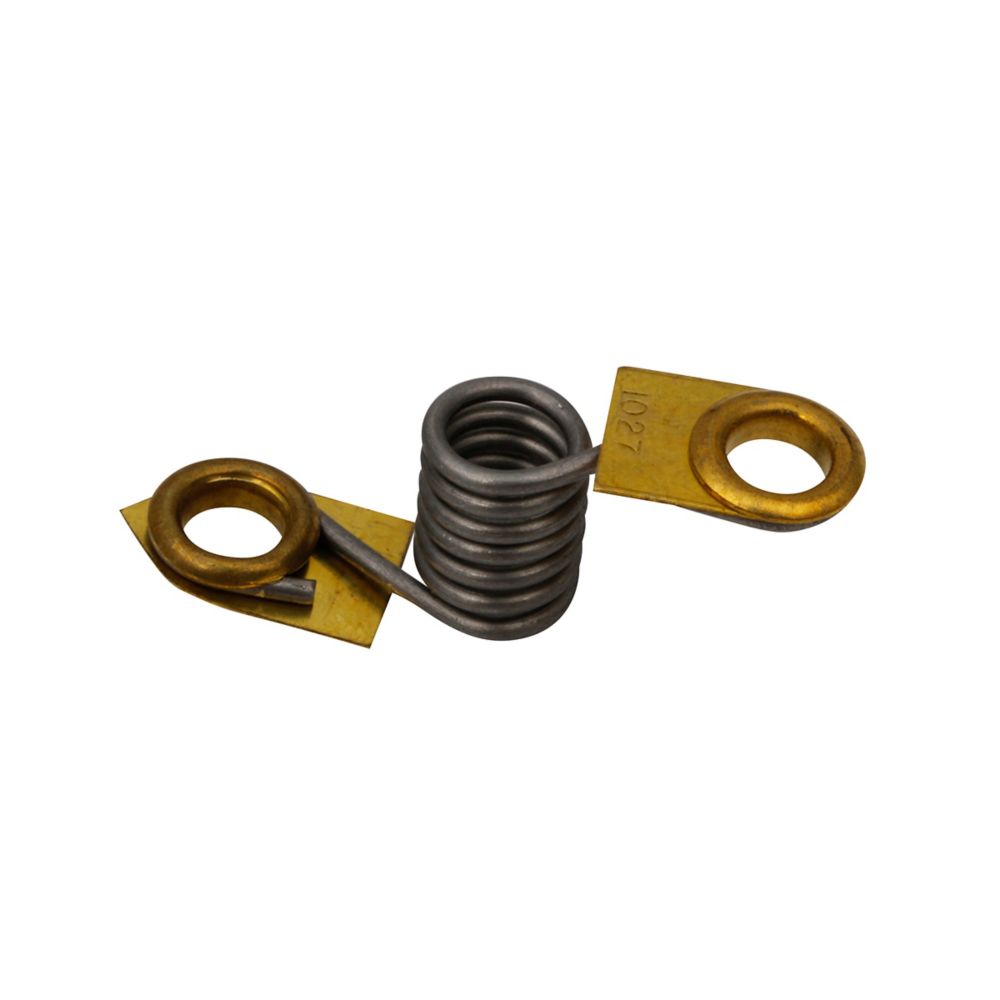

H1025 - Cutler Hammer Freedom NEMA Heater Coil for Motor Control, 2.45-2.93A, Citation Series

H1025

H1025 is a Cutler Hammer Freedom NEMA heater coil designed for use in motor control applications, specifically with Citation Controls. This heater coil provides reliable thermal overload protection for electric motors, ensuring safe and efficient operation in industrial environments. The H1025 heater coil is compatible with a range of Cutler Hammer contactors and motor starters, making it a versatile solution for motor protection. It is engineered to protect motors with a 40°C rise and is suitable for open and drip-proof motors with a service factor of 1.15, provided the motor and controller are at the same ambient temperature. The coil is designed for standard/slow trip applications and is rated for use with motors operating at 2.45 to 2.93 amps.

• Part Number: H1025
• Manufacturer: Cutler Hammer
• Type: Heater Coil
• Series: Citation
• Amperage Range: 2.45-2.93A
• Application: Motor Control
• Mounting: NEMA
• Special Features: Used with Citation Controls
• Dimensions: 0.8" H x 1.3" W x 2.1" D
• Weight: 0.01 lb
• UPC: 782113212593

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H1025
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : Citation Series
• Type : H
• Full Load Amp Minimum : 2.45
• Full Load Amp Maximum : 2.93

Product Data

• UPC : 782113212593
• GTIN : 00782113212593
• Country of Origin : Dominican Republic
• Dimensions : 2.1 in x 0.8 in x 1.3 in (Length/Depth x Height x Width)
• Weight : 0.01 lb
