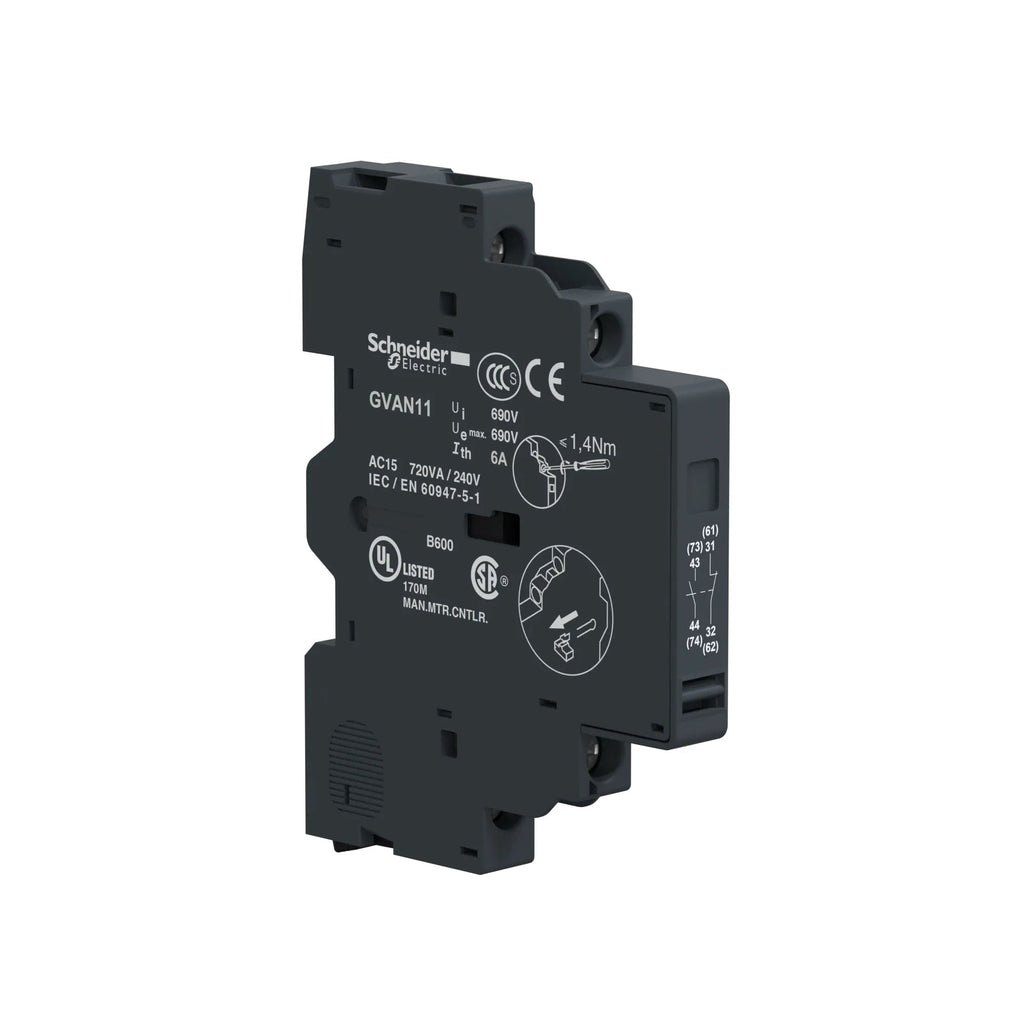

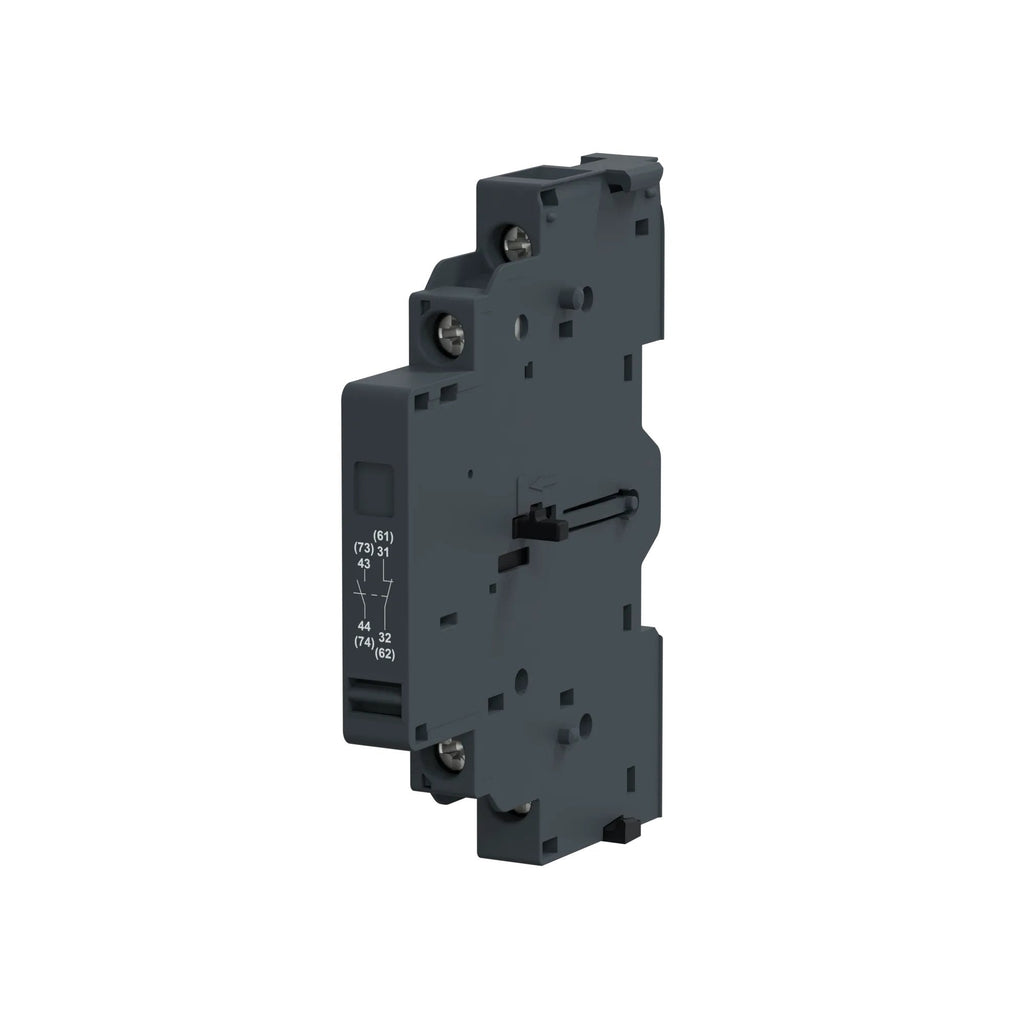

GVAN11 - Square D TeSys GV2 Manual Starter Auxiliary Contact Block 1NO+1NC 6A 690VAC 240VDC Side Mount

GVAN11

GVAN11 is a side-mounted auxiliary contact block designed for use with Square D TeSys GV2 and GV3 manual motor starters. This compact block provides one normally open (NO) and one normally closed (NC) contact for reliable signaling and control applications. The GVAN11 auxiliary contact block is engineered for easy installation on the left-hand side of compatible starters, increasing the overall width by only 8mm. It features screw terminals for secure connections and is suitable for both North American and European terminal markings. The contacts are rated for up to 6A at 690VAC and 240VDC, making it ideal for a wide range of industrial control circuits.

• Part Number: GVAN11
• Manufacturer: Square D
• Series: TeSys GV2, GV3
• Mounting Type: Side Mount
• Contacts: 1NO + 1NC
• Amperage: 6A
• Voltage: 690VAC, 240VDC
• Poles: 2
• Terminal Type: Screw
• Standards: UL 508 Listed, IEC/EN 60947-1, 60947-2, 60947-4-1, CSA C 22.2 n° 14-05, CE Marked
• Application: Manual Motor Starters GV2ME, GV2P, GV3P
• Weight: 0.11 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GVAN11
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : TeSys GV2
• Type : GV
• Voltage : 48 to 690 AC, 24 to 240 DC
• Configuration : 1NO
• Aux Contacts : 1 NO + 1 NC

Product Data

• UPC : 785901212430
• GTIN : 03389110343489
• Country of Origin : Czechia
• Dimensions : 3.5 in (89 mm) x 0.4 in (9.3 mm) x 2.6 in (66 mm) (Height x Width x Depth)
• Weight : 0.094
• Certification : UKCA
