Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor And Motor Starter Auxiliary
Description

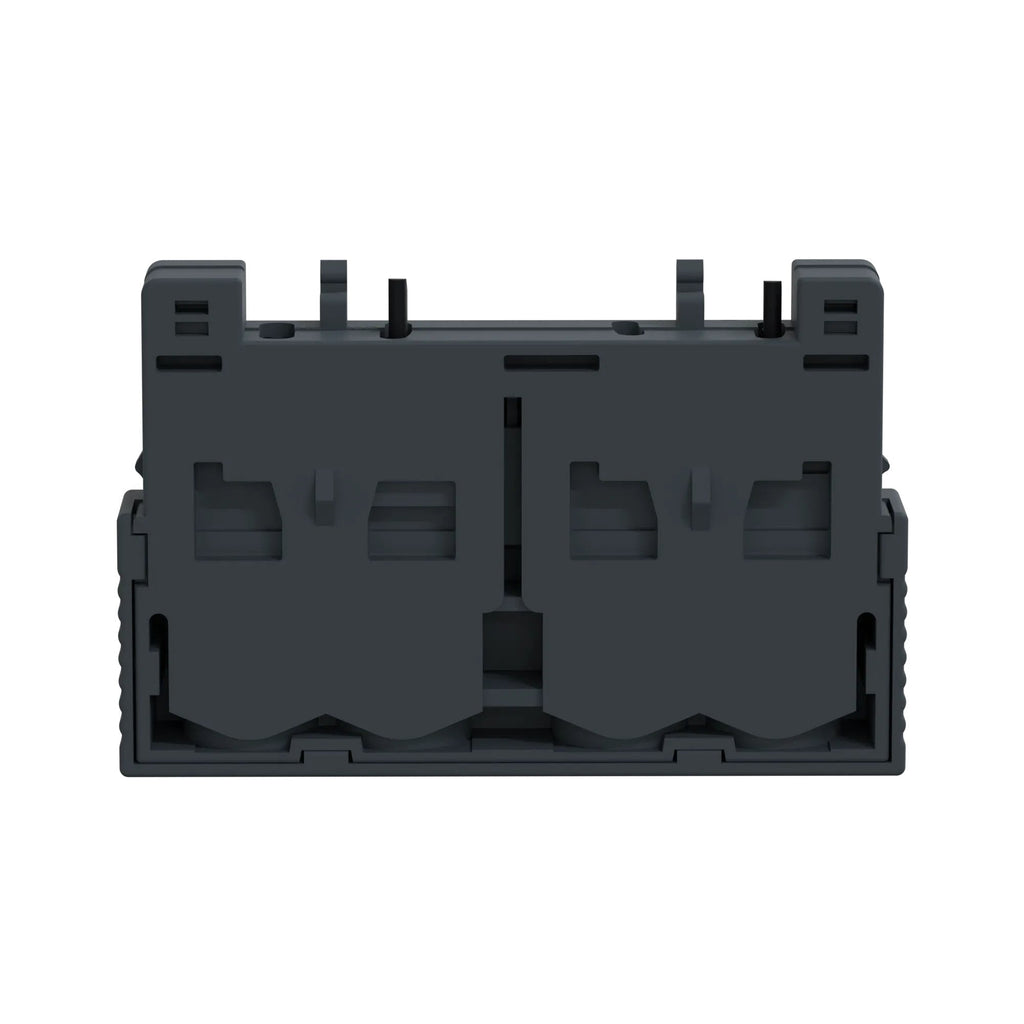

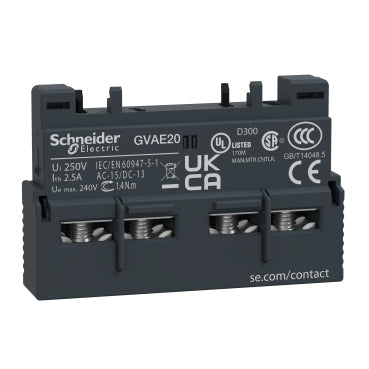

GVAE20
GVAE20 is a Square D TeSys GV2 auxiliary contact block designed for use with GV2 and GV3 motor starters and contactors. This block provides two normally open (2NO) contacts for remote signaling, status indication, and control circuit applications. The GVAE20 features a front-side mount design with screw terminals for secure wiring. It is rated for 2.5A at 24-240VAC and 24-60VDC, making it suitable for a wide range of industrial control environments. The block is compatible with GV2L, GV2LE, GV2ME, GV3P, and GV3L manual starters and contactors.
- Manufacturer: Square D
- Series: TeSys GV2
- Contact Configuration: 2NO
- Rated Voltage: 24-240VAC, 24-60VDC
- Rated Current: 2.5A
- Mounting Type: Front-side
- Electrical Connection: Screw Terminals
- Operating Cycles: 100,000
- Dimensions: 45mm W x 29mm D x 11mm H
- Weight: 0.04 lbs
- Standards: UL Listed, CSA Certified, RoHS Compliant
- Application: Motor starters, contactors, control circuits
Specifications
- Part Number: GVAE20
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Family : TeSys GV2
- Type : GV
- Voltage : 24 to 240 AC, 24 to 60 DC
- Configuration : 2NO
- Aux Contacts : 2 NO
Product Data
- UPC : 038911034346
- GTIN : 03389110343465
- Country of Origin : Czechia
- Dimensions : 0.4 in (11 mm) x 1.8 in (45 mm) x 1.1 in (29 mm) (Height x Width x Depth)
- Weight : 0.044
- Certification : UKCA
