GVAE1 Square D Contactor And Motor Starter Auxiliary

GVAE1

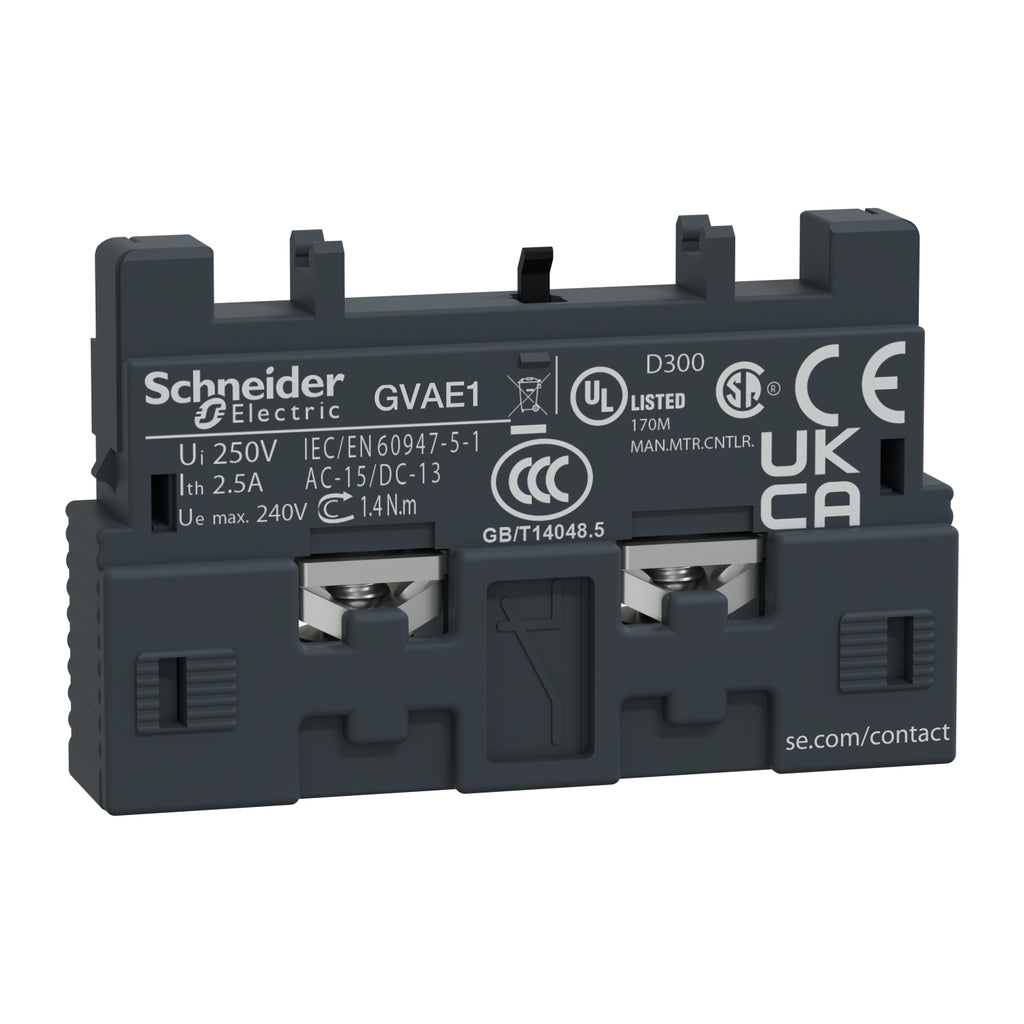

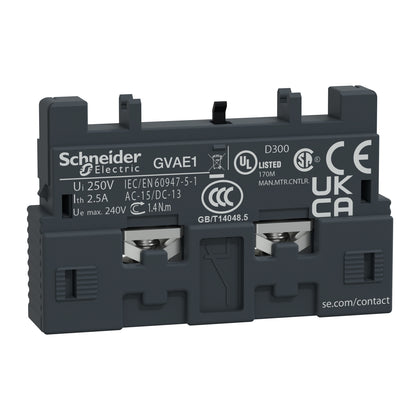

GVAE1 is a Schneider Electric auxiliary contact block designed for use with TeSys GV2 and GV3 motor circuit breakers, providing auxiliary signaling and control functions. This contact block includes 1 normally open (N.O.) and 1 normally closed (N.C.) contact and mounts to the right-hand side of the breaker without the need for tools. It is suitable for status indication, interlocking, or control circuit signaling in motor protection applications. The GVAE1 is UL Listed and CSA Certified for use in industrial control panels and automation systems.

• Manufacturer: Schneider Electric
• Series: TeSys GV2 / GV3 Motor Circuit Breakers
• Accessory Type: Auxiliary Contact Block
• Contact Configuration: 1 N.O. + 1 N.C.
• Mounting Location: Right-hand side of breaker
• Electrical Rating: Up to 6 A at 240 V AC
• Connection Type: Screw terminals
• Certifications: UL Listed, CSA Certified, IEC 60947-5-1
• Application: Auxiliary signaling and control for motor circuit breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GVAE1
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSH - Long-Time, Short-Time and High-Range Instantaneous
• Configuration : 1NO
• Aux Contacts : 1 NO/NC
• Protection : Solid State

Product Data

• UPC : 3389110343427
• GTIN : 03389110343427
• Country of Origin : Czechia
• Dimensions : 0.4 in (11 mm) x 1.8 in (45 mm) x 1.1 in (29 mm) (Height x Width x Depth)
• Weight : 0.025
