GV3P40 - Schneider Electric TeSys Deca Manual Motor Starter, 3 Pole, 30-40A, 690V, DIN Rail Mount, Thermal-Magnetic Trip, UL 508 Type E, EverLink Terminals

GV3P40

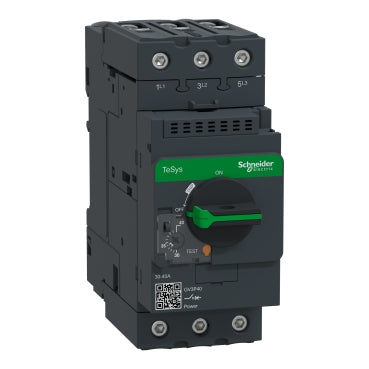

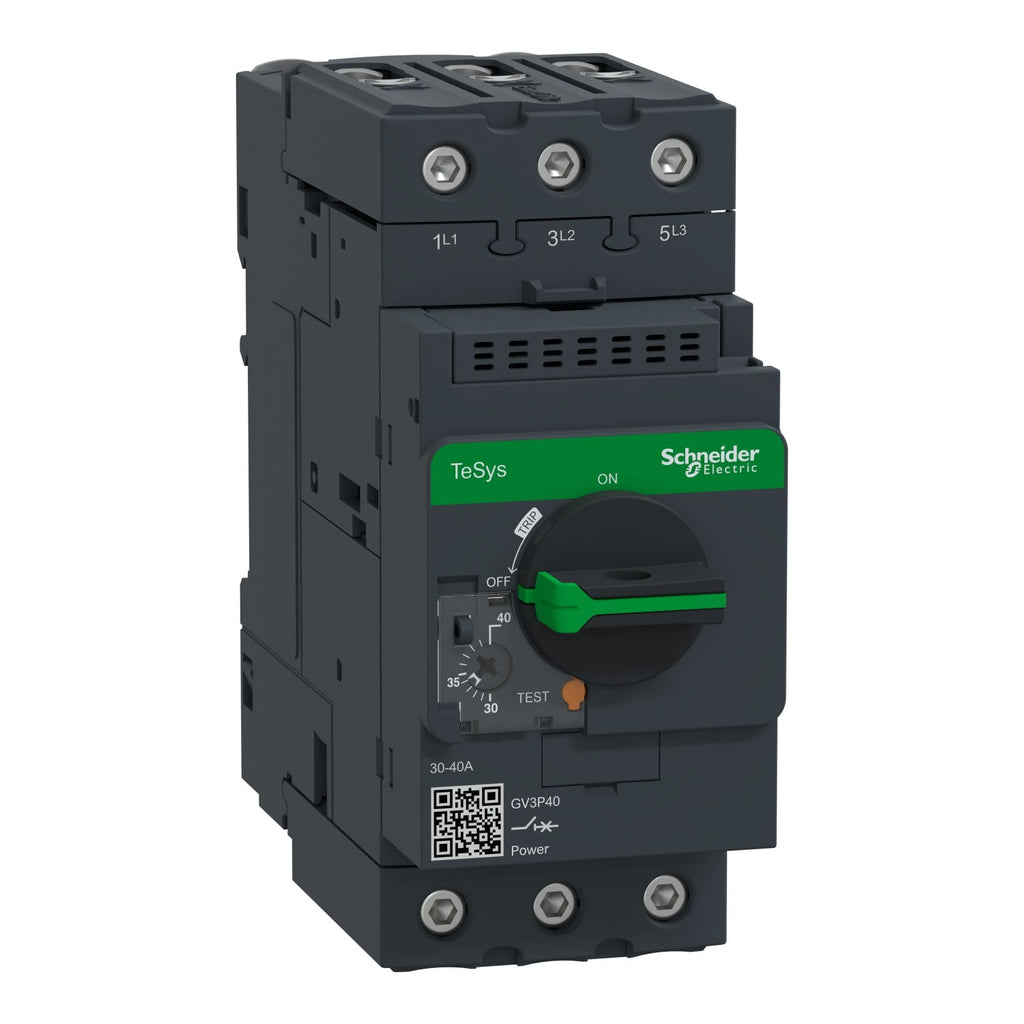

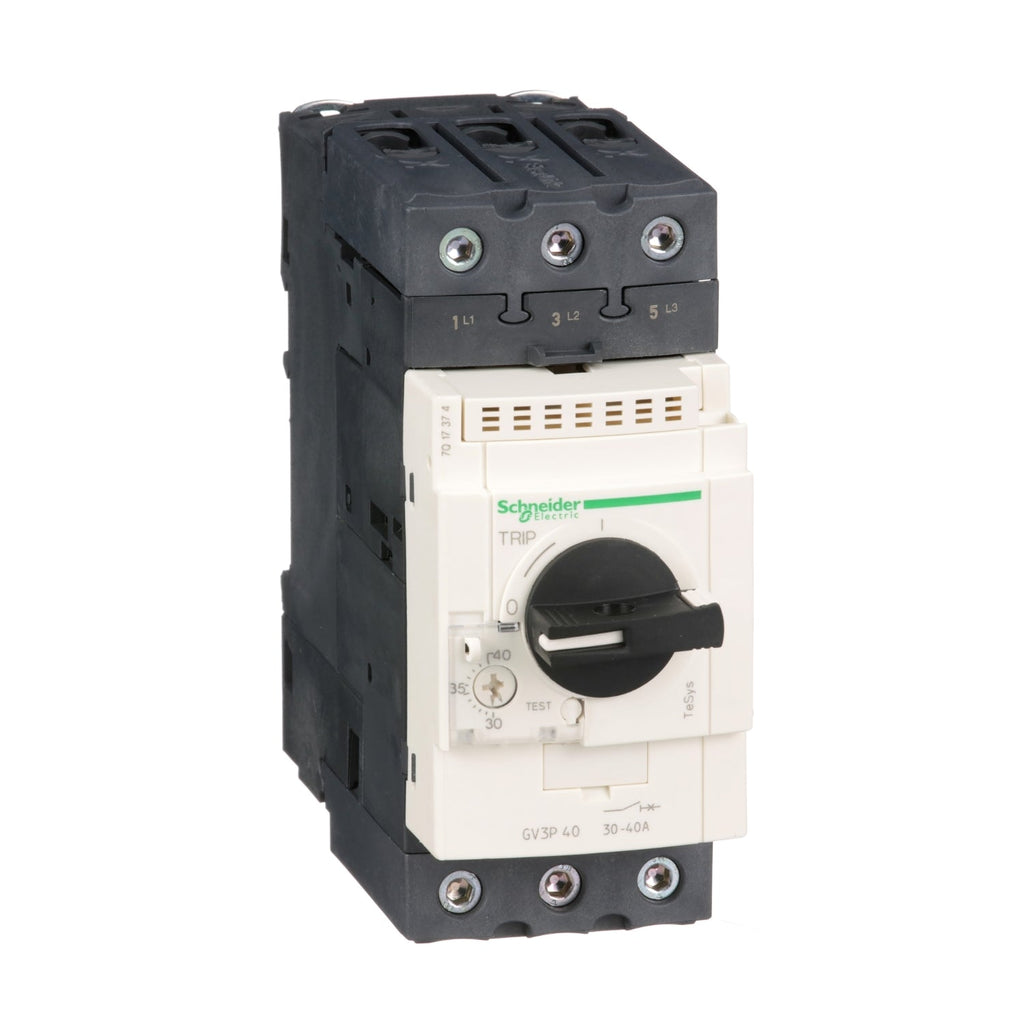

GV3P40 is a Schneider Electric TeSys Deca manual motor starter and protector designed for reliable motor control and overload protection in a compact, DIN rail-mounted package.

This 3-pole manual motor starter features a rotary operator, adjustable thermal overload relay (Class 10), and instantaneous magnetic trip mechanism, providing both manual isolation and automatic protection. It is suitable for a wide range of motor applications, with robust EverLink terminals for secure connections and compliance with international standards.

Key Specifications
• Amperage: Adjustable 30-40A
• Voltage: Up to 690V AC
• Poles: 3
• Mounting Type: 35mm DIN rail
• Interrupt Rating: 100% at 230/240V, 400/415V, 440V AC; 50% at 500V, 690V AC (IEC 60947-2)
• Series/Frame: TeSys Deca Frame 3 (GV3)
• Trip Unit: Thermal-magnetic, Class 10
• Terminals: EverLink BTR screw connectors
• Certifications: UL 508 Type E, EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Width: 55 mm
• Height: 132 mm
• Depth: 136 mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV3P40
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV3
• Type : GV3
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 10 hp HP @ 3 Phase - 480V 25 hp

Product Data

• UPC : 785901477204
• GTIN : 03389119405393
• Country of Origin : France
• Dimensions : 5.2 in (132 mm) x 2.2 in (55 mm) x 5.4 in (136 mm) (Height x Width x Depth)
• Weight : 2.167
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN/IEC, UL, CSA, CCC, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
