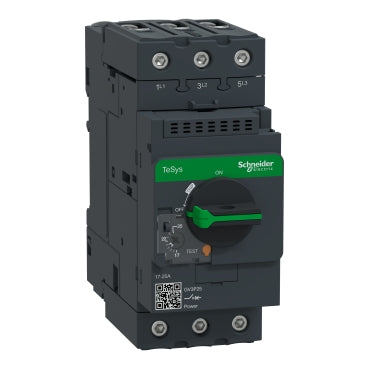

GV3P25 - Schneider Electric 17-25A 3-Pole Motor Starter Protector, Thermal Magnetic, DIN Rail Mount

GV3P25

GV3P25 is a Schneider Electric manual motor starter protector adjustable from 17 to 25 amps with thermal magnetic trip and 3 poles.GV3P25 features a rotary operator, Class 10 ambient compensated thermal overload relay, and mounts on a standard 35mm DIN rail. It includes EverLink terminals for reliable connections and provides thermal-magnetic protection for motors up to 11 kW at 400V. This compact device is designed for easy installation with screw terminals and offers a high interrupt rating suitable for motor control applications.

• Amperage range: 17-25 A adjustable
• Voltage rating: up to 690 V
• Poles: 3-pole (3P)
• Mounting type: Standard 35mm DIN rail
• Trip unit: Thermal magnetic with Class 10 overload
• Interrupt rating: High breaking capacity (Icu 100kA)
• Series/Frame: TeSys Deca
• Terminals: EverLink BTR connectors
• Certifications: UL 508 Type E standalone self-protected
• Application: Motor protection and control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV3P25
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV3
• Type : GV3
• Voltage : 6
• Amperage : 25
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 038911940537
• GTIN : 03389119405379
• Country of Origin : France
• Dimensions : 5.2 in (132 mm) x 2.2 in (55 mm) x 5.4 in (136 mm) (Height x Width x Depth)
• Weight : 2.189
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : IEC, UL, CSA, CCC, EAC, Marine, ATEX, LROS, BV, ABS, DNV-GL, UKCA,
