GV3P18 - Schneider Electric TeSys Deca Manual Motor Starter 3-Pole 12-18A 690VAC Thermal-Magnetic

GV3P18

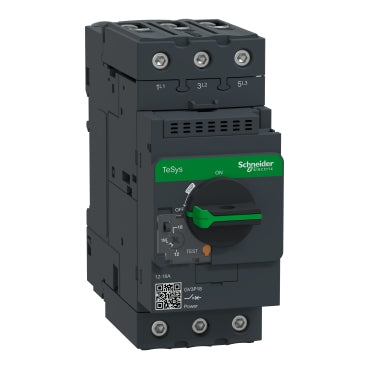

GV3P18 is a Schneider Electric TeSys Deca manual motor starter and protector designed for motor control applications with a 3-pole configuration and adjustable current range of 12 to 18 Amperes at up to 690 VAC.This motor circuit breaker provides reliable thermal-magnetic protection for 3-phase motors up to 7.5 kW at 400V, featuring a rotary knob for start-stop control and EverLink BTR screw terminals for secure wiring. It supports a high interrupt rating of up to 100 kA at lower voltages and 6 kA at 690 VAC, ensuring robust short-circuit and overload protection. The device mounts easily on 35mm DIN rails or directly on panels and complies with UL, CSA, and IEC certifications.

• Amperage: 12-18 A adjustable
• Voltage rating: up to 690 VAC
• Poles: 3-pole (3P)

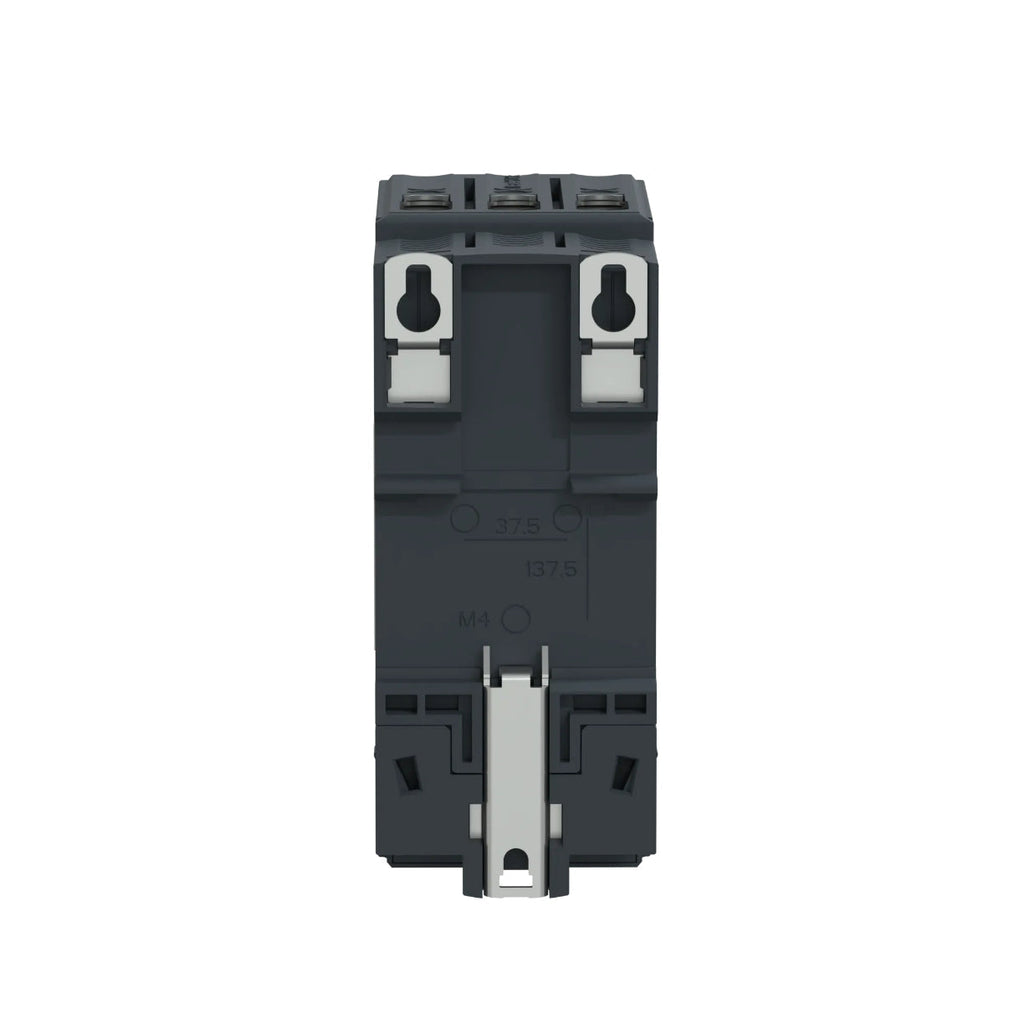

• Mounting: 35mm DIN rail or panel mount
• Interrupt rating: 100 kA at 230/400 V, 6 kA at 690 V
• Trip unit: Thermal-magnetic
• Terminals: EverLink BTR screw connectors
• Motor power rating: 7.5 kW at 400 V
• Control: Rotary knob start-stop
• Certifications: UL, CSA, IEC
• Operating temperature range: -4°F to 140°F
• Series/Frame: TeSys Deca GV3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV3P18
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV3
• Type : GV3
• Voltage : 6
• Amperage : 18
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 038911940536
• GTIN : 03389119405362
• Country of Origin : France
• Dimensions : 5.2 in (132 mm) x 2.2 in (55 mm) x 5.4 in (136 mm) (Height x Width x Depth)
• Weight : 2.196
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : IEC, UL, CSA, CCC, EAC, Marine, ATEX, LROS, BV, ABS, DNV-GL, UKCA,
