GV3P13 - Schneider Electric TeSys Deca Manual Motor Starter, 3 Pole, 9-13A, 690V, Thermal-Magnetic

GV3P13

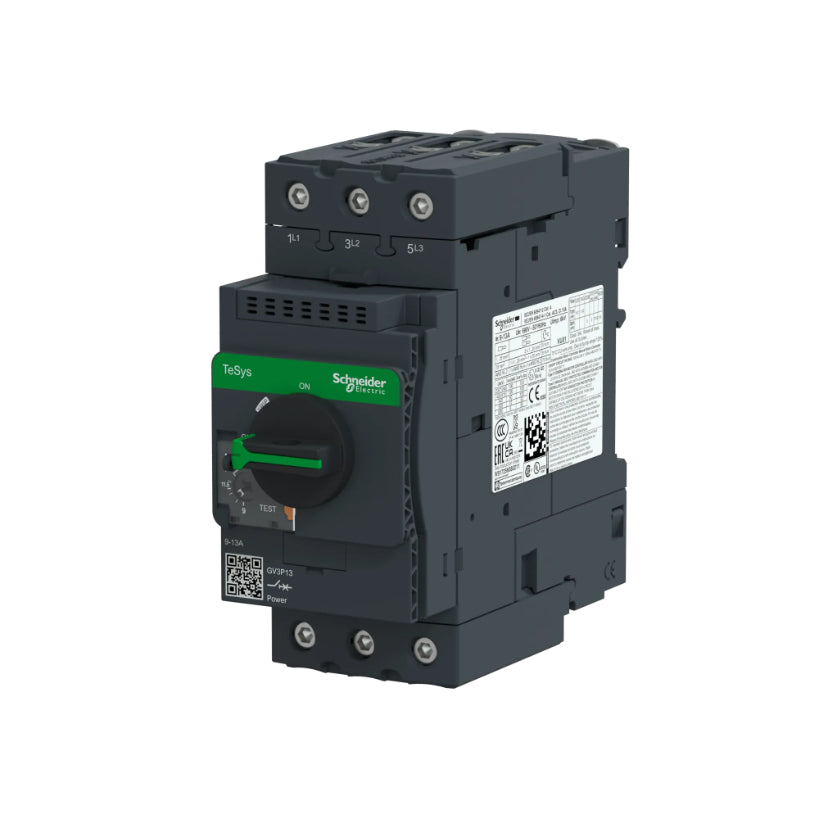

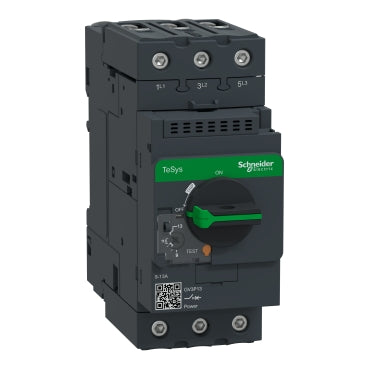

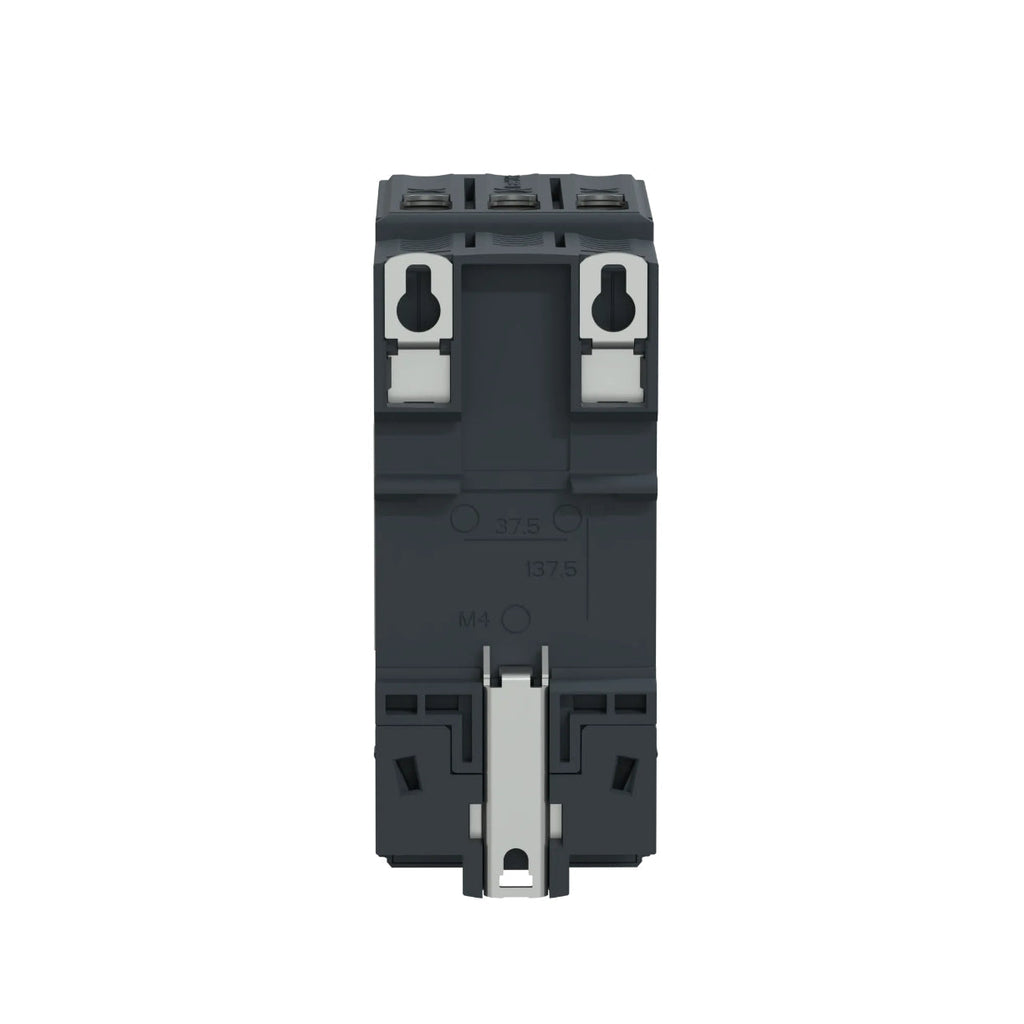

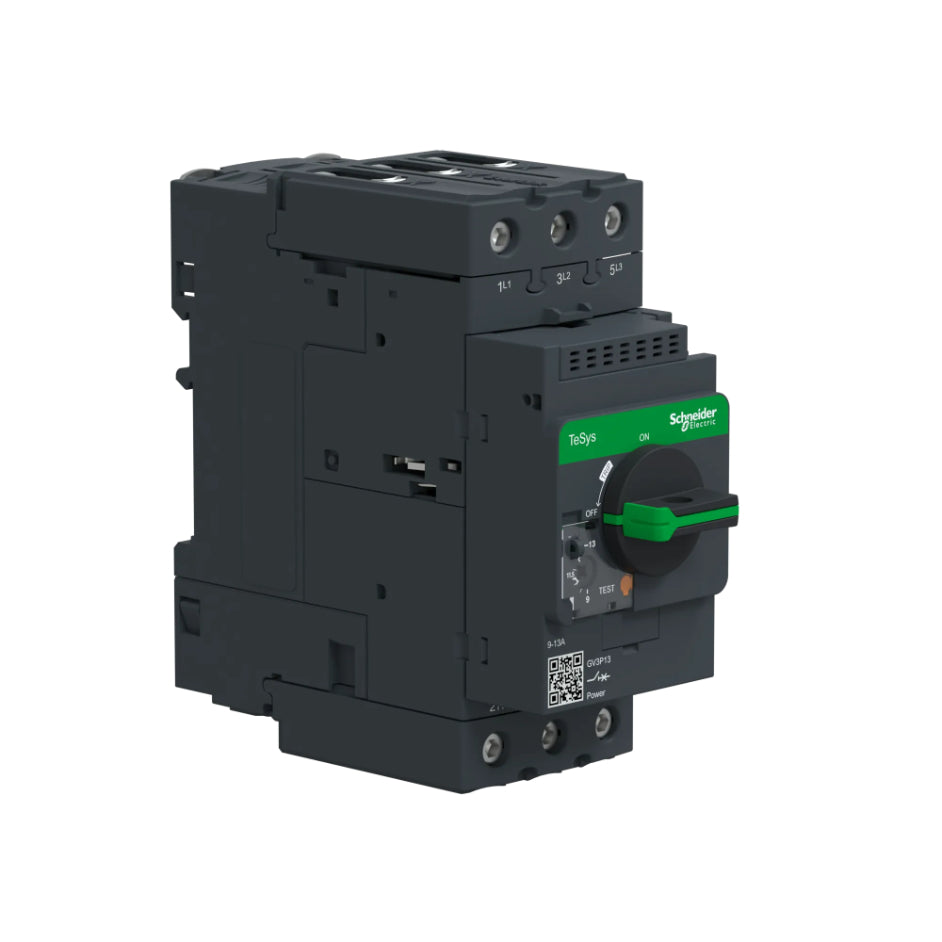

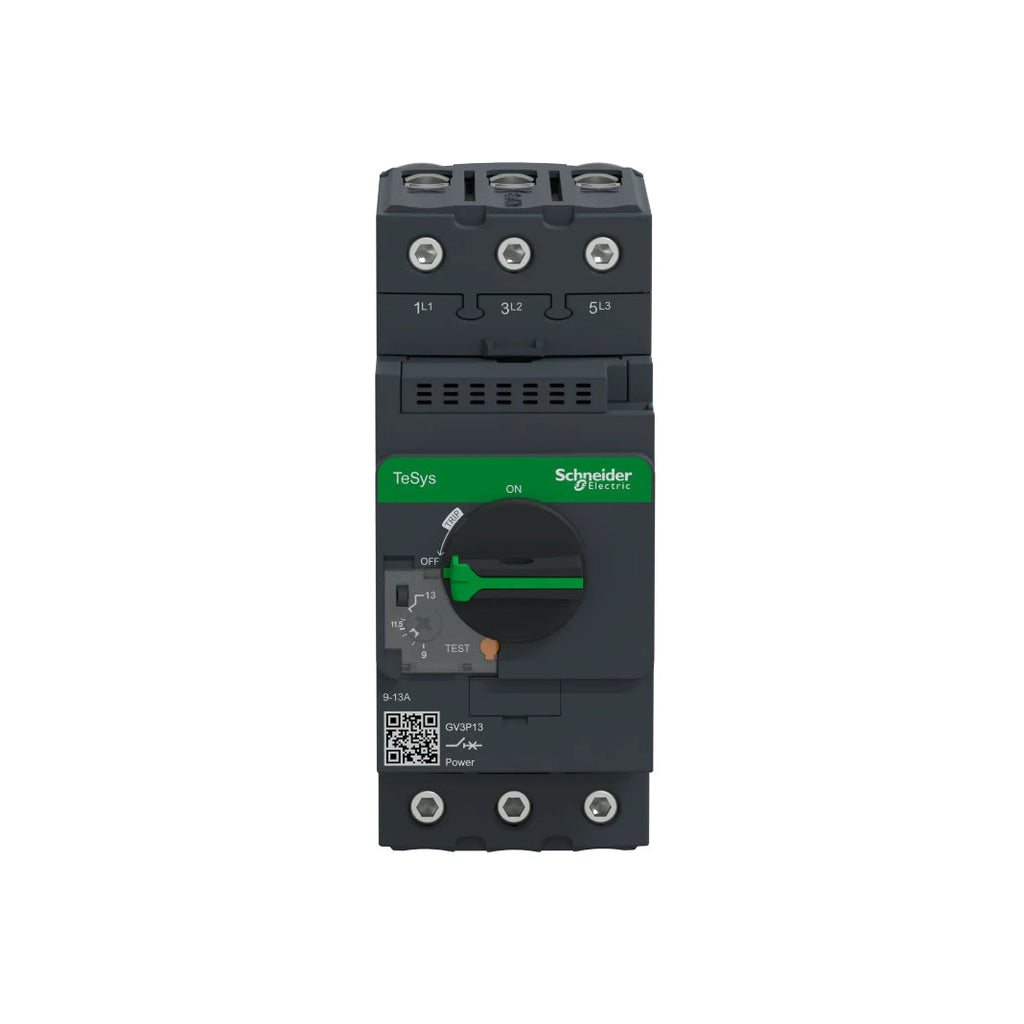

GV3P13 is a Schneider Electric TeSys Deca manual motor starter and protector designed for reliable motor control and protection. GV3P13 offers thermal-magnetic protection with a rated current adjustable from 9 to 13 Amperes and supports motors up to 5.5 kW at 400V AC. It features a 3-pole configuration and is rated for operational voltages up to 690V AC at 50/60 Hz.The device integrates manual isolation, motor control, and thermal overcurrent protection in a compact unit. It has a high breaking capacity (Icu) of 100 kA at 230/240V and 400/415V AC, ensuring safe fault clearing. The starter uses EverLink BTR connectors for secure power connections and is suitable for industrial motor applications requiring robust protection and easy operation.

Key Specifications
• Manufacturer: Schneider Electric
• Series: TeSys Deca GV3
• Type: Manual Motor Starter/Protector
• Poles: 3
• Adjustable Current Range: 9-13 A
• Rated Operational Voltage: 690V AC, 50/60 Hz
• Motor Power Rating: Up to 5.5 kW at 400V AC
• Breaking Capacity (Icu): 100 kA at 230/240V and 400/415V AC
• Trip Unit: Thermal-Magnetic
• Terminals: EverLink BTR connectors
• Certifications: IEC 60947-2 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV3P13
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV3
• Type : GV3
• Voltage : 6
• Amperage : 13
• Phase : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 7 1/2 hp

Product Data

• UPC : 038911940535
• GTIN : 03389119405355
• Country of Origin : France
• Dimensions : 5.2 in (132 mm) x 2.2 in (55 mm) x 5.4 in (136 mm) (Height x Width x Depth)
• Weight : 2.165
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : IEC, UL, CSA, CCC, EAC, Marine, ATEX, LROS, BV, ABS, DNV-GL, UKCA,
