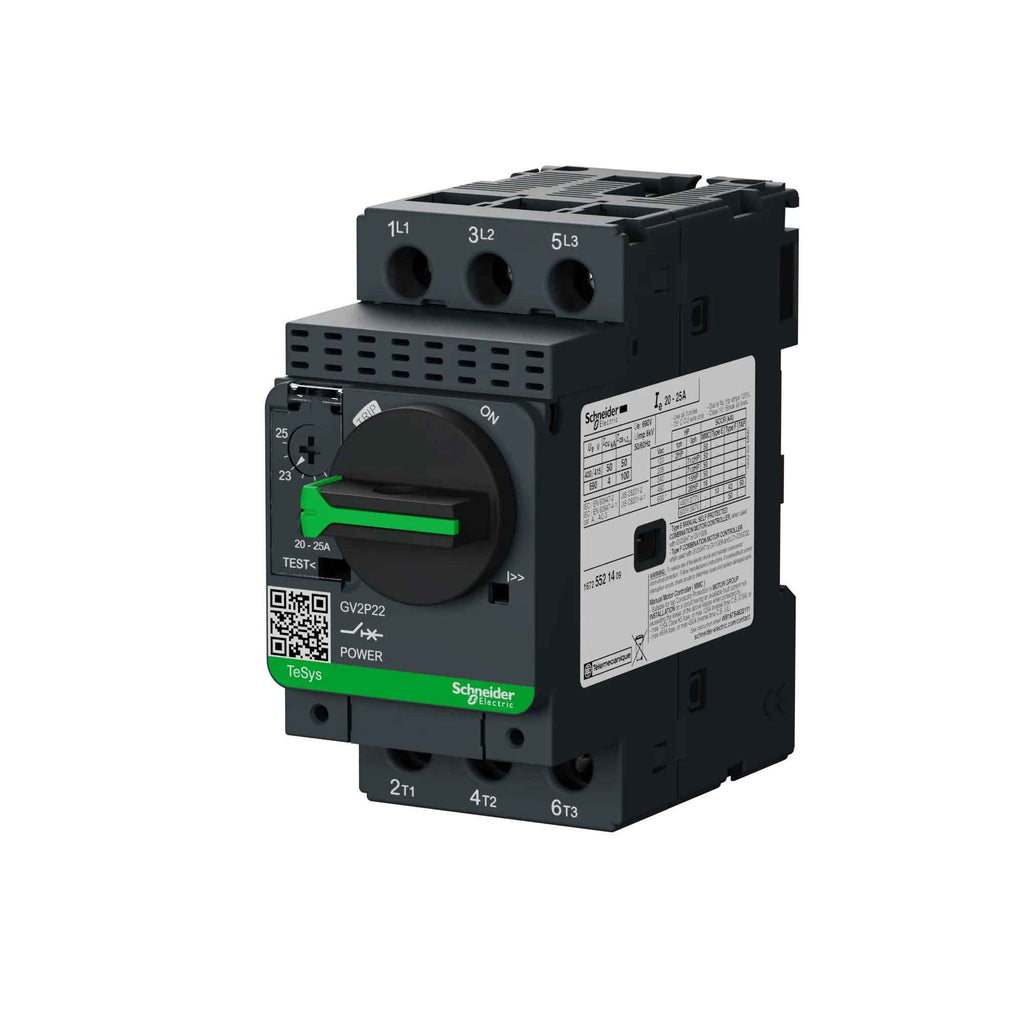

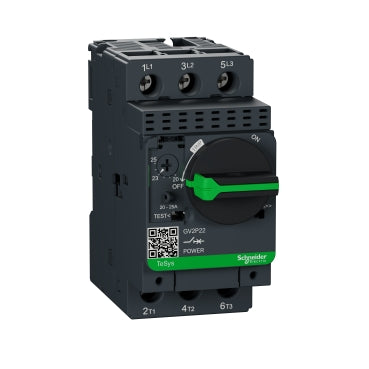

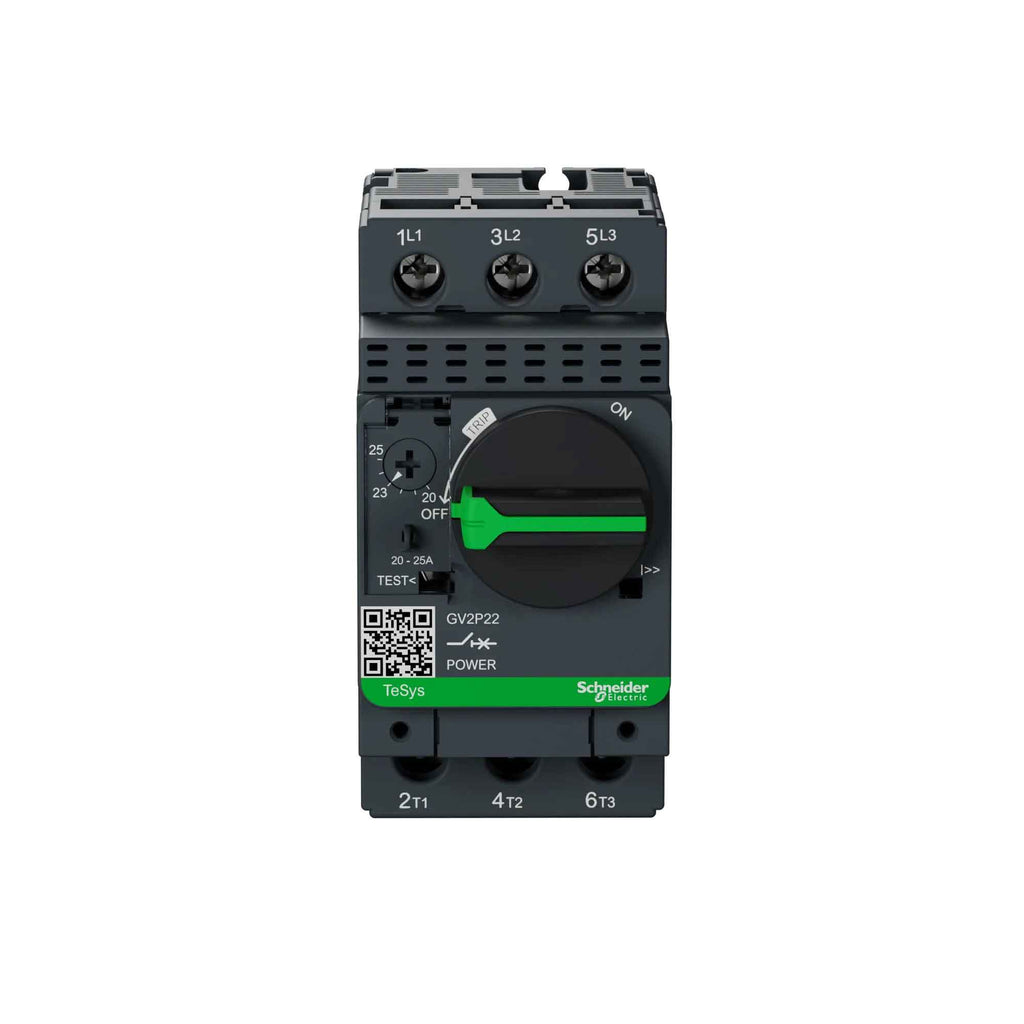

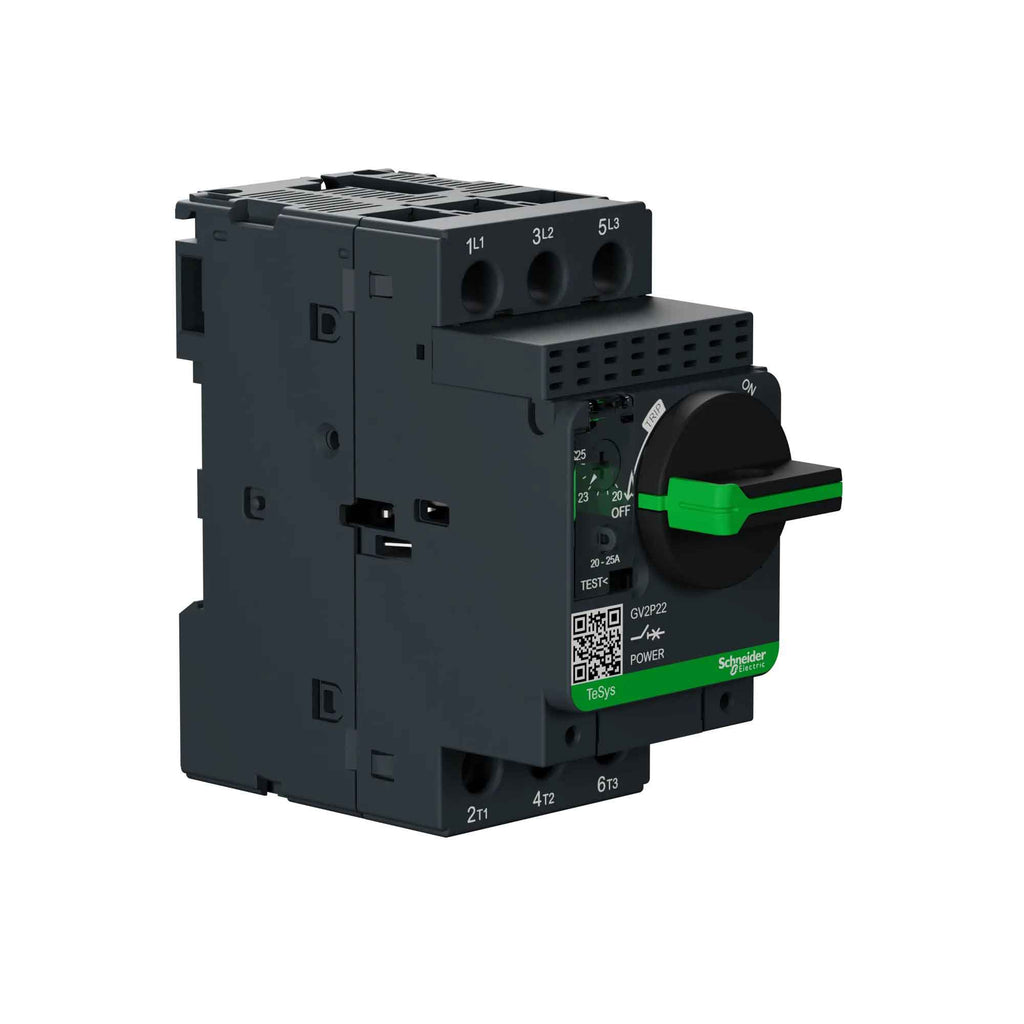

GV2P22 - Square D 25 Amp 600V 3-Pole Thermal Magnetic Motor Starter TeSys GV2

GV2P22

GV2P22 is a 3-pole thermal magnetic motor starter from Square D's TeSys GV2 series designed for motor protection and control.This manual starter provides reliable motor isolation, thermal overload, and short circuit protection with a rotary knob control. It supports up to 25 amps and 600 volts AC, suitable for three-phase motors with horsepower ratings up to 20 HP at 600V. The unit features screw clamp terminals and can be mounted on a 35 mm DIN rail or panel with screws. It meets IEC standards for AC-3 utilization category and offers breaking capacities up to 100 kA at lower voltages.

Key Specifications
• Manufacturer: Square D
• Part Number: GV2P22
• Amperage: 25 A
• Voltage Rating: 600 V AC
• Poles: 3
• Trip Unit: Thermal Magnetic
• Control Type: Rotary knob

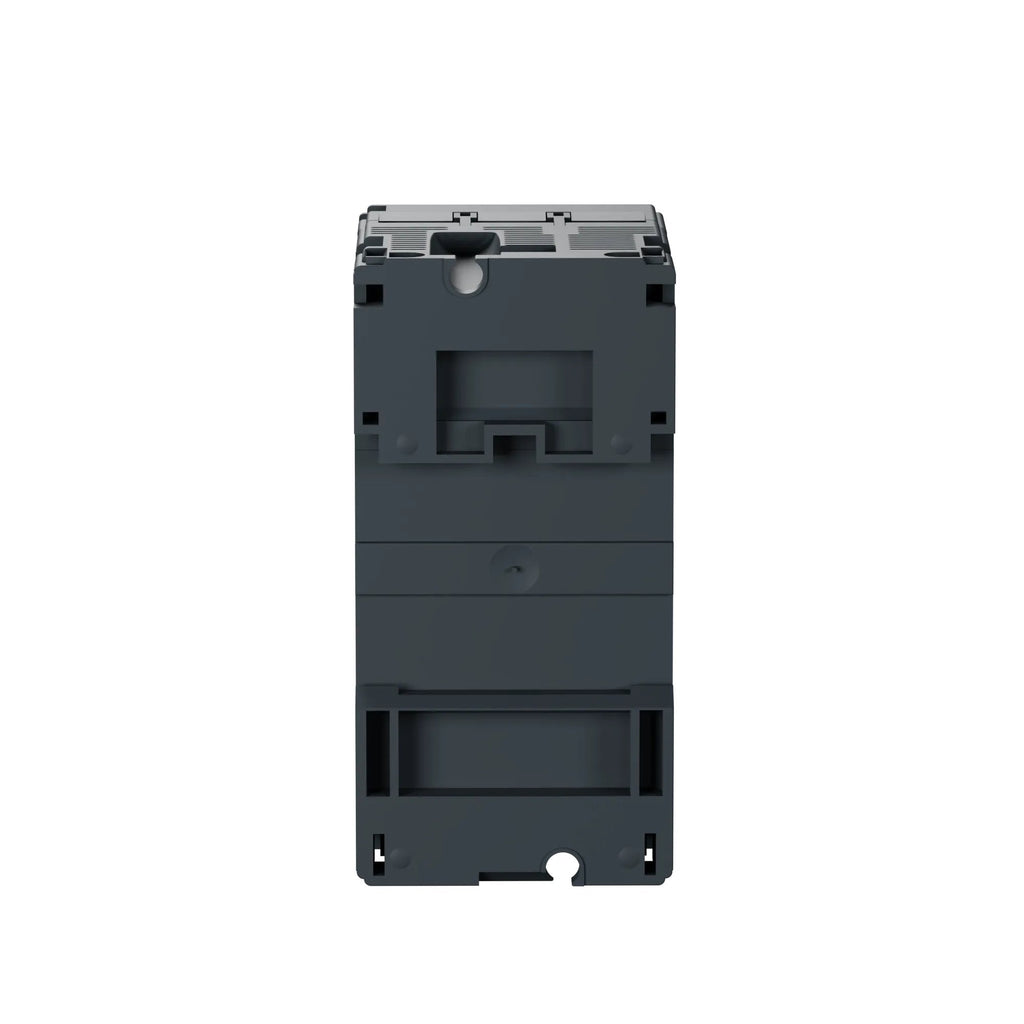

• Mounting: DIN rail clip or panel screw
• Interrupt Rating: Up to 100 kA Icu (varies by voltage)
• Series/Frame: TeSys GV2
• Certifications: IEC 60947-2, IEC 60947-4-1 compliant
• Enclosure: IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2P22
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 15 hp
• Nema Rating : 00

Product Data

• UPC : 038911021353
• GTIN : 03389110213539
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 0.75
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
