GV2P21 - Square D 3-Pole Motor Starter 17-23A 600V Thermal Magnetic Rotary Handle

GV2P21

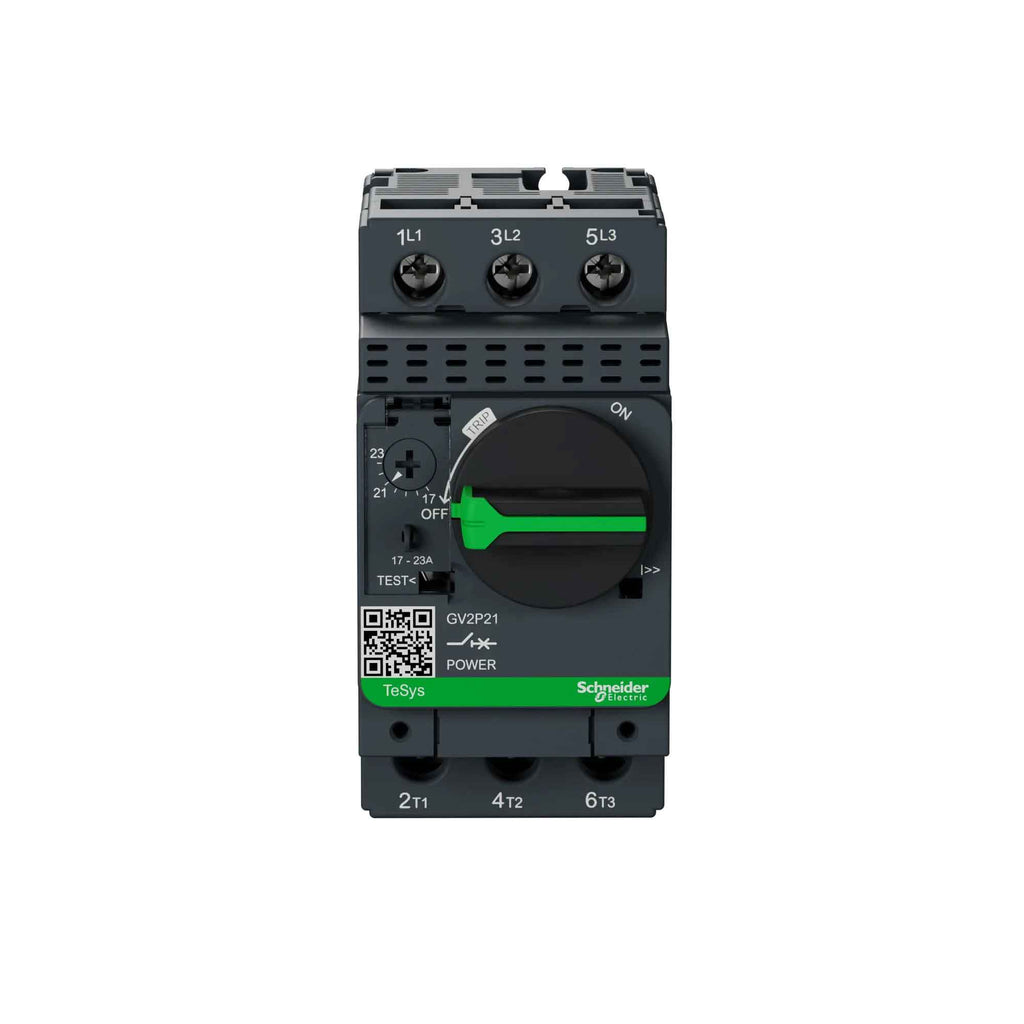

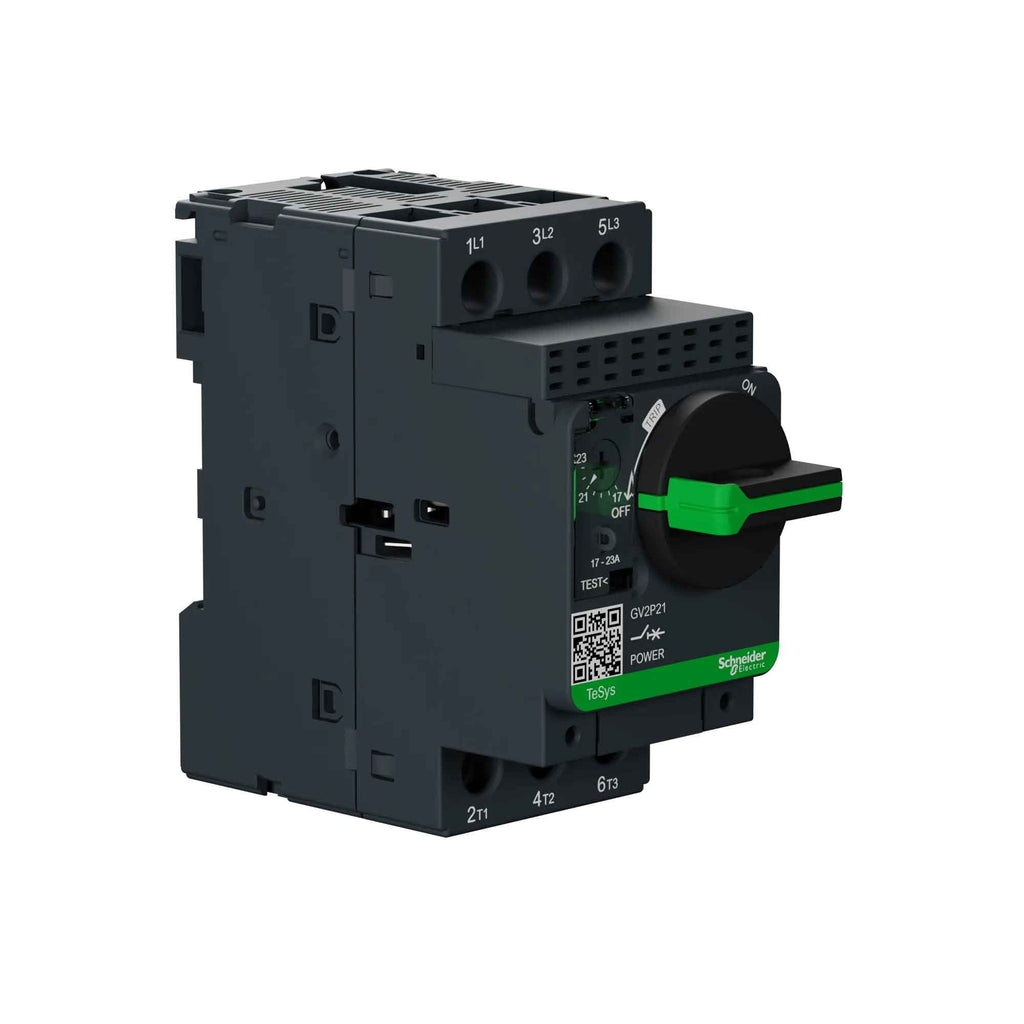

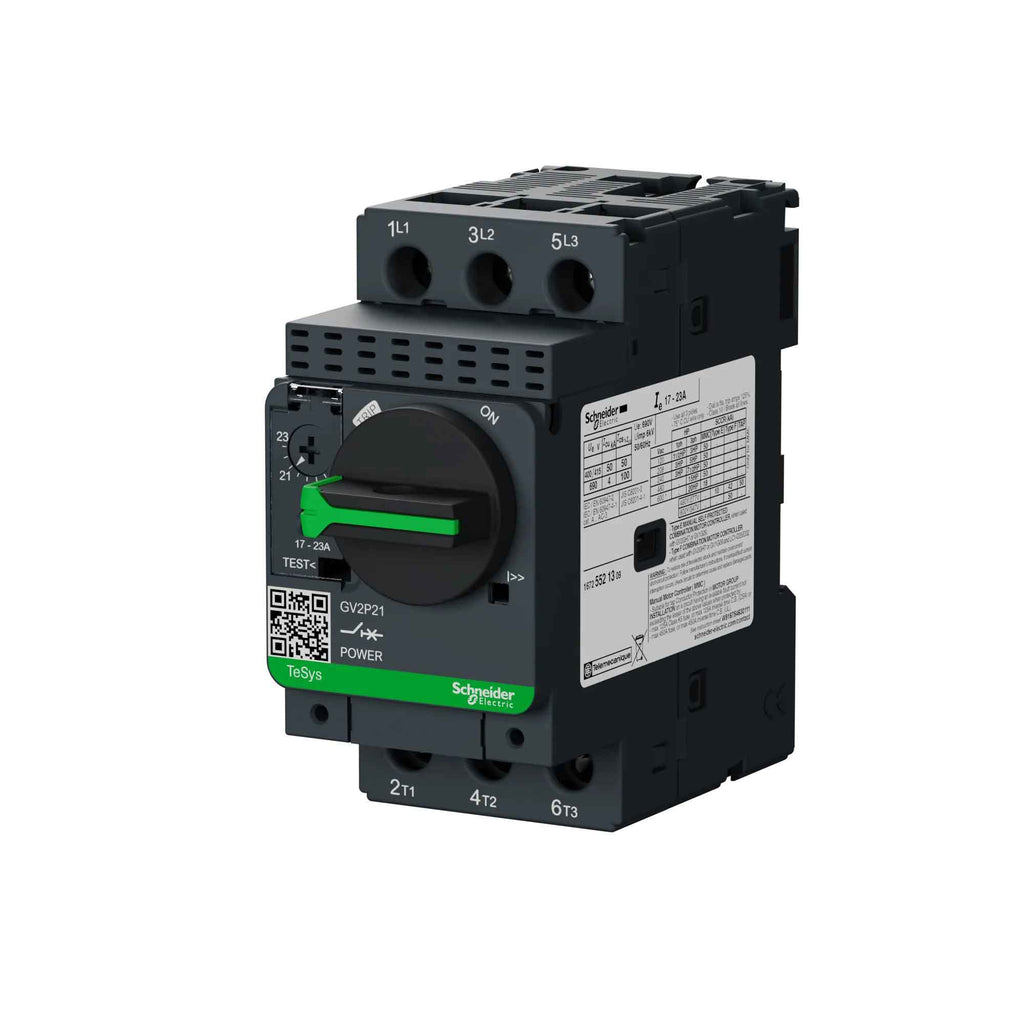

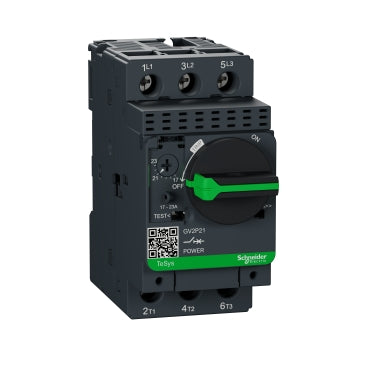

GV2P21 is a Square D 3-pole motor starter with thermal magnetic protection and rotary handle control for manual motor isolation and overload protection.This TeSys GV2 series manual motor starter supports full load currents adjustable from 17 to 23 amps and operates at up to 600 volts AC. It features a thermal magnetic bi-metallic overload trip unit, screw clamp terminals, and is suitable for use with LC1D motor control systems. The device provides manual start-stop control with a rotary knob rated for 100,000 cycles and complies with multiple standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX certifications.

• Manufacturer: Square D (Schneider Electric)
• Series/Frame: TeSys GV2
• Poles: 3
• Amperage Range: 17-23 A adjustable
• Voltage Rating: 600 V AC
• Trip Unit: Thermal magnetic bi-metallic overload
• Mounting Type: DIN Rail
• Interrupt Rating: High breaking capacity (Icu 50kA)
• Control: Rotary handle/manual start-stop
• Terminals: Screw clamp
• Certifications: IEC, UL, CSA, CCC, EAC, Marine, ATEX
• Horsepower Ratings: 5HP @ 200V, 7.5HP @ 240V, 15HP @ 480V, 20HP @ 600V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2P21
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 23
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 15 hp
• Nema Rating : 00

Product Data

• UPC : 038911021352
• GTIN : 03389110213522
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 0.739
• Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
