GV2P20 - Schneider Electric 18A 600V 3-Pole Motor Starter TeSys GV2 Series

GV2P20

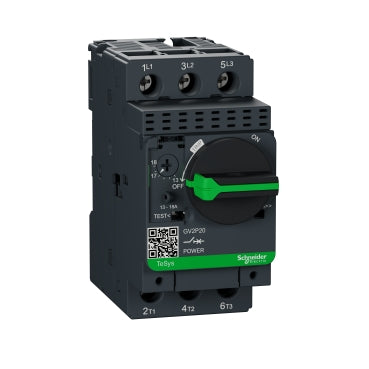

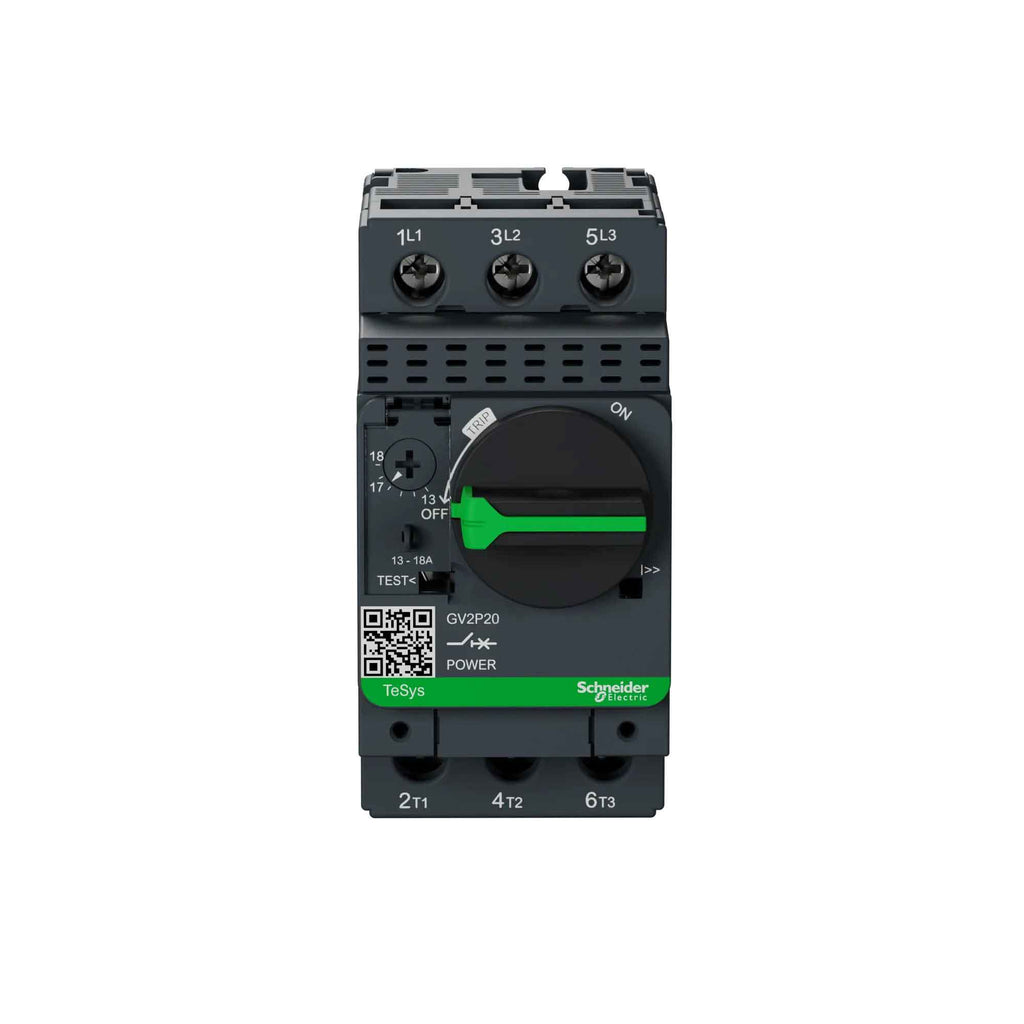

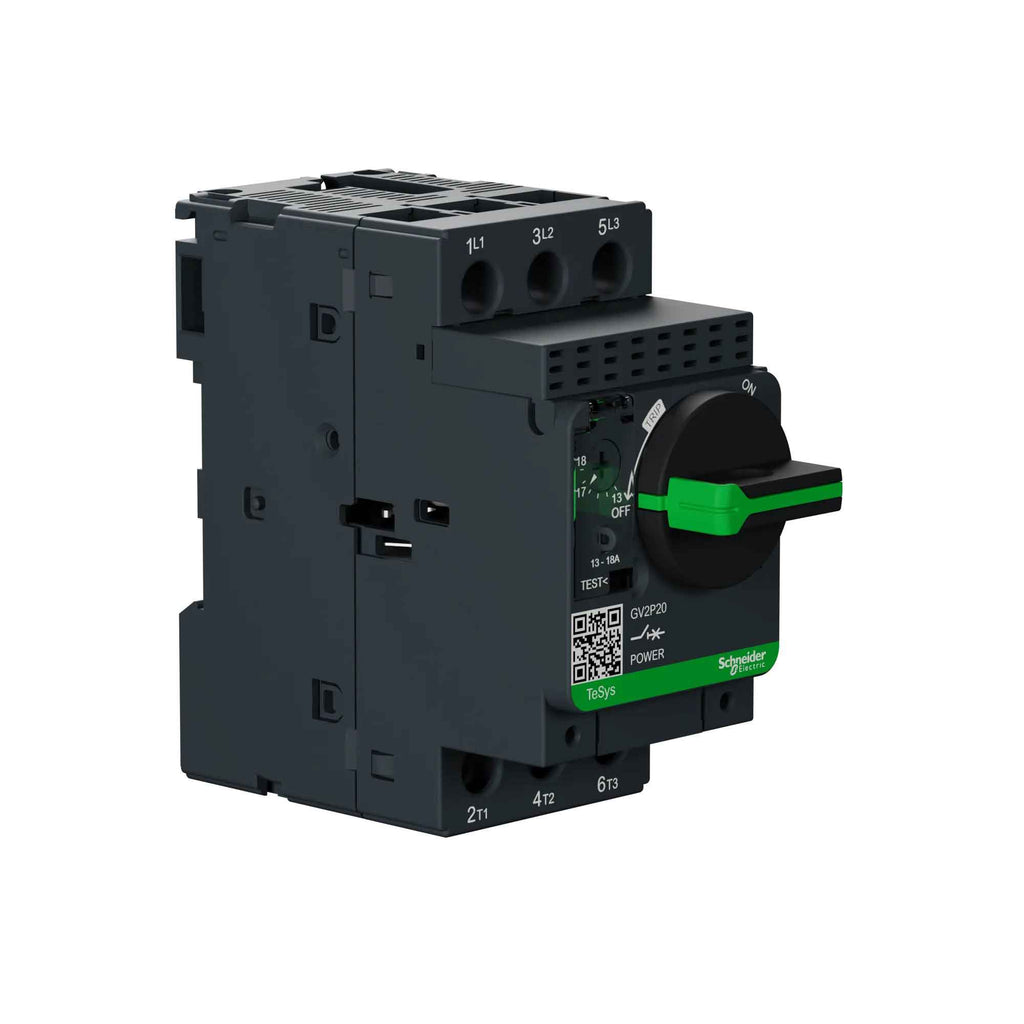

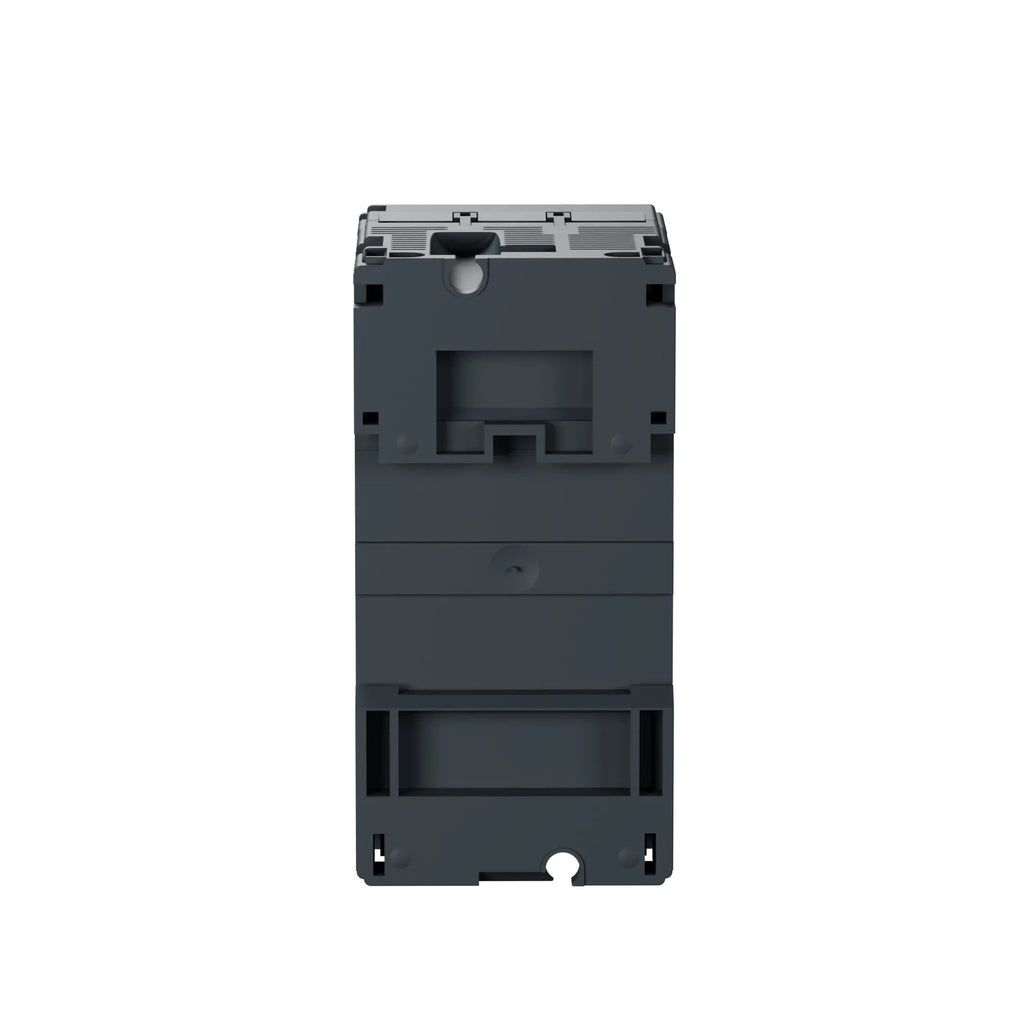

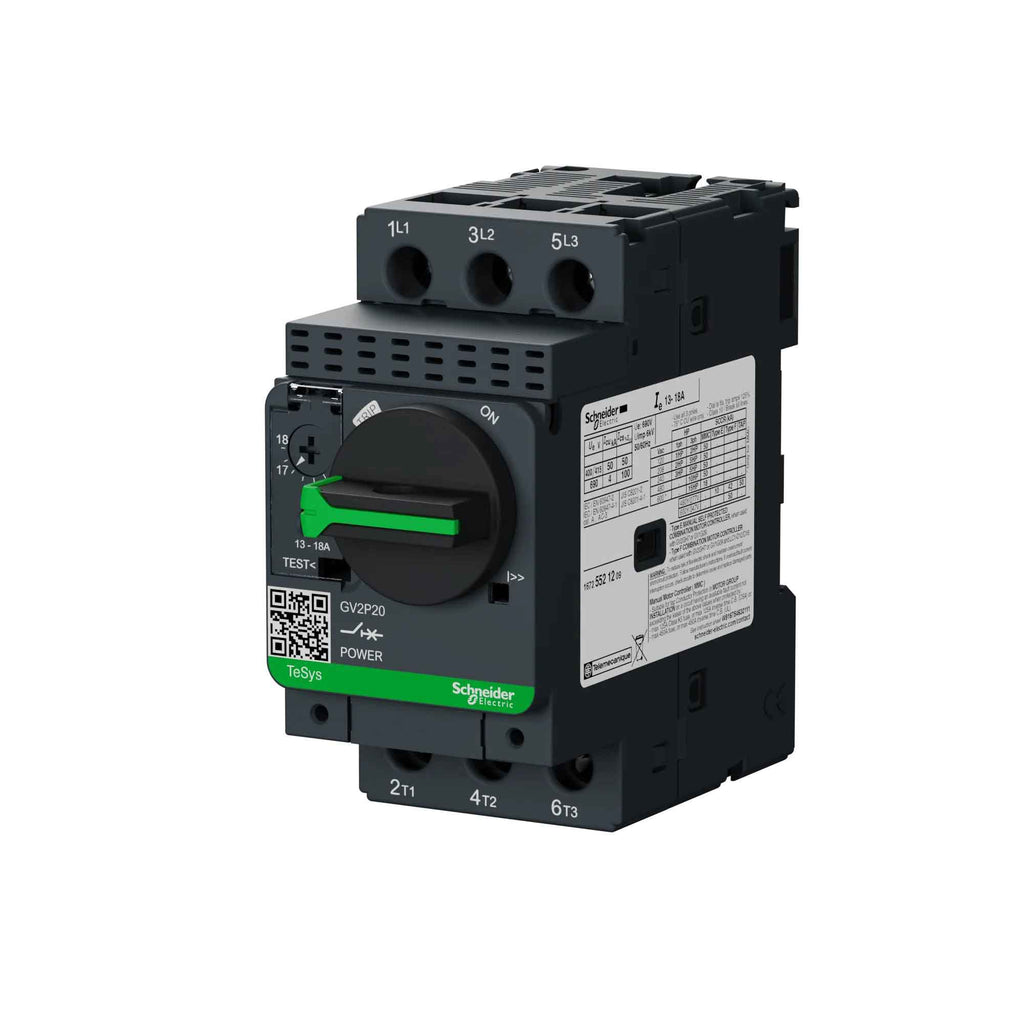

GV2P20 is a Schneider Electric 3-pole motor starter designed for motor control applications with an 18 amp rating and 600 volt capacity.This TeSys GV2 series manual motor starter provides thermal-magnetic protection with a trip range of 13 to 18 amps. It features screw clamp terminals, a rotary handle, and is suitable for 3-phase motors up to 7.5 kW at 400V. The device offers reliable overload and short circuit protection with a short circuit release rating of 223A and an interrupt rating up to 10 kA at 500V. It is designed for easy installation and operation with multi-standard screws and EverLink terminals.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: GV2P20
• Series/Frame: TeSys GV2
• Poles: 3
• Amperage: 18A (adjustable 13-18A)
• Voltage: 600V AC
• Phase: 3-phase
• Trip Unit: Thermal-magnetic
• Interrupt Rating: 10 kA at 500V AC
• Mounting Type: Manual starter with rotary handle
• Terminal Type: Screw clamp terminals
• Certifications: IEC 60947-2 compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GV2P20
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
• Nema Rating : 00



Product Data

• UPC : 038911021351
• GTIN : 03389110213515
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 0.736
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN, IEC, CCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
