GV2P08 - Square D TeSys GV2 3-Pole 4A 690VAC Thermal Magnetic Motor Starter

GV2P08

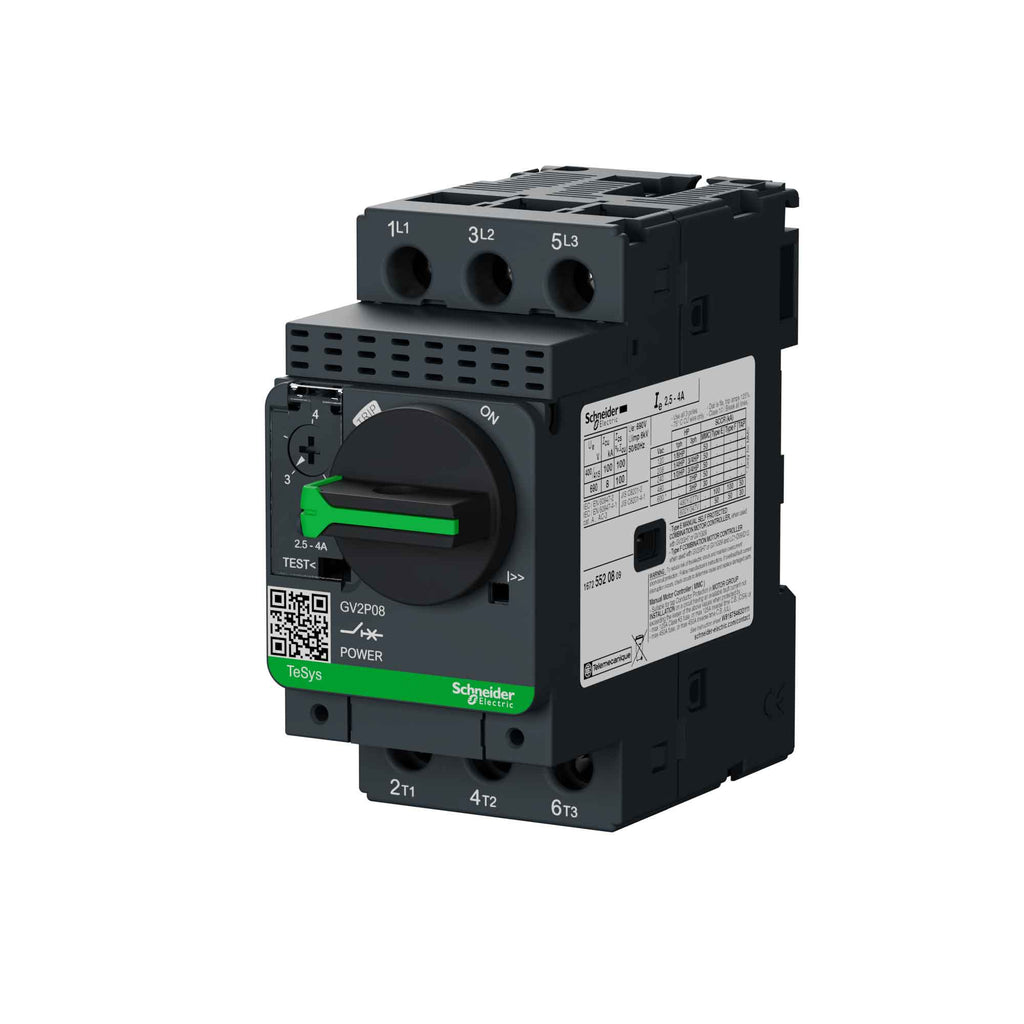

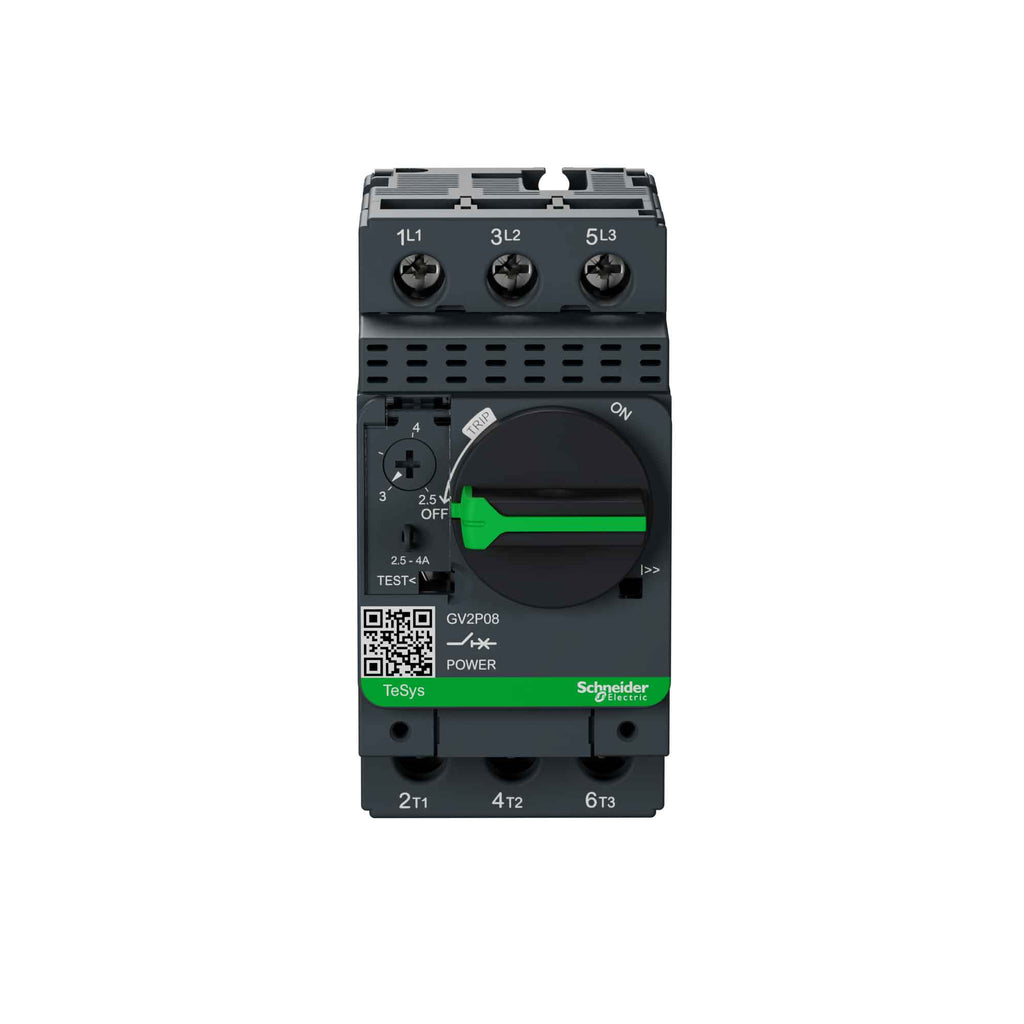

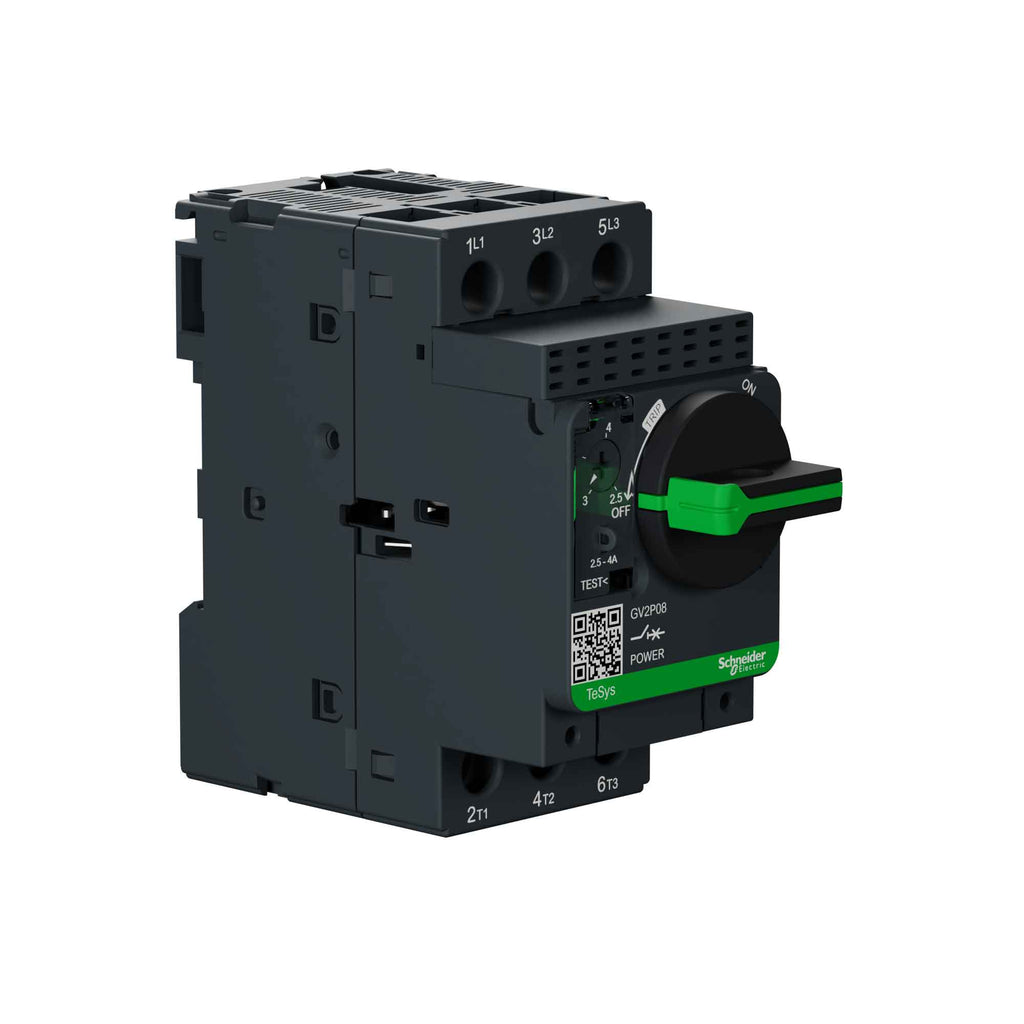

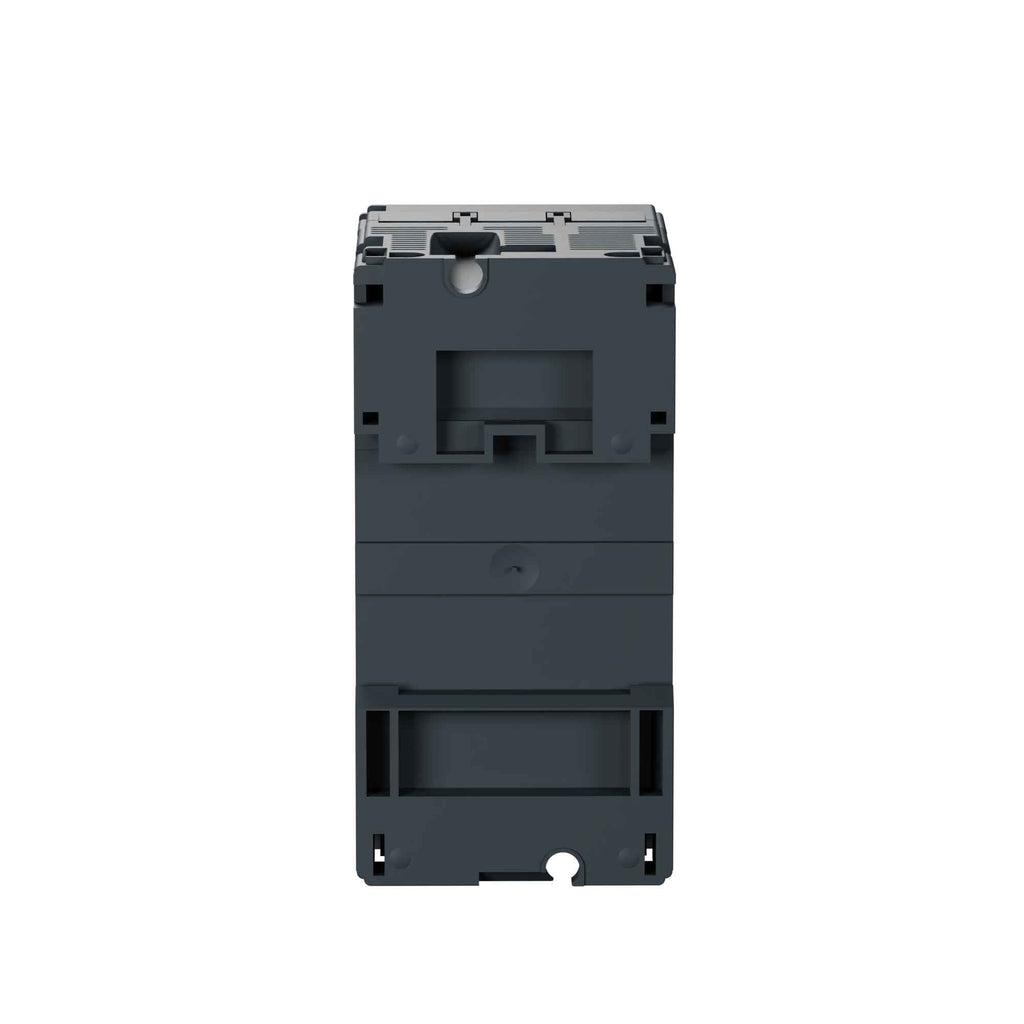

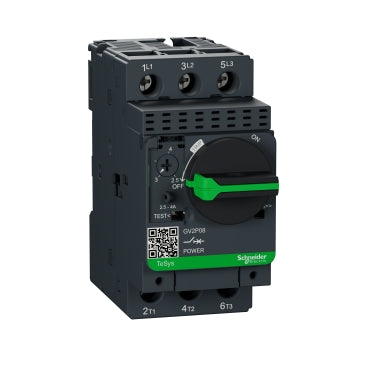

GV2P08 is a Square D TeSys GV2 manual motor starter providing thermal magnetic protection for motors with 3 poles and 4 amp rating at 690VAC.GV2P08 features a thermal magnetic trip unit, screw clamp terminals, and IP20 degree of protection. It supports motor control with manual rotary handle operation and is suitable for use with LC1D motor control systems. The starter offers a high breaking capacity of 100kA and complies with multiple certifications including CSA, UL, and IEC 60947-2.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Part Number: GV2P08
• Poles: 3
• Amperage: 4A (adjustable 2.5-4A)
• Voltage Rating: 690VAC (600V typical)
• Trip Unit: Thermal Magnetic
• Mounting Type: Manual motor starter with rotary handle
• Interrupt Rating: 100kA breaking capacity
• Terminals: Screw clamp
• Degree of Protection: IP20
• Certifications: CSA, UL, IEC 60947-2, RoHS compliant
• Series/Frame: TeSys GV2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2P08
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 2.5-4
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 3/4 hp HP @ 3 Phase - 240V 1 hp HP @ 3 Phase - 480V 2 hp
• Nema Rating : 00

Product Data

• UPC : 038911021347
• GTIN : 03389110213478
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 0.714
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
