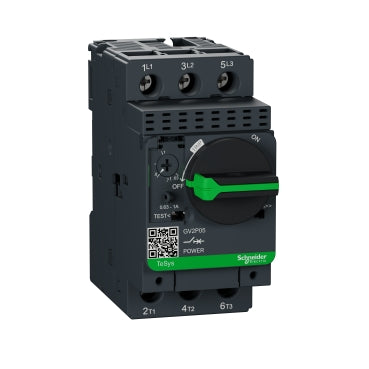

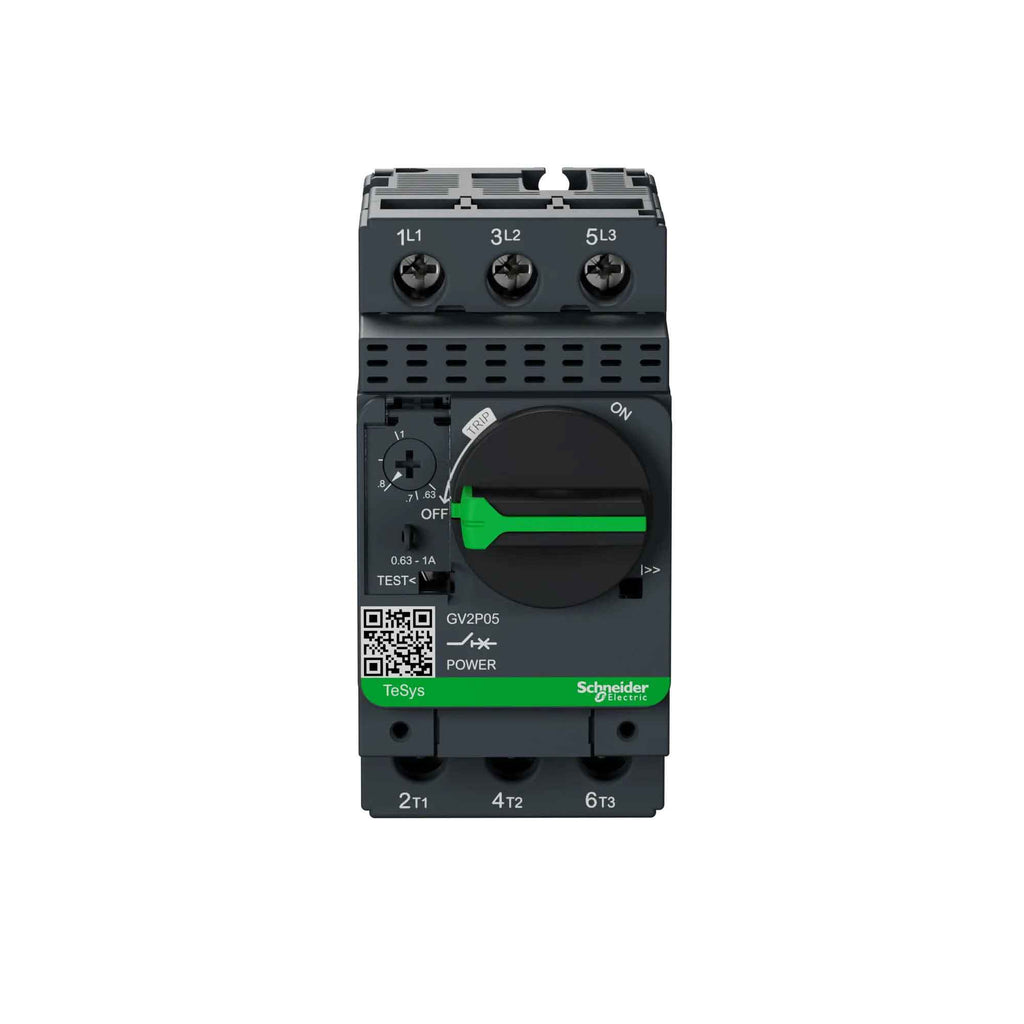

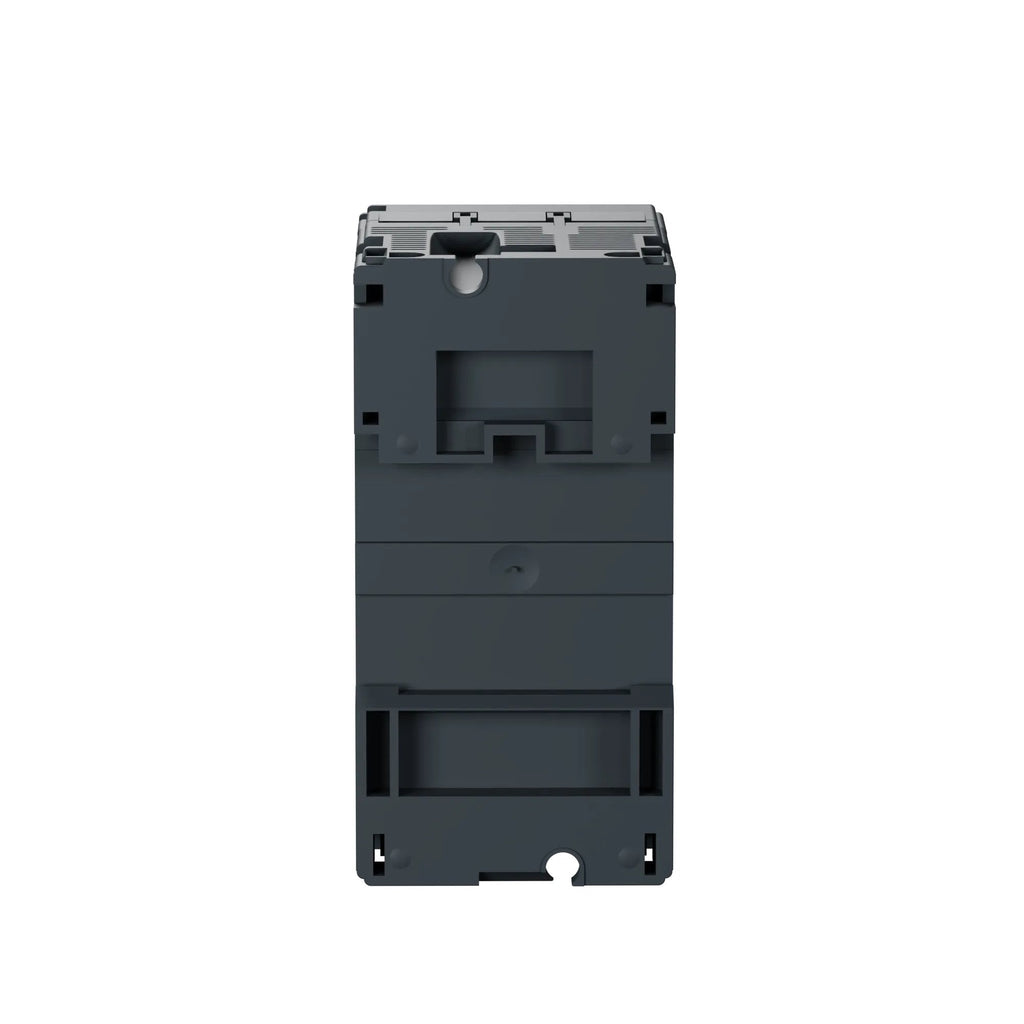

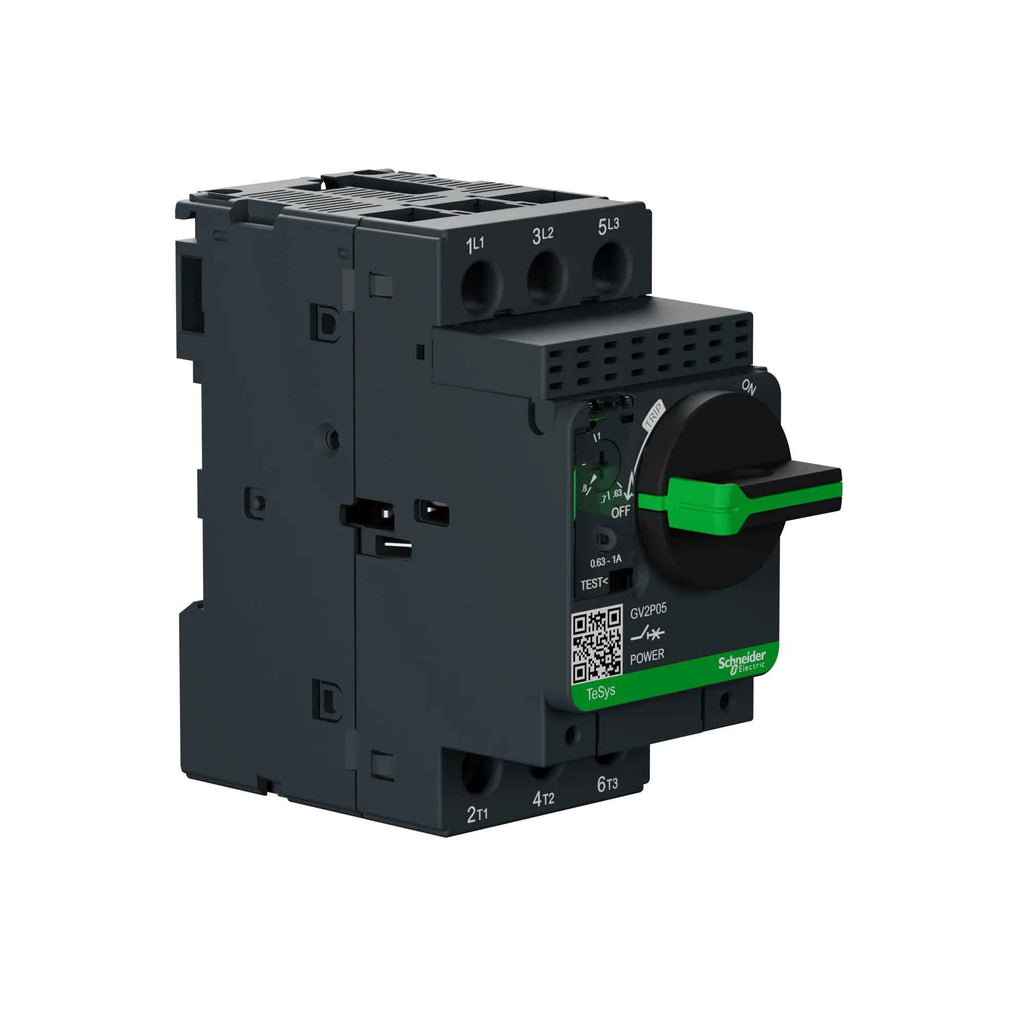

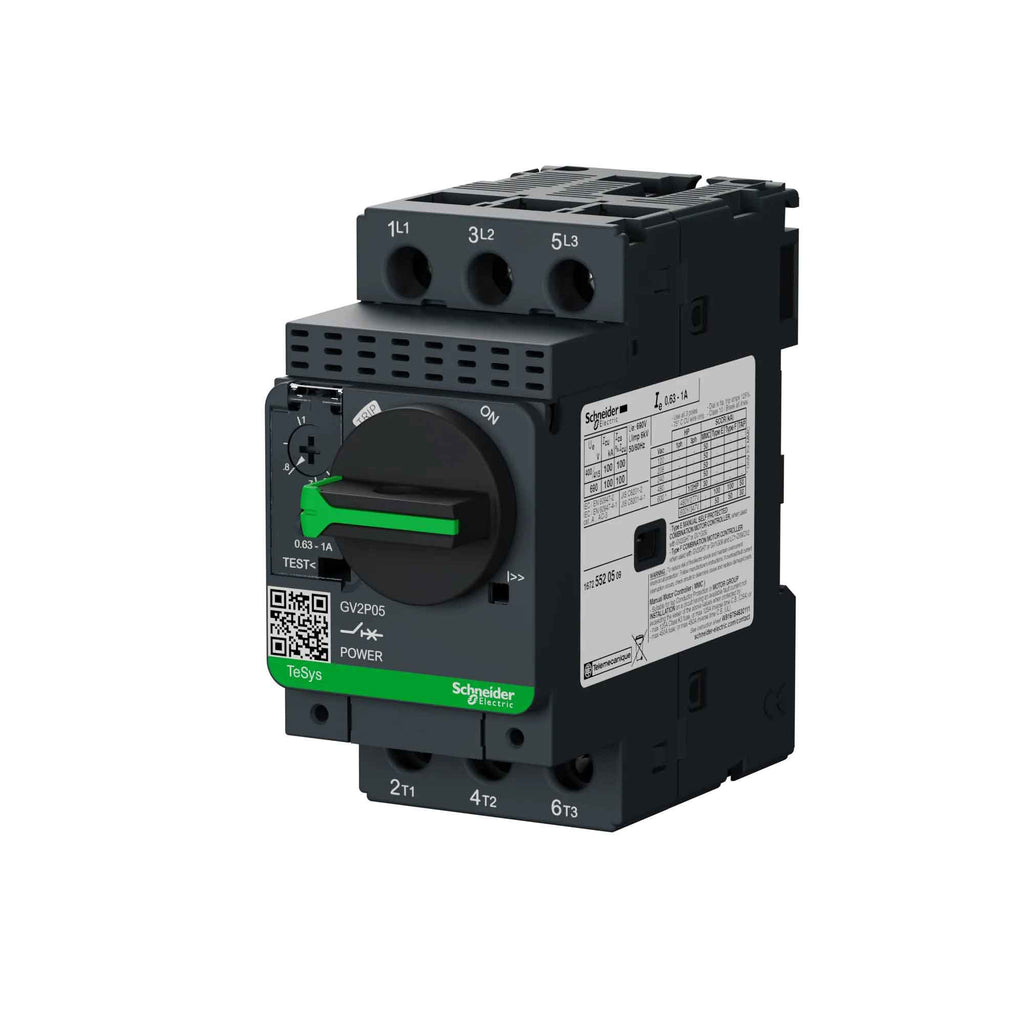

GV2P05 - Schneider Electric TeSys Deca 3P 0.63-1A 690V Thermal Magnetic Motor Circuit Breaker with Rotary Handle

GV2P05

GV2P05 is a 3-pole, 0.63-1A, 690V thermal magnetic motor circuit breaker from the Schneider Electric TeSys Deca series, designed for reliable motor protection and manual control. This device features a rotary handle for easy operation and screw clamp terminals for secure connections. The GV2P05 provides thermal-magnetic protection with a thermal setting range of 0.63-1A and a magnetic tripping current of 13A. It is suitable for use in motor control applications requiring high breaking capacity and DIN rail mounting. The rugged design ensures long-lasting performance in industrial environments.

• Part Number: GV2P05
• Manufacturer: Schneider Electric
• Series: TeSys Deca
• Poles: 3
• Rated Current: 0.63-1A
• Rated Voltage: 690V AC
• Mounting Type: DIN rail
• Interrupt Rating: 100 kA Icu @ 400V
• Terminal Type: Screw clamp
• Control Type: Rotary handle
• Protection Type: Thermal-magnetic
• Certifications: IEC 60947-2, IEC 60947-4-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2P05
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 1
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Nema Rating : 00

Product Data

• UPC : 038911021344
• GTIN : 03389110213447
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 0.578
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN, IEC, CCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
