GV2P04 - Square D 3-Pole 0.4-0.63A 600V Thermal-Magnetic Motor Circuit Breaker

GV2P04

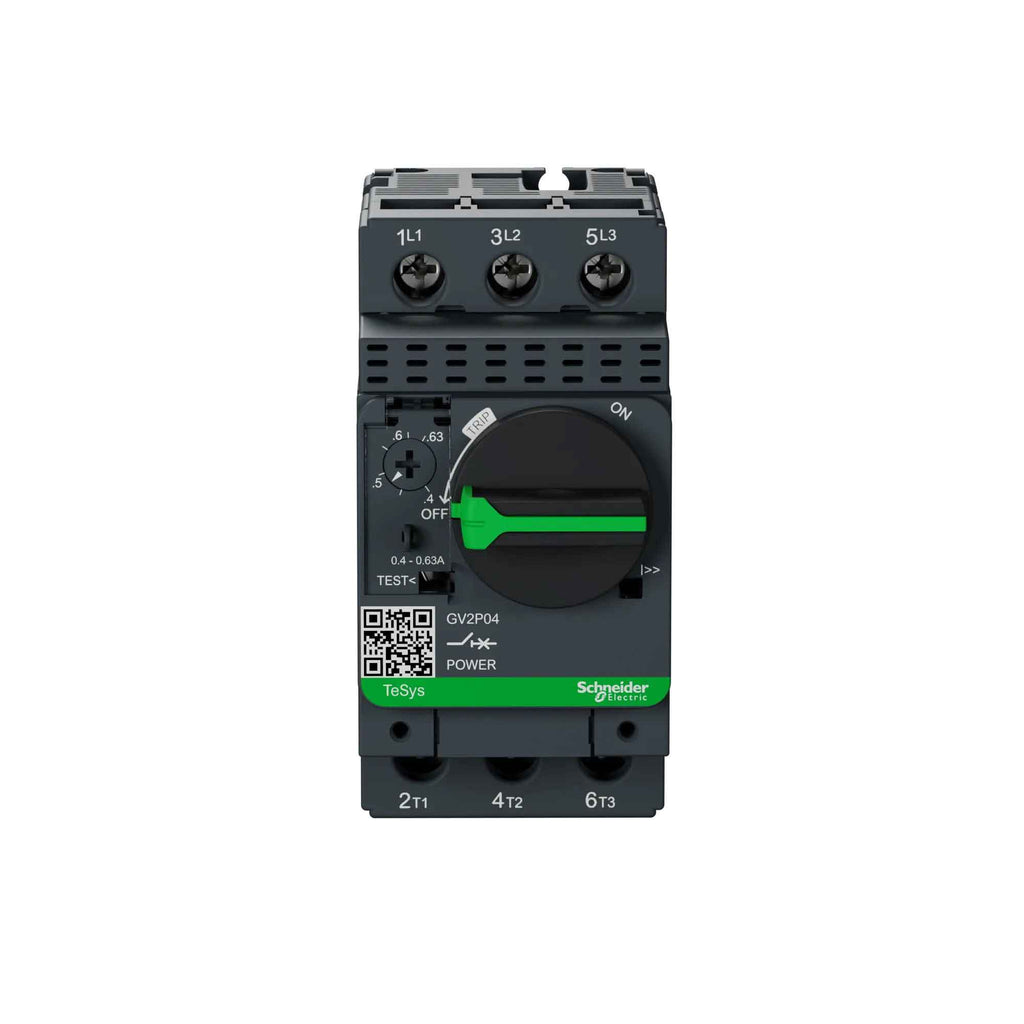

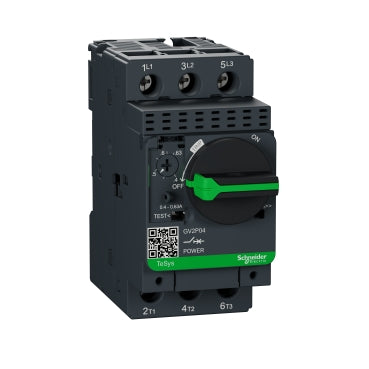

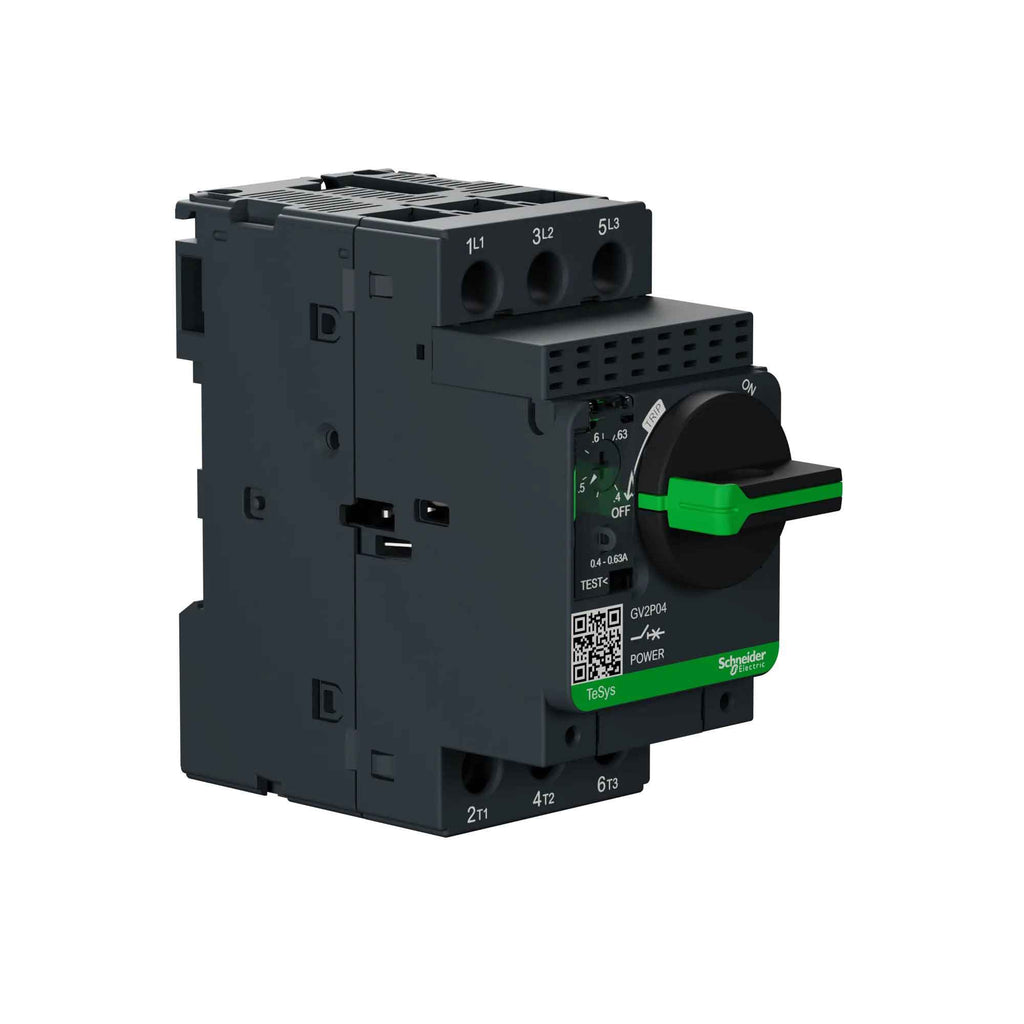

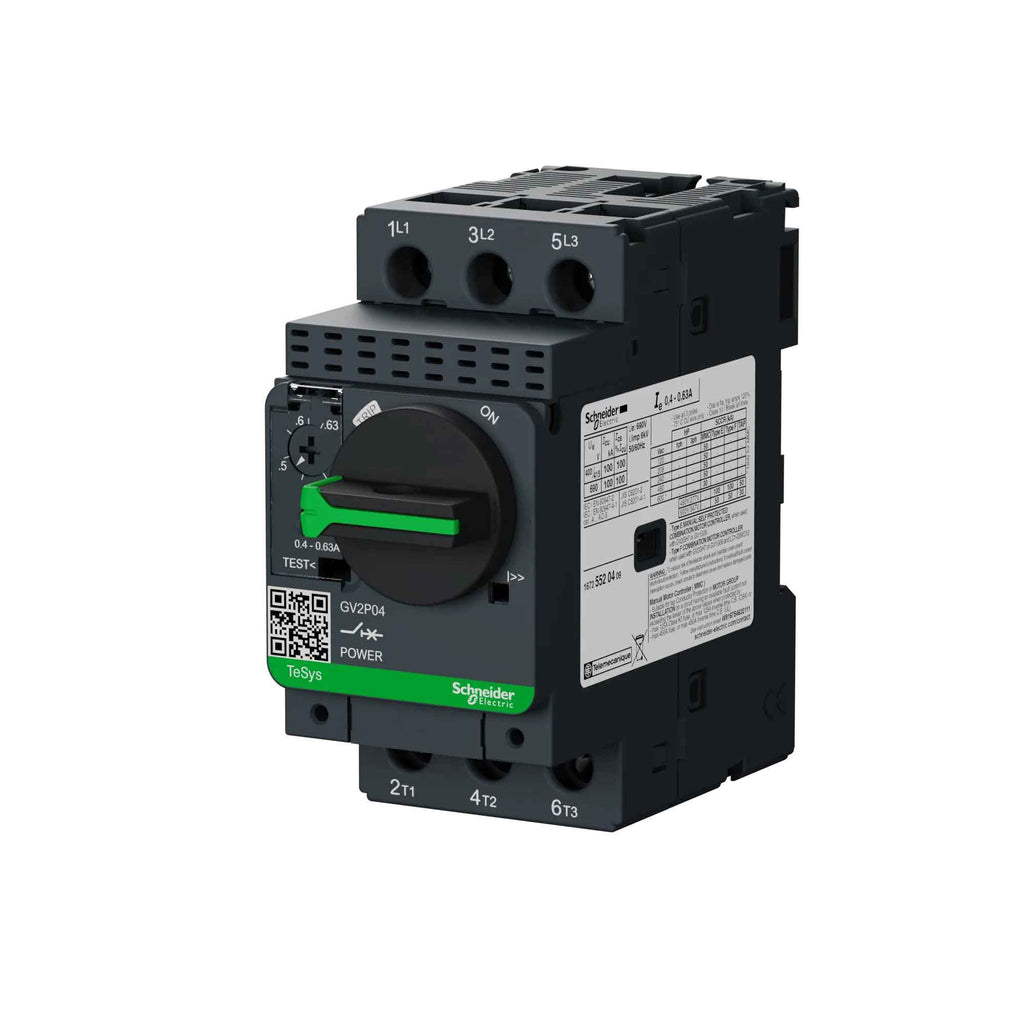

GV2P04 is a Square D 3-pole thermal-magnetic motor circuit breaker designed for motor protection applications up to 0.63 amps and 600 volts.GV2P04 features a thermal-magnetic trip unit with a current range of 0.4 to 0.63 A, suitable for 3-phase motor applications up to 0.18 kW at 400 V. It includes a rotary knob for manual start-stop control, rated for 100,000 AC-3 cycles, and offers a high breaking capacity of 100 kA at 400 V. The device mounts via clip-on 35 mm DIN rail or screws and complies with IEC, UL, CSA, and other international standards.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Part Number: GV2P04
• Poles: 3
• Current Rating: 0.4 to 0.63 A thermal-magnetic trip
• Voltage Rating: 600 V AC
• Motor Power: 0.12 to 0.18 kW at 400 V
• Mounting: Clip-on DIN rail or screw panel mount
• Breaking Capacity: 100 kA Icu at 400 V AC
• Control Type: Rotary knob manual start-stop
• Standards: IEC 60947-2, UL, CSA, CE, RoHS compliant
• Weight: Approx. 0.57 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2P04
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 0.63
• Phase : 3
• Poles : 3
• Nema Rating : 00

Product Data

• UPC : 038911021343
• GTIN : 03389110213430
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 0.578
• Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
