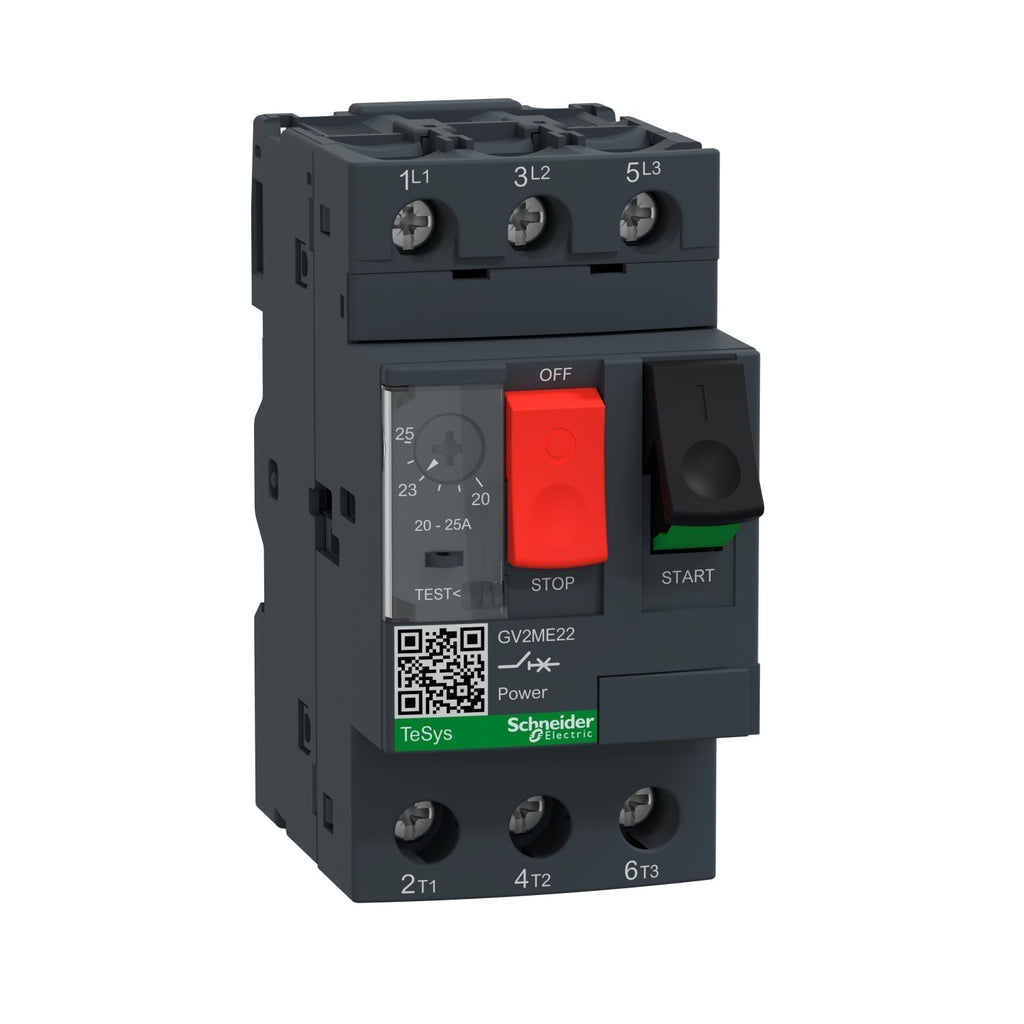

GV2ME22 - Square D 3-Pole Motor Starter 20-25A Thermal Magnetic 600VAC Screw Clamp Terminals

GV2ME22

This manual starter provides motor isolation, control, and overcurrent protection in one compact unit. It supports motor power ratings up to 11 kW at 400/415 V AC and 15 kW at 500 V AC, with a 50 kA interrupt rating at 230/240 V AC. The device features screw clamp terminals for secure wiring and complies with IEC 60947-2 standards. Its robust design includes EverLink terminals for reliable power connections and a modern ergonomic interface with push-button control.

Key Specifications
• Amperage: 20-25 A adjustable thermal magnetic trip
• Voltage: Up to 600 VAC
• Poles: 3-pole configuration
• Mounting Type: Panel mount
• Interrupt Rating: 50 kA at 230/240 V AC
• Series/Frame: TeSys Deca GV2
• Trip Unit: Thermal magnetic
• Control Type: Push-button
• Terminals: Screw clamp with EverLink technology
• Motor Power: 11 kW at 400/415 V AC, 15 kW at 500 V AC
• Certifications: IEC 60947-2 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: GV2ME22
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 15 hp
• Nema Rating : 00



Product Data

• UPC : 785901212034
• GTIN : 03389110343250
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
• Weight : 0.633
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
