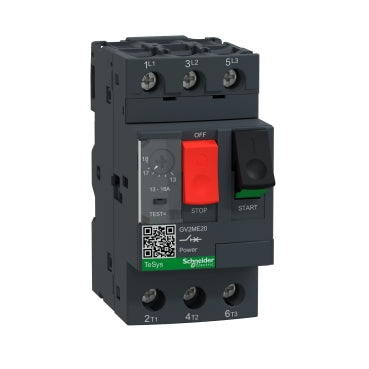

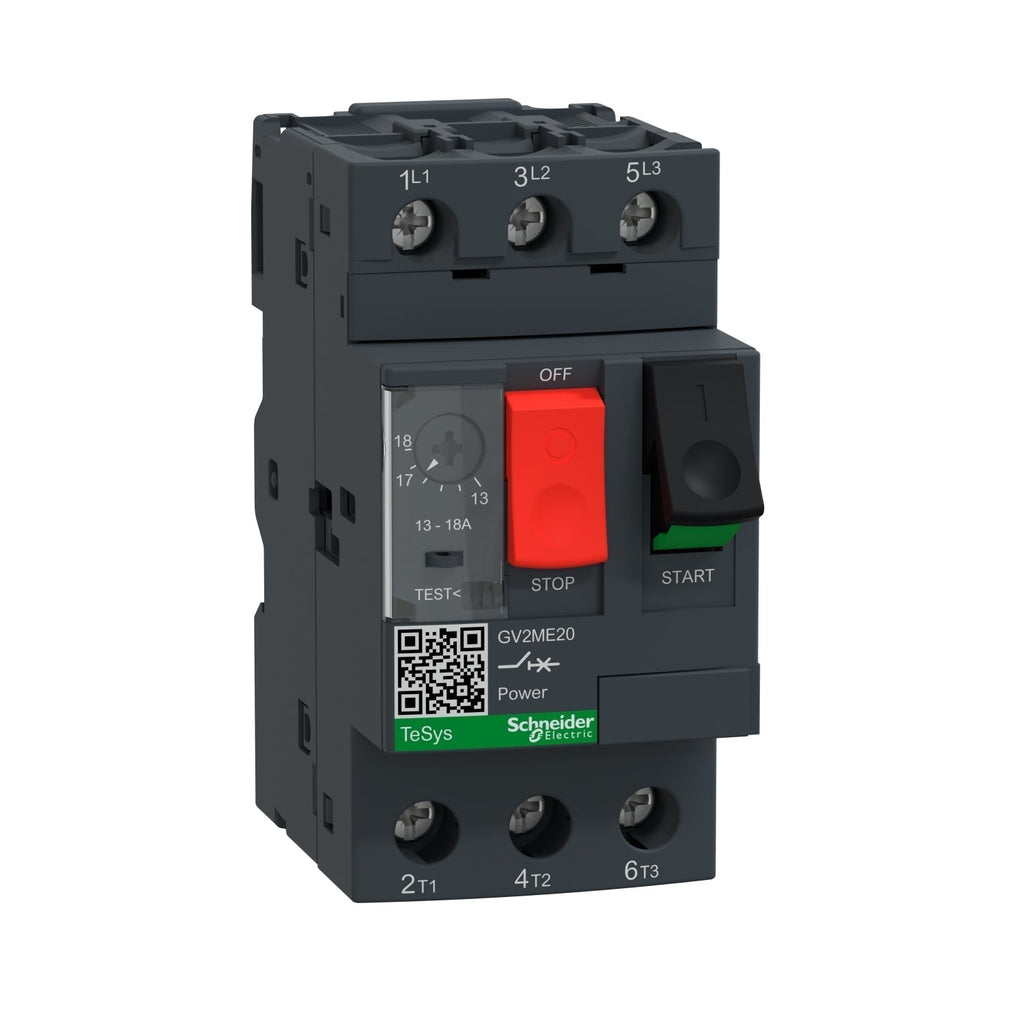

GV2ME20 - Schneider Electric 3 Pole Motor Circuit Breaker 13-18A 690VAC Thermal Magnetic Screw Clamp Terminals

GV2ME20

GV2ME20 is a Schneider Electric 3 pole motor circuit breaker designed for motor control and protection with a thermal-magnetic trip unit and screw clamp terminals.This TeSys Deca series manual starter provides adjustable thermal protection from 13 to 18 amps and operates at voltages up to 690VAC. It features a high interrupt rating of 15kA at 400V, magnetic tripping at 13 times the rated current, and sturdy EverLink terminals for reliable connections. The compact design ensures easy installation and operation with multi-standard screws.

• Manufacturer: Schneider Electric
• Part Number: GV2ME20
• Series/Frame: TeSys Deca GV2M
• Poles: 3 Pole
• Current Rating: 13-18 Amps (adjustable thermal)
• Voltage Rating: 690VAC
• Trip Unit: Thermal-magnetic
• Interrupt Rating: 15kA @ 400V
• Mounting Type: Manual starter with screw clamp terminals
• Connection Type: EverLink terminals
• Certifications: IEC compliant
• Environmental: Packaging made with recycled cardboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2ME20
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
• Nema Rating : 00

Product Data

• UPC : 785901211990
• GTIN : 03389110343199
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
• Weight : 0.624
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN/IEC, UL, CSA, CCC, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
