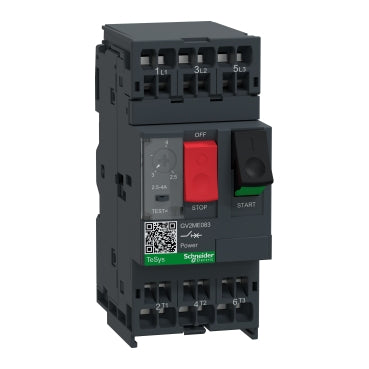

GV2ME083 - Schneider Electric 4A 690V 3-Pole Thermal-Magnetic Motor Circuit Breaker TeSys Deca

GV2ME083

GV2ME083 is a Schneider Electric TeSys Deca motor circuit breaker designed for 3-phase motor protection with thermal-magnetic trip unit.This 3-pole circuit breaker features a 4 ampere rating and operates at up to 690 volts AC at 50/60 Hz. It provides reliable thermal-magnetic protection with spring terminal connections and clip or bolt-on mounting options. The device conforms to IEC 60947-2 standards and is suitable for motor applications ranging from 1.1 to 1.5 kW at 400 V. It has an interrupt rating of 74 A and is RoHS compliant.

Key Specifications
• Amperage: 4 A (adjustable 2.5 to 4 A)
• Voltage: 690 V AC, 50/60 Hz
• Poles: 3
• Trip Unit: Thermal-Magnetic
• Mounting Type: Clip or Bolt-On
• Terminal Connection: Spring Terminals
• Interrupt Rating: 74 A
• Series/Frame: TeSys Deca
• Standards: IEC 60947-2
• RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GV2ME083
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Amperage : 2.5-4



Product Data

• UPC : 038911034643
• GTIN : 03389110346435
• Country of Origin : France
• Dimensions : 4.0 in (101 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
• Weight : 0.628
• Standards : EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40:Annex JJ, IEC/EN 60335-1:Clause 30.2
• Certification : EN/IEC 60947-2 || EN/IEC 60947-4-1
