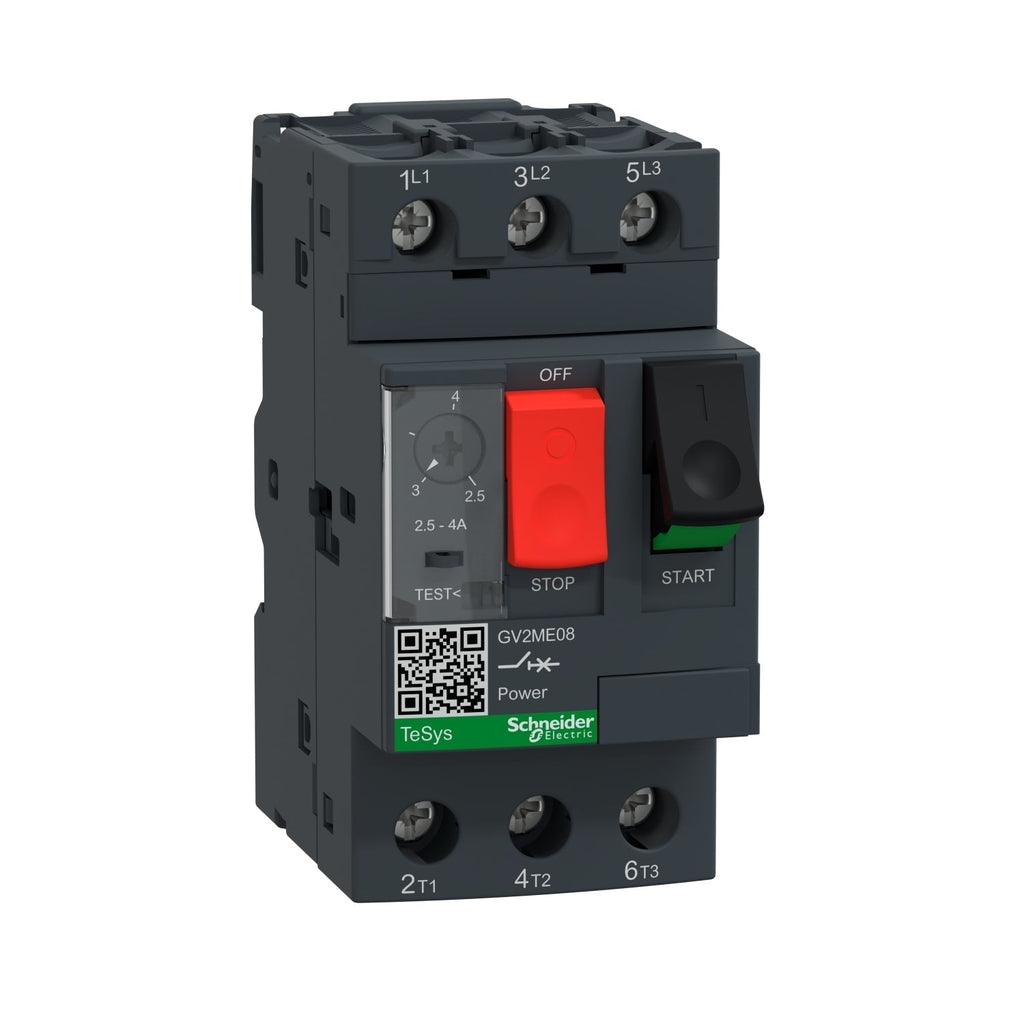

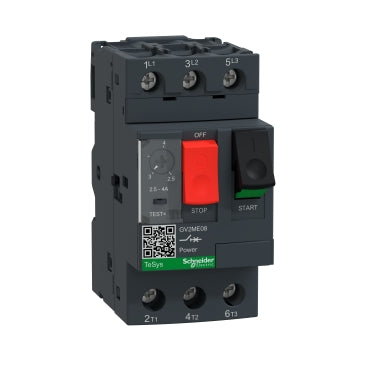

GV2ME08 - Square D 4 Amp 600 VAC 3-Pole Manual Motor Starter Thermal Magnetic

GV2ME08

GV2ME08 is a Square D 3-pole manual motor starter designed for motor control applications with thermal magnetic protection.This manual starter features a 4 amp adjustable trip range (2.5-4 A), 600 VAC voltage rating, and screw clamp terminals for secure wiring. It provides manual isolation, motor control, and overcurrent protection in one compact unit. The device conforms to IEC standards with an IP20 enclosure rating and includes push-button control. It supports thermal magnetic trip units with a magnetic trip current of 78 amps and is suitable for use in GV frame applications.

• Amperage: 4 A (adjustable 2.5-4 A)
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Panel mount (GV frame)
• Interrupt Rating: 100 kA Icu at 400/415 VAC
• Trip Unit: Thermal magnetic
• Enclosure Rating: IP20
• Control Type: Push-button
• Terminal Type: Screw clamp
• Certifications: IEC 60947-2 compliant
• Magnetic Trip Current: 78 A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GV2ME08
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : TeSys GV2
• Type : GV2
• Voltage : 600
• Amperage : 2.5-4
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 3/4 hp HP @ 3 Phase - 240V 1 hp HP @ 3 Phase - 480V 2 hp
• Nema Rating : 00

Product Data

• UPC : 785901211952
• GTIN : 03389110343090
• Country of Origin : Thailand
• Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
• Weight : 0.549
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
